Is Thhn dual rated as THWN

Made in the USA, THHN is UL listed with a rated 90° C in dry locations or 75° C in wet applications with a THWN rating. The majority of THHN wire carries a dual rating on the cable marked THHN / THWN for both the wet and dry temperature rating.

Is Southwire Thhn also THWN?

Southwire® SIMpull THHN® copper conductors are made with soft drawn copper. … Marked as THHN in all sizes. Also marked as THWN-2 in sizes 8 AWG and larger or marked as THWN in sizes 14, 12, and 10 AWG. Marked sunlight resistant in sizes 2 AWG and larger.

Is all Thhn wire dual rated?

THHN (Thermoplastic High Heat-resistant Nylon-coated) wire is designed with a PVC (polyvinyl chloride) insulated nylon sheath. Most THHN building wire comes with the dual rating THHN/THWN, meaning it is usable in both wet and dry conditions, as well as both indoor and outdoor use.

Is Romex Thhn or THWN?

What is Romex Wire? Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can’t be used outside because of its minimal PVC jacket protection.

Is THWN wire stranded or solid?

Sizes 8 AWG and larger are stranded. THWN-THHN-2 wire comes in a variety of 10 standard colors. Type THHN/THWN-2 building wire is intended for general-purpose applications as defined by the National Electrical Code (NEC). Type THHN/THWN-2 is permitted for new construction or rewiring for 600-volt applications.

What is THWN copper wire?

What is THWN Cable. THWN is a code for thermoplastic heat and water resistant which is suitable for use in both dry and wet locations with a maximum temperature rating of 75ºC (167ºF).

Is Thhn good for wet locations?

THHN wire is approved for up to 600V and is listed by Underwriters Laboratory (UL), as rated for 90° C (194° F) in dry and 75° C (167° F) in wet environments. THHN wire comes with a dual rating: THHN / THWN, which means it’s appropriate for both dry and wet applications.

What does THWN 2 mean?

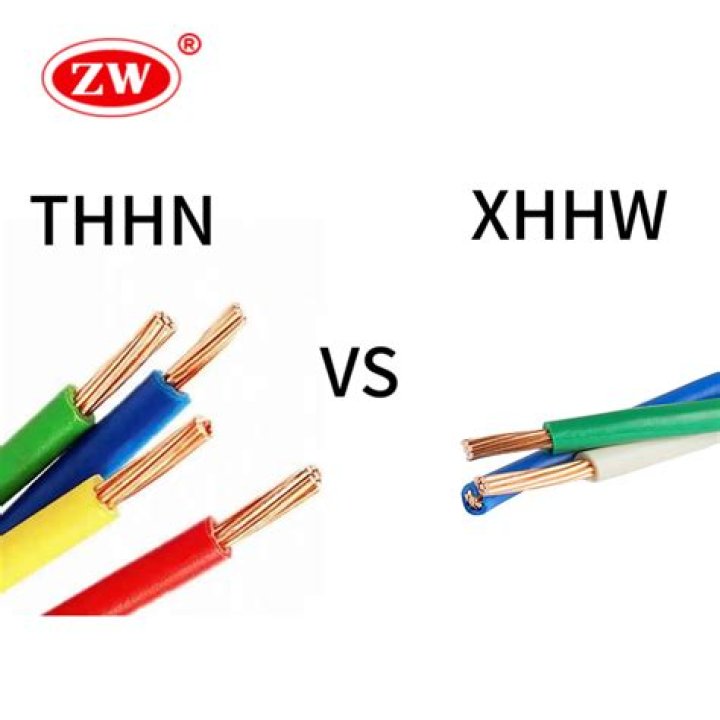

THHN/THWN-2:XHHW-2:T = ThermoplasticX = Cross-Linked Polyethylene (XLPE)HH = High Heat ResistantHH = High Heat ResistantW = Water ResistantW = Water ResistantN = Nylon Jacket(Not Required)

What is the difference between Romex and Thhn wire?

THHN is a heat resistant thermoplastic insulated conductor, usually a single conductor. Romex is a brand name for a nonmetallic sheathed cable, it has multiple conductors inside, the insulated ones are insulated with THHN insulation.

Can you use Thhn wire outside?

THHN is still the single conductor wire used outdoors and in conduit, because the THWN rating can resist water, oil, gases, and solvents.

Article first time published on

Can you use Romex wire in PVC conduit?

Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Does Thhn need to be in conduit?

generally do not need to be run in conduit. That depends on the jurisdiction in question. THHN wire is usually put into conduit for protection, but a lot of it is sold as ‘flexible non-metallic’ conduit, or more commonly, as Romex.

What is Thhn vs THWN?

THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. … THWN has a maximum temperature of 90°C in dry and wet locations, whereas THHN wire can only be used in temperatures as high as 75°C in wet locations.

Is THWN wire sunlight resistant?

Listed by UL as Type THHN or THWN per Standard 83, and as Type MTW per Standard 1063 (stranded items). … Listed by UL as Sunlight Resistant (1/0 AWG and larger, black only).

Can Thhn be buried in conduit?

THHN wire can be used in a conduit but is not rated for direct burial alone. Our 8 awg THHN is also THWN-2 dual rated which means this conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90° C or not to exceed 75°C in oil or coolants. It is rated for 40 amps @ 60°C.

Can THWN be submerged in water?

THWN is similar to THHN but is rated only for a maximum of 75 degrees C and it is suitable for wet locations.

Is Thhn moisture resistant?

THHN wire without a dual approval of THWN is not water-resistant. The water-resistance allowed it to be installed outdoors and in conduit when THHN wire could not. However, remember that they’re all combined into a universal wire now.

What type of wire is Thhn?

What is thhn wire? THHN is a thermoplastic high-heat-resistant, nylon-coated wire. It’s designed with a specific insulation material, temperature rating, and condition of use for electrical wire and cable.

What type of conduit is suitable for damp location?

EMT conduit is more affordable than IMC or GRC, but its thin walls are more easily punctured. It is most often used in dry interior spaces, but it can be used in damp locations with corrosion-resistant hardware and rain-tight fittings.

Where can Thhn be used?

With its 600v rating and conductive insulation, THHN building wire is usable for nearly all appliances such as hot water heaters and garbage disposals. THHN wire is water-resistant, so it can be used safely with appliances and in industrial environments.

What is the maximum operating temperature of a Thhn wire?

A conductor with Type THHN insulation is a common conductor used throughout the electrical industry. This conductor has a maximum operating temperature rating of 90°C, and, although it is in the 90°C column, it may not be permissible to use the ampacity shown in that column.

Can you use Thhn instead of Romex?

Romex® cables consist of these conductor wires bundled together. … This THHN ground means you can use this cable in conduit or outdoors because moisture cannot reach bare copper. The “MC” means “metal-clad” and refers to the aluminum jacket, which makes it easier to push the cable through conduit.

Is Romex wire stranded?

All wire sizes are available in stranded, however not all cabling styles are made with stranded wire (i.e. NM/Romex). Any sort of flexible cordage is only stranded.

What type of wiring is Romex?

Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC). NM and NMC conductors are composed of two or more insulated conductors contained in a non-metallic sheath.

Is THWN 2 rated for direct burial?

THHN and THWN-2 Copper Building Wire is only approved to be buried in conduct, as it lacks the characteristics that would make it eligible for direct burial. UF-B and USE-2 are the standard direct burial cables.

What is Thhn PVC?

Our Tray Cable (THHN-PVC) consists of a strong durable jacket rated for direct burial that is filled with multiple conductors of THHN wire. Being that it is rated for direct burial, you do not need a conduit. … THHN Copper Building Wire is also one single conductor.

What cable is suitable for outdoor use?

4.Is PVC Cable Suitable for Outdoors? Electrical cables are deemed suitable for outdoor use provided they have adequate protection against direct sunlight and other external extremities.

What kind of wire do you use for outdoor conduit?

Exposed or buried wiring must be listed for its application. (Type UF cable is the most commonly used nonmetallic cable for residential outdoor wiring runs.) UF cable can be direct buried (without conduit) with a minimum of 24 inches of cover.

Can Romex be exposed in garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

Can you run indoor wire outside in conduit?

It’s important that you follow National Electrical Code (NEC) rules when running an indoor wire through a conduit outdoors. You need to ensure that the conduit is buried deep enough within the ground: 24 in. … of cover for a PVC conduit, and 6 in. of cover for RMC and IMC conduits.

What type of wire is used for PVC conduit?

Use THHN With PVC Conduit THHN (thermoplastic high heat-resistant nylon-coated) is the best wire for pulling through PVC conduit. Other types of wire have a sticky rubber sheathing that makes them almost impossible to pull.
