Is perforated metal strong

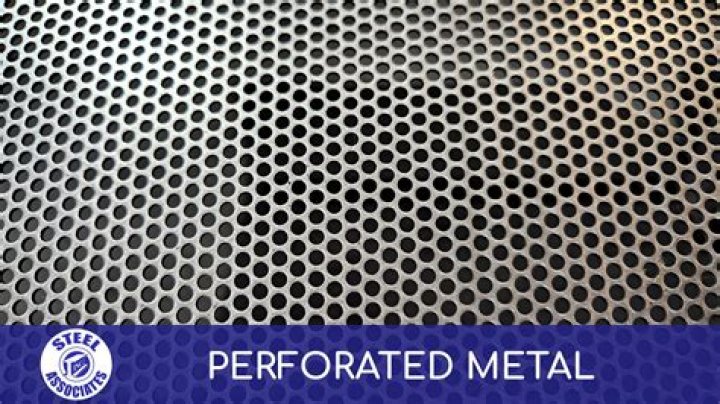

Perforated Metal Strength The strongest pattern for perforated metals is round holes that are staggered at 60o, which provides strength and a wide range of open area.

What is the metal with holes in it?

Round perforated metal is a sheet of material, such as perforated carbon steel, that contains holes punched by a circular die. Round perforated metal from Direct Metals is lightweight, versatile, economical, and customizable.

What is perforated metal cladding?

Cladding a building with perforated metal is a very effective way to enliven the facade of what would otherwise be a simple cubed structure. … Large perforations allow more natural light to pass through the cladding, but still protect buildings that have large glazed elements from direct sunlight.

How is perforated metal made?

The most common answer to the question, “how is perforated metal made?” is with a Punching Press. The majority of McNICHOLS® Perforated Metal is manufactured with a device called a Punching Press. Punch Press machines feature sharp perforation tools that can be customized to desired hole size and shape.

How do you perforate steel?

The most common method of perforating metal uses a rotary pinned perforation roller. This is a large cylinder with sharp, pointed needles on the outside to punch holes into the metal. As the sheet metal is run across the perforation roller, it rotates, continuously punching holes in the passing sheet.

What is perforated stainless steel?

Perforated stainless steel sheet is mainly made of 304 or 316 stainless steel sheet which is punched with a variety of hole patterns, including round, square, slot, diamond or your nominated hole shapes. … Perforated stainless steel sheet is suitable used for sunshade panels for high building and leisure place.

What is perforation process?

PetroWiki. Perforating is a process used to establish a flow path between the near reservoir and the wellbore. It normally involves initiating a hole from the wellbore through the casing and any cement sheath into the producing zone.

What is expanded metal used for?

Expanded metal is a type of sheet metal which has been cut and stretched to form a regular pattern (often diamond-shaped) of metal mesh-like material. It is commonly used for fences and grates, and as metallic lath to support plaster or stucco.

Is expanded metal expensive?

When it comes to cost, expanded metal tends to be the least costly, wire mesh usually falls in the middle, and sheet metal is the most expensive. … The reason sheet metal is the most expensive is because it requires the most raw material.

How do you perforate copper?

Due to the oils used during the perforation process, perforated copper will have discoloration. This does not compromise the quality of the material, AND it is not grounds for rejection of the product. 20 oz – 1/16″ on 3/32″ stagger – 44% OA. We will cut to your specifications.

Article first time published on

What is shaving in sheet metal?

In sheet metal cutting, the lower the clearance value the higher the edge’s quality. Shaving is a secondary process that can be used to improve edges of cuts that have already been made. Shaving uses very little clearance to perform a straight, smooth, accurate cut to only the end of the edge.

What is blanking in sheet metal?

Blanking is a metal production process, during which a metal workpiece is removed from the primary metal strip or sheet when it is punched. The material that is removed is the new metal workpiece or blank.

What is perforated façade?

Perforated facades not only let light into a building, they can project light outwards from a building. Installing lighting between the building and the façade allows for another form of creativity, branding, or simply to draw the eyes of those passing by.

What is façade glass?

Glass wrapping up the building exterior / envelope is called glass façade. Modern building designs and constructions use extensive amount of glass facades.

How is expanded steel made?

Expanded metal is produced by an expanding machine, which turns solid metal sheets and coils into an expanded metal mesh. The expanding machine is fitted with a knife which determines pattern for the mesh. … The slits created by the knife allow the metal to be stretched, which produces uniform holes.

What is a safe method of making a 10mm hole in sheet metal?

For small holes, a gentle finger-twist of a slightly larger-size twist drill over the hole is usually enough to break down any sharp edges. For the deburring of larger holes, a handheld deburring tool offers the quickest and easiest way to clean up jagged edges.

Why do we perforate?

A perforation in the context of oil wells refers to a hole punched in the casing or liner of an oil well to connect it to the reservoir. Creating a channel between the pay zone and the wellbore to cause oil and gas to flow to the wellbore easily. … The benefit of this strategy is greater control of the well.

What are the types of perforation?

• Round Hole Perforation.
• Square Hole Perforation.
• Slot Hole Perforation. Staggered Row Perforation. Straight Row Perforation.

What is a perforated wound?

A perforated wound is a hole or break that can occur to the body, its organs or organ membrane. Perforated wounds may be the result of blunt trauma, infection, puncture or erosion.

What is perforated wall?

pierced wall, perforated wall, screen wall A nonbearing masonry wall in which an ornamental pierced effect is achieved by alternating rectangular or shaped blocks with open spaces.

How do you measure perforated sheets?

Thickness is the measurement from the top surface to bottom surface of the material. Gauge is the most common measurement, but thickness can also be measured in fractional inches or millimeters. End pattern is the pattern of the perforations at the beginning and the end of the sheet.

Will expanded metal rust?

Expanded metal will not never rust. If the environment is bad, expanded metal will also rust, but the probability of rusting is relatively small. Generally, expanded metal will rust. It can still be used, as long as the rust is removed.

Why is it called expanded metal?

Often referred to as raised expanded metal, due to the alternating ridges formed by overlapping metal strips. Flattened Expanded Sheet: A standard expanded sheet that is then cold rolled, leaving a flat, smooth surface.

Can you cook on expanded metal?

Frequently, Expanded Metal is found installed as a grill grate where you place the food for cooking. Not only does Expanded provide a functional cooking surface, but it also creates beautiful grill marks without having to turn your food.

What is diamond mesh?

Diamond mesh is a kind of mesh with diamond mesh opening. According to production processes, diamond mesh can be divided into: woven diamond mesh (that is chain link fence) and expanded diamond mesh. … Chain Link Fence is made of high quality galvanized wire, PVC wire or stainless steel wire.

How thick is 9 gauge expanded metal?

ApplicationEnclosure, Protection & SupportMaterialSteelOpening Size0.563″ x 1.688″Overall Length4 ftOverall Thickness0.120″

Is 412 a standard?

IS 412: Expanded Metal Steel Sheets for General Purposes : Bureau of Indian Standards : Free Download, Borrow, and Streaming : Internet Archive.

What causes spring back?

Springback occurs when the material angularly tries to return to its original shape after being bent. When fabricating on the press brake, an operator will overbend to the bending angle, which is angularly past the required bent angle, compensating for the springback.

Is the cutting operation of metal where punched part is called as blanked?

Blanking & Fine Blanking Operation Blanking is the process of cutting out a predefined shape from the sheet metal; the part that is punched out is known as the blank and is the required product, the metal left behind is waste.

What is punching in sheet metal?

Sheet metal punching is a cutting process in which material is removed from a piece of sheet metal by applying a great enough shearing force. CNC Punching can be used to produce holes and cutouts of various shapes and sizes. … The die, located underneath the sheet, has a cutout in the shape of the desired feature.

What is the difference between punching and piercing?

Piercing is used to create holes in raw metal by piercing it with a tool. Punching uses a machine to create metal objects in specific shapes using a die.
