Is my door a fire door

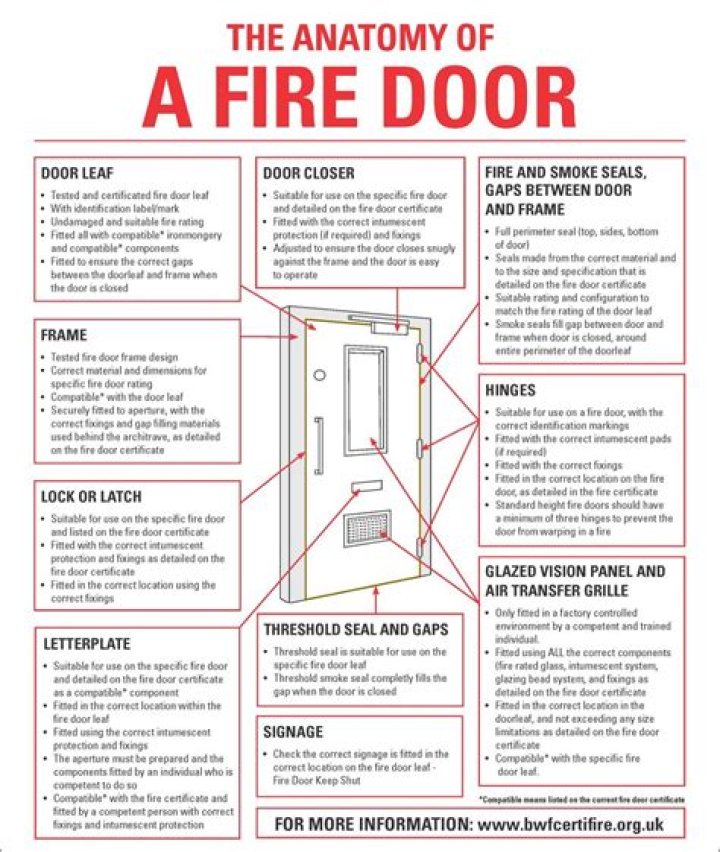

There are several ways that a fire door can be identified. The first and most prominent way is to look at the edge of the door on the hinge side. All fire doors will have a metal identification tag (figure 1) . Sometimes this tag is painted over, but it will still be recognizable as an identification tag.

How do you tell if my door is a fire door?

Certification. The most reliable way to identify a fire door is to look for its certification label. All JELD-WEN fire doors will have a certification label on the top edge of the door leaf.

What makes a door a fire door?

Fire doors are given a fire-resistance rating, and are usually made of a combination of glass, gypsum, steel, timber and aluminium. They are designed to be kept closed, and any gaps between the wall and the door must be filled with a fire resistant sealant.

How can you tell if a door is fire-rated?

1. Start by looking on the hinge side of the door. …
2. On wood doors, the fire label can be on the hinge side or top of the door.
3. Over time, the label may get painted over (see image to the side), so check carefully for any raised surfaces.

What is considered a fire door?

A fire-rated door — or fire-resistant door — is specially constructed to slow or prevent the spread of fire and smoke, according to Ken Canziani, Senior Fire Investigator at EFI Global in Sacramento, CA. “A fire-rated door is a very heavy door made of materials like metal or gypsum,” Canziani explains.

What gap are you allowed under a fire door?

Gaps between fire doors and the door frame should never be more than 4mm or less than 2mm. It’s recommended to aim for a 3mm gap to ensure adequate room for the intumescent strips to activate in the event of a fire, and for the smoke seal strips (if installed) to not get damaged by the opening and closing of the door.

Do fire doors need to be Labelled?

Firstly, it’s important to make a simple check that your door is in fact a certified fire door. To do this, look for a label or the appropriate markings that show the fire door is certified. … A BWF label should never be removed, so if your door is missing a label, the likelihood is that it’s not certified.

Are all exterior doors fire rated?

No, typically exterior doors are not fire rated, though they can be. There are a few instances that require an exterior door to be fire rated with the most common being located near an adjacent building or property line.

Are all steel entry doors fire rated?

Are All Steel Doors Fire Rated? Yes, but just because a steel door is “rated” means that it meets your local code standard.

What makes a door fire resistant?

Standards for fire-rated doors Fire-rated glass may contain wire mesh glass, liquid sodium silicate, ceramic glass or borosilicate glass. Wired glass typically withstands the fire. The sodium silicate liquid acts to insulate heat transfer.

Article first time published on

What is the difference between a normal door and a fire door?

Rather than extinguish the flames, fire doors have a dual role – to slow the spread of the flames by acting as a barrier to other rooms, and also to provide a means of escape if necessary for any people still in the building.

Can you make a normal door a fire door?

Ever wondered how to upgrade a normal door into a fire door? … Most modern, normal internal doors cannot be upgraded to achieve 30 or 60 minutes Fire Resistance due to them having a hollow core, being very thin or lightweight and liable to warping shortly after installation.

Does a fire door have to be self closing?

According to ADB volume 2, a self closing device is required on a fire door if: subdividing escape routes to separate two or more storey exits. … doors opening onto external escape stairs.

What is an internal fire door?

Internal fire doors consist of a solid-core construction made up of particleboard, chipboard and/or solid wood timber. Another important part is the intumescent seal which is situated around the edges of the door.

Where fire doors are required?

A fire door is always required in buildings other than dwellings, such as offices, factories, etc. In these cases, access to protected corridors which are used as a means of escape must be protected from fire by the use of fire doors.

Do internal doors in flats need to be fire doors?

Internal doors do not need to be fire doors if the flats are on the ground floor or less than 4.5 metres above the ground, providing the habitable rooms have a means of escape, such as a terrace or a window.

Where are fire doors required in a house?

Ninety-minute fire doors are required in two-hour rated wall openings to stairwells, elevator rooms or egress through a building. Ninety-minute doors are also used in exterior openings where there is a potential for severe fire exposure from outside.

Do fire doors stop smoke?

Fire doors have two important functions in a fire; when closed they form a barrier to stop the spread of fire and when opened they provide a means of escape. A well designed timber fire door will delay the spread of fire and smoke without causing too much hindrance to the movement of people and goods.

Do all fire doors require intumescent strips?

It is generally accepted that to provide the required level of fire resistance, all fire doors should be reinforced with either intumescent strips, cold smoke seals or a combination of both.

Do metal fire doors need intumescent strips?

Resolution: Intumescent seals or gaskets are not required on fire rated steel doors. Generally speaking, the requirement for intumescent seals or gaskets are a function of the individual manufacturers’ listing. Intumescent products are typically used for a smoke and fire barrier on wood doors and are activated by heat.

Is a steel door a fire door?

LevelHeavy Duty, SDI Level 2 – 18-Gauge Steel Face Sheets – (16 Ga. Available)Door Thickness1-3/4″ Standard

Are all steel doors fire doors?

The short answer is yes, all steel commercial doors are fire-rated. Fire-rated means that they are resistant to smoke and fire, so they meet the minimum standard for fire resistance. But, tolerance varies among types of commercial steel doors.

Can a glass door be fire-rated?

Clear fire glass door options The three remaining options, tempered fire glass, ceramic fire glass and intumescent laminated fire glass all offer clear-glass solutions for fire-rated doors. … It can handle 425°C changes in temperature, can be tinted, clear or mirrored and can have a fire rating up to 180 minutes.

What is the code for exterior doors?

According to ADA standards, all exterior doors must measure at least 32 inches wide when opened to 90 degrees. The threshold height can be no higher than 3/4 inch, and hardware must be placed at no higher than 48 inches above the finished floor.

Can a solid wood door be fire-rated?

Older doors will be made up of solid wood rails and stiles with thin wood panels in between. … This type of door can meet the test for fire ratings up to one hour according to NFPA 252 and is frequently used in fire-rated assemblies in residential and business occupancies.

Does a garage entry door need to be fire-rated?

5.1 of the 2018 edition of the International Residential Code (IRC). A garage entry door to the house has to be fire-rated as per the code. The objective is to prevent any fire in the garage from spreading to the house.

What should you never do to a fire door?

1. Never lock a fire door. …
2. Never leave a fire door wedged open. …
3. Never allow a fire door to be blocked. …
4. Enfield Doors.

Can fire doors be hollow?

Fire Door Construction Wooden fire doors are typically around 44mm (FD30) or 54mm (FD60) thick. Internally they are constructed either from a solid core – usually particleboard, chipboard, or timber – or with a hollow core design.

Can fire doors be painted?

You can paint fire doors using regular decorative paint or varnish without damaging their performance. Avoid using heat or chemical paint strippers if the intumescent seals are in place. Also avoid painting over any hinges, hardware or seals. There is no need to compromise on style and decoration with fire doors.

When should fire doors be replaced?

Glass a in fire door: if there are any cracks in a glass panel, it should be replaced, as this seriously affects the fire rating and protection of a fire door. Fire door seals: if intumescent seals and smoke seals are not fitted correctly, or if they are damaged, they need replacing.

Can a panel door be a fire door?

Panelled fire doors combine fire safety with the fresh style of panelling. Whether you’re after a traditional. When installed with fire rated hardware, panelled fire doors with an FD30 rating will prevent fire from advancing past a closed door for 30 minutes.
