Is Ethernet a layer 2 or 3

Ethernet, Token Ring, and Frame Relay are all examples of Data Link layer or Layer 2 protocols. Traditional Ethernet switches operate at the Data Link layer and are con- cerned with forwarding packets based on the Layer 2 addressing scheme.

Is Ethernet a layer 1 or 2?

Ethernet operates in the lower two layers of the OSI model: the Data Link layer and the Physical layer.

What is layer 2 Ethernet switch?

A layer 2 switch is a type of network switch or device that works on the data link layer (OSI Layer 2) and utilizes MAC Address to determine the path through where the frames are to be forwarded. It uses hardware based switching techniques to connect and transmit data in a local area network (LAN).

What layer is the Ethernet on?

Ethernet is a layer 2 data link protocol that is widely used with the TCP/IP protocol, which resides at layers 3 and 4. To understand network communications, it is essential to learn about the protocol layers (see OSI model).

Is Ethernet a Layer 3?

Layer 2 of the OSI model is known as the data link layer. The Layer 2 protocol you’re likely most familiar with is Ethernet. … Layer 3 is the network layer and its protocol is the Internet Protocol or IP.

What is the range of Ethernet?

A standard 8P8C (often called RJ45) connector used most commonly on category 5 cable, one of the types of cabling used in Ethernet networksMaximum distance100 m (328 ft) over twisted pair, up to 100 km over optical fiberMode of operationdifferential (balanced), optical, single-ended

Are routers Layer 2 or 3?

The most common Layer 3 device used in a network is the router. A router is able to look into the Layer 3 portion of traffic passing through it (the source and destination IP addresses) to decide how it should pass that traffic along.

What layer is router?

Layer 3, the network layer, is most commonly known as the layer where routing takes place. A router’s main job is to get packets from one network to another. Layer 3 protocols and technologies allow for network-to-network communications.

Is Ethernet digital or analog?

If Ethernet cable is being used to connect Ethernet ports together, it is digital. If Ethernet cable is being used to send telephone conversations through your house, it is analog.

Is Ethernet a TCP or UDP?

EtherNet/IP makes use of TCP port number 44818 for explicit messaging and UDP port number 2222 for implicit messaging.

Article first time published on

Is Ethernet a digital signal?

Inside an ethernet cable are various copper wires that are used to transmit data and information between the two devices by using analog/digital signals. These cables are used to connect multiple devices and creating or connecting devices to both Local Area Networks (LAN) and Wide Area Networks (WAN).

Is Ethernet a differential?

Differential signaling To understand why Ethernet cable is built the way it is, it requires familiarity with how the signals are transmitted over the wires. The fancy term is differential signaling. During a digital pulse, each wire in the pair carries a signal that is the same voltage, but opposite polarity.

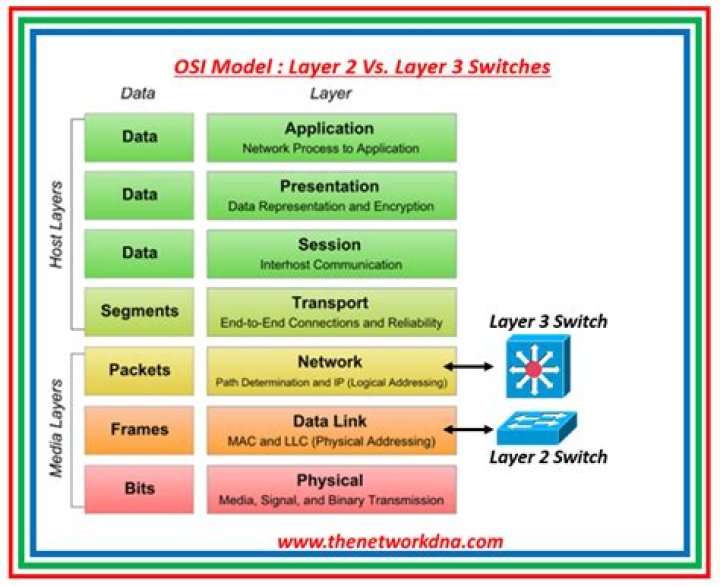

What is difference between Layer 2 and Layer 3?

Generally speaking, Layer 2 is a broadcast Media Access Control (MAC) MAC level network, while Layer 3 is a segmented routing over internet protocol (IP) network.

What is the difference between l3 and L2 switch?

The layer 2 and Layer 3 differs mainly in the routing function. A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. Layer 3 switch, or multilayer switch, can do all the job of a layer 2 switch and additional static routing and dynamic routing as well.

Do Layer 2 addresses cross the router to other networks?

This reduces the L2 complexity of the client access layer, which makes the network more reliable and easier to manage. Yes. Link-local addresses, much like MAC addresses, do not cross a router, so the scope to which duplicate addresses can cause a problem is quite limited.

Are there Layer 4 switches?

A layer 4 switch is among the types of multilayer switches, and is an enhancement to the layer 3 switch that uses hardware based switching techniques. A layer 4 switch is also known as session switch.

Is SSL a Layer 4 protocol?

The final protocol we’ll look at in this chapter is neither a Layer 4 transport protocol nor an Application layer protocol, but one that sits between these layers to provide security services to many modern Internet applications.

What is L2 and L3?

Commonly known as L2/L3 device or multi-layer switch (L2 = Ethernet, L3 = IP). To simply put it, an L3 switch is a combination of an Ethernet switch and IP router.

Is a router considered a Layer 2 device?

Think of them as functions. Routing is a layer 3 function. Packet switching is a layer 2 function. If a router can packet switch as well as route, it is a layer 2 and layer 3 device.

Is VLAN a Layer 2?

VLANs are data link layer (OSI layer 2) constructs, analogous to Internet Protocol (IP) subnets, which are network layer (OSI layer 3) constructs. In an environment employing VLANs, a one-to-one relationship often exists between VLANs and IP subnets, although it is possible to have multiple subnets on one VLAN.

Is a router layer 4?

Layer 4 load balancer The router operates on the transport layer and makes decisions on where to send the packets. Modern load balancing routers can use different rules to make decisions on where to route traffic.

Do Ethernet couplers degrade signal?

Almost certainly yes. The coupler introduces more contact points where a bad connection can be made, more crimping points where a bad connection can be made and if you have Shielded Twisted Pair (STP) cabled it reduces the amount of shielding for a small segment of the cable.

How far can ethernet cable run?

Ethernet – 100 meters (328 feet) There are a few different versions of ethernet cable, but they all have a maximum distance of 100 meters (328 feet).

Do long Ethernet cables reduce speed?

An ethernet cable does not reduce speed. The maximum length of the cable is 328 ft, so the cable length cannot cause significant delays. However, if you use a cable that is longer than 328 ft, your network will be weak and will reduce the overall reliability and speed of your network connection.

Is Ethernet an industrial?

Industrial Ethernet (IE) is the use of Ethernet in an industrial environment with protocols that provide determinism and real-time control.

What goes through an Ethernet cable?

An Ethernet cable carries the broadband signals between your modem, router, computer and other wired internet-capable devices. Cat 5e and Cat 6e (or higher) Ethernet cables are recommended for higher speeds.

What is an Ethernet signal?

Ethernet is the traditional technology for connecting devices in a wired local area network (LAN) or wide area network (WAN). It enables devices to communicate with each other via a protocol, which is a set of rules or common network language.

Is router layer 3 or 4?

Router: For Different Networks & Protocols A router can forward traffic (packets) based on layer 3 information using IP address. This allows the network to go across different Protocols. Routers also serve as the first line security that protecting the network from any attack and intrusion.

Which 3 layers does a router have?

• Layer 1 (Network Access): Also called the Link or Network Interface layer. …
• Layer 2 (Internet): This layer is similar to the OSI model’s L3.
• Layer 3 (Transport): Also called the Host-to-Host layer.

Do I need a router if I have a layer 3 switch?

All in all, it is not recommended to replace a router with layer 3 switch, but you can apply them in the same network at the same time. … However, those switches are costly, and most layer 3 switches just have Ethernet ports. In this way, a dedicated router is cost-effective than a layer 3 switch.

Is Ethernet IP broadcast?

Broadcast messages are common on Ethernet networks that carry the TCP/IP protocol because Ethernet broadcast messages are used by TCP/IP for address resolution. However, broadcast traffic represents a small percentage of network traffic on a network that is properly configured and operating normally.
