Is Cat 6 the same as Cat 5

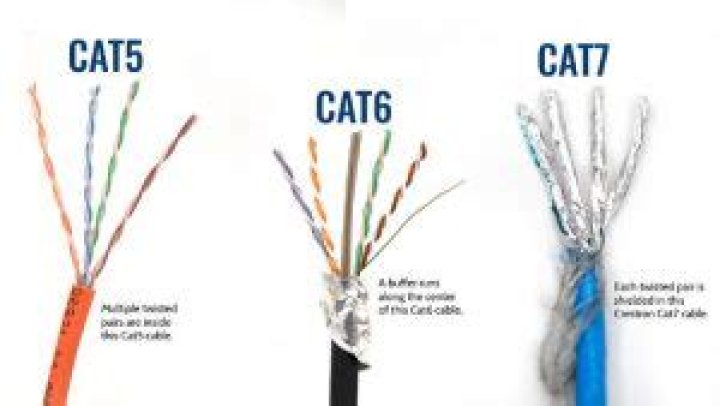

Compared to Cat5/5e cables, Cat6 cables have stricter performance specifications and significant higher data transfer speeds at greater distances. They are more tightly wound than Cat5 cables, and the cable conductors and cable sheath are thicker as well.

Do Cat6 cables work with Cat5?

CAT6 is a standardised twisted pair cable for Ethernet that is backward compatible with CAT5/5e and CAT3 cable standards. Like CAT5e, CAT6 cables support Gigabit Ethernet segments up to 100 m, but they also allow for use in 10-Gigabit networks over a limited distance.

Are CAT 5 and Cat6 connectors the same size?

Cat6 connectors are designed to accommodate much larger cable diameters than Cat5e, so most cables should fit — but check the numbers. … Cat6 connectors are designed for 24 and 23 AWG conductor wire sizes, and less can be problematic.

Are CAT 5 and Cat6 ports the same?

Cat 5 and Cat 6 Ethernet connectors are both RJ-45 connectors, but they have different specifications. A Cat 5 connector can handle up to 100 Mbps, while a Cat 6 connector can handle up to 1 Gbps. Cat 6 connectors also have more shielding than Cat 5 connectors, which helps to reduce noise and crosstalk.

What is the difference between Cat5 and Cat5e?

The difference between Cat5 and Cat5e is that the Cat5e has a higher throughput speed of 1,000 Mbit / s. Also called Gbit / s. This is 10 times faster than the throughput speed of a Cat5 cable. … All systems that work with a Cat5 cable therefore also work with a Cat5e cable.

Is Cat6 better than Cat 5e?

Cat 6 is cable that’s more reliable at higher speeds than Cat 5 or Cat 5e. … Cat 5e cable is enhanced to reduce interference so that it can reliably deliver gigabit speeds. However, Gigabit Ethernet still pushes the cable to its limits.

Can I use Cat5 instead of Cat7?

The Cat 7 cable is compatible with the Cat 6, Cat 5, and Cat 5 cable categories. It offers 90/100m 4-connector channels using shielded cabling and is designed to transmit signals at frequencies up to 600MHz. … This way it allows the user to get maximum speed even with long cables.

Can I use Cat5e instead of Cat5?

Cat5e cable is completely backwards compatible with Cat5, and can be used in any application in which you would normally use Cat5 cable. However, the added specifications of Cat5e enable it to support Gigabit Ethernet (1000BASE-T), or networks running at 1000 Mbps.

What's the difference between Cat5 Cat6 and Cat 7 Ethernet cables?

Cat5e – Has a speed up to 1.000 Mbit/s, 100MHz. Cat6 – Has a speed up to 1.000 Mbit/s, 250MHz. Cat6a – Has a speed up to 10.000 Mbit/s, 500MHz. Cat7 – Has a speed up to 10.000 Mbit/s, 1.000MHz.

Can I use CAT 8 instead of Cat5?

For basic Cat5 cables, that’s 100 million signals a second (or 100 Mhz). Cat8 uses an unprecedented 2 billion (2 GHz) signals per second. … That’s obvious when you consider that Cat8 is rated for data transfers 250 to 400 times faster than Cat5.

Article first time published on

Is Cat 7 backward compatible with Cat 6?

The Cat7 cable is backward compatible with Cat6, Cat5 and Cat5e cable categories. It offers a 100-meter 4-connector channel using shielded cabling, and has been designed to transmit signals at a frequency of 600 MHz. … Thus it allows the user to get higher possible speeds even with longer cables.

Is CAT7 better than CAT5e?

In terms of speed, CAT7 is rated for 600 MHz, and CAT7a for 1000 MHz (10 Gigabit). … That represents a potential 10x speed gain over CAT5e (100 Mhz). In lab tests, CAT7 has been shown to support even faster data rates over short distances.

What makes Cat6 faster than Cat5?

The bandwidth capacity of a Cat6 cable is 250 MHz (megahertz), whereas the bandwidth of a Cat5 cable is 100 MHz. … They have a lower production cost than many later versions and still supports faster speeds than Cat5. Do you plan on running a hefty array of devices on your network?

Will Cat6 work with my router?

With 100% chance any CAT 6 cable will work just fine. And at almost a 100% any CAT 5e cable will work exactly as fine.

Should I wire my house with Cat6?

Judy specifically asked about using Cat-5 cable for her connectivity, but to better futureproof the network, we recommend Cat-6 cabling which supports faster speeds and reduces the potential for crosstalk, or interference between signals.

What is the difference between Cat6 and Cat 6a?

CAT6 is the original version, while CAT6A is the advanced version. … Typically, CAT6e claims to: double transmission frequency from 250MHz to 500MHz or even 550MHz; be equipped with a grounded foil shielding that helps data transmission reach up to 10 Gigabit Ethernet; and extend to a maximum length of 100 meters.

Is Cat6 or Cat 8 better?

CAT6A is recommended for higher performance and 10 Gigabit Ethernet over the full distance distance. CAT8 supports 45 Gigabit Ethernet but it’s short range for those speeds makes it best suited for connections inside of one room.

Are Cat6 and Cat 7 connectors the same?

Do Cat6 and Cat7 cables use different connectors? Cat6 and Cat7 cables will use the same types of connectors. … For Cat7 cable which only comes in shielded versions to handle the higher frequencies it needs a whole shielded channel.

Which is faster Cat 8 or Cat6?

Cat8 is the fastest Ethernet cable yet. Its data transfer speed of up to 40 Gbps is four times faster than Cat6a, while its support of bandwidth up to 2 GHz (four times more than standard Cat6a bandwidth) reduces latency for superior signal quality.

Is Cat6 worth the extra money?

If you’re going to go through the effort, run cat6. It won’t be outdated in a few years, will just guarantee better overall speeds, has a thicker wire gauge, and will carry data and PoE( Power over Ethernet) farther. It’s worth the extra cost.

Is it worth upgrading to Cat7?

You might be wondering whether it’s worth your while to consider CAT 7 cable. … CAT 7 cable, whilst being the more expensive option, is also considered the most durable, and has a longer lifespan than CAT 5 and CAT 6, improving its overall return on investment, and is the best choice for wiring with the future in mind.

Is Cat7 ratified?

Category 7 cabling was ratified in 2002 in the ISO/IEC 11801 standard. Designed to meet strict Class F channel specifications for crosstalk and interference, it was a fully shielded S/FTP cable with foil shielding surrounding individual pairs and an outer braided shield surrounding all four pairs.

Is there a cat 7A?

Cat 7 was established to offer a higher frequency and greater performance than Category 6, with the ability to transmit 10 Gb/s. Similarly, Cat 7A offers a higher frequency and greater performance margin than Cat 6A, but it doesn’t increase the bandwidth.
