Is B vent pipe double wall

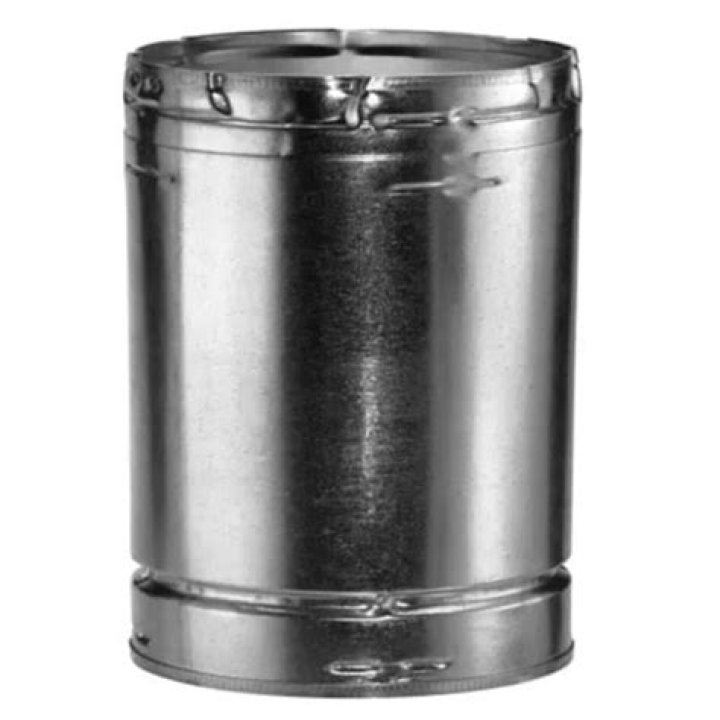

AmeriVent Type B gas vent uses a double wall of metal pipe for insulation and safety. The inner pipe of reflecting aluminum heats quickly, containing the warm flue gases inside. The airspace between the inner and the outer pipes provides insulation against heat loss to keep the warmer flue gases on the rise.

Is B vent single wall?

The single-walled portion of the vent is called a “connector” and is only allowed from the appliance to the B-vent. … Aside from the fact that the results look jackleg and the vents leaked, the result was loss of gas buoyancy and damage to the vent system.

What is double wall venting?

Type “B” double-wall vent pipe allows you to install it within 1 inch of combustible materials, such as wood framing and wall materials. The air space between the inner and outer walls of the vent’s double wall construction insulates the pipe, preventing the hot inner wall from coming in contact with combustibles.

Can B vent go through wall?

Any portion of your B vent system that passes through the occupied area must be enclosed to protect against any emergency, such as the system’s burning. But we will not recommend installing the B vent pipe on the outside wall of the building, especially when the outside weather is cold.

What is B type venting?

Type B vents are vents suitable only for listed, draft-hood equipped, gas-fired appliances, including most domestic heating and hot water systems.

What is the difference between B vent and direct vent?

A B-vent must be vented vertically and uses fresh air from inside the home to provide oxygen to the fire. A direct vent has a sealed glass front and pulls all of its fresh air from outside the home. Direct vents can be vented vertically or horizontally through an exterior wall.

Is Type B vent single wall or double wall?

AmeriVent Type B gas vent uses a double wall of metal pipe for insulation and safety. The inner pipe of reflecting aluminum heats quickly, containing the warm flue gases inside. The airspace between the inner and the outer pipes provides insulation against heat loss to keep the warmer flue gases on the rise.

Is B vent a Category 3?

B-vent is ONLY allowed on Category 1 appliances unless the appliance manufacturer has specifically certified a particular B-vent system to be used alternatively.

Can B Vent be used horizontally?

The Type B or single-wall vent connector cannot be installed horizontally. But it can be run almost horizontally: 1/4” per foot slope upward toward the vent, with no dips or sags, per International Residential Code (IRC G2427. 10.7). The vent it connects to must terminate vertically.

Can you insulate around B Vent?

As a Seattle Home Inspector I frequently find insulation tightly packed around B-Vent pipes that run through attics. So, even though rockwool is not considered combustible, it too must be retained away from the vent pipes because the insulation itself will conduct heat to things that can burn. …

Article first time published on

What is the purpose of B vent?

B vent: This approach, also called natural vent, pulls air from indoors for combustion and vents it outside. It features a chimney with a double wall pipe which runs from the fireplace to outside of the home. Homeowners can purchase fire boxes inside another box.

Is B vent zero clearance?

A 1-inch clearance (air space) to combustible materials must be maintained, when using DuraVent Round B-Vent, regardless of the pipe diameter. at least 2 feet higher than an adjacent wall or obstruction, if it is within 8 feet.

Is all B vent compatible?

Type B-vents are double-walled metal chimneys/flues and can be used only with listed, draft-hood equipped gas appliances. … B-vents are not permitted for use with incinerators and are not intended for use with appliances burning anything other than LP or natural gas.

Can I use B vent pipe for a pellet stove?

Safely vent your pellet stove for a direct vent through-the-wall install, to vent vertically through combustibles, or as connector stove pipe. Use as B-Vent pipe for low efficiency gas appliances.

What is single wall vent pipe?

Single-wall stove pipe is one option to create an air exhaust system for your stove. Single-wall stove pipe is used when you have a minimum clearance of 18 inches to combustible materials.

Is B-vent stainless steel?

Double-wall Type B Gas Vent, with an aluminum inner wall and a galvanized steel outer wall, has proven to be the ideal choice in venting materials.

What type of furnace requires B vent to be used as it's vent pipe?

A gas wall heater or older forced-air furnace generally requires a type “B” double wall metal vent pipe, while a new high-efficiency furnace requires a schedule 40 PVC vent pipe.

How efficient are B vent gas fireplaces?

Direct Vent fireplaces put out a decent amount of heat and operate with up to 85% efficiency.

What is Type C vent?

Type C vents are used only as connectors. They are single walled galvanized pipes, and as such often called “galvanized pipes”. They are used only for venting gas or oil. Using a C vent with solid fuel appliances can cause extremely toxic fumes.

Can you put screws in B vent?

It is acceptable to use screws to attach the B-Vent to the appliance outlet.

Can you vent a gas water heater horizontally?

The venting can run either vertically or horizontally with a longer line to help with space and sizing issues within your home, which makes power vent water heaters more flexible to install. Power vents are a more efficient option, as they are designed to utilize heat from the exhaust to heat water for energy savings.

What is the minimum height that a Type B vent must extend above a roof?

6) Minimum Height. A Type B or L gas vent shall terminate not less than 5 feet (1524 mm) in vertical height above the highest connected appliance draft hood or flue collar.

What is Category 4 vent pipe?

Category IV Appliances are mainly high efficiency water heaters and furnaces that use plastic vent pipes. These appliances also operate with positive vent pressure and cannot share a common vent with a gravity-vented water heater. Inspectors should not confuse fan-assisted furnaces with those that are power vented.

How hot can b vent?

Type B Gas Vent is designed for negative pressure applications and flue gas temperatures not exceeding 400°F above ambient for Category I appliances.

Is B vent safe?

Safety and Warnings B-vent systems are not intended for all types of fuels. They should never be used with wood-burning appliances, such as fireplaces and wood stoves, incinerators, oil-fired or coal-fired appliances, or any appliances that burn anything other than liquid petroleum or natural gas.

Can double wall vents touch wood?

Fire safety Metal vents that are too close to wood or combustionable materials may cause the wood to burst into flames. Single wall vents should have a minimum of 6 inches of clearance and double wall, sometimes called a “B” vent, should have 1 inch minimum clearance. The manufacture even stamps this into the vent.

Is B vent OK for wood stove?

No can do. A stove like the Lange is rated same as other woodstove, for continuous 1000 F. B vent is aluminum, which would melt very quickly at the 1400, 1700 and 2100 test temperatures of the chimney needed for you unit.

Can you use B vent for dryer?

Dryers don’t use B-Vent, it just a regular 4″ pipe. Its a gas dryer he said and that has to be a gas B vent pipe it gets hot. You use this oval B pipe for inside a wall like for a gas wall heater will fit in a 2X4 wall.

Can you use foil tape B-vent?

Also that sooting is not common in a gas-fired heating chimney and may indicate improper combustion – itself unsafe risking fatal carbon monoxide CO poisoing; And of course using foil tape to span gaps in B-vent chimney sections is improper and unsafe, risking fire or CO poisoning.

What is a Type B flue?

Type-B Gas Vent is a chimney venting system that is specifically designed to make use of air within the room to aid combustion. … It remains hot during the operation of the appliance with minimal condensation in the appliance and vent system.
