Is a GPS approach a precision approach

Some of them do have vertical guidance

What approaches are precision?

Precision approaches are those with vertical guidance, and they include Instrument Landing System (ILS) and Precision Approach Radar (PAR) approach procedures. PARs involve controllers essentially talking pilots down to minimums. PARs usually serve military bases.

Is a RNAV approach a precision approach?

RNAV approaches are Non-Precision Approaches. If your aircraft’s GPS is equipped with WAAS or LNAV/VNAV you will be able to execute LPV and LNAV/VNAV approaches.

What is GPS approach?

The Global Positioning System (GPS) Approach is defined by a series of waypoints and altitude restrictions that the pilot will follow to the runway threshold, free of conventional guidance such as a localizer/glideslope etc. … The different types of GPS Approaches that you can select can be found here.

What is an example of a precision approach procedure?

A precision approach uses a navigation system that provides course and glidepath guidance. Examples include precision approach radar (PAR), instrument landing system (ILS), and GBAS landing system (GLS).

Is VOR DME a precision approach?

Non-precision approaches which are pilot-interpreted make use of ground beacons and aircraft equipment such as VHF Omnidirectional Radio Range (VOR), Non-Directional Beacon and the LLZ element of an ILS system, often in combination with Distance Measuring Equipment (DME) for range.

Is a GLS approach a precision approach?

GLS stands for GBAS Landing System and uses equipment on the ground to augment or ‘enhance’ the accuracy of conventional GPS signals within 23nm of an airport, allowing aircraft to fly a precision approach. It is incredibly precise.

What is the difference between RNAV and GPS approaches?

Old GPS approaches assume non augmented GPS signal which requires a larger obstacle clearance zone. RNAV approaches support multiple minima, depending on user equipment. LNAV and LNAV/VNAV can be flown by old GPS approach equipment, while LPV/LV requires SBAS equipped receivers.

Is RNAV a GPS approach?

RNAV (GPS) approaches are designed to accommodate aircraft equipped with a wide variety of GPS receivers. An RNAV (GPS) approach procedure is shown in Figure 3-48.

Can a GPS approach be used as an alternate?

For airports with both ground-based navaid IAPs and GPS-based IAPs, the GPS-based IAPs typically would show as NA for filing as an alternate. The NOTAM now allows an option to flight plan for use of a GPS-based IAP at either the destination or the alternate airport, but not at both locations.

Article first time published on

What is the difference between DA and MDA?

Yet, decision altitude (DA) and minimum descent altitude (MDA) are very different concepts. As the names suggest, DA is a decision point while MDA is the lowest altitude allowed without visuals. … Without required flight visibility and runway environment, 91.175 says we can’t go below MDA.

Is RNAV RNP a precision approach?

They are non-precision approaches although they provide the crews with cues and procedures similar to those used on precision approaches.

What is a non-precision instrument runway?

Non-precision instrument runway means a runway having an existing instrument approach procedure utilizing air navigation facilities with only horizontal guidance, or area type navigation equipment, for which a straight-in non-precision instrument approach procedure has been approved, or planned, and for which no …

Is SLS a precision approach?

Thanks to this SLS function Airbus is looking at maximizing airport accessibility for all its operators by providing a real “Precision Approach Service”. This includes in particular a geometrical vertical guidance which is fully independent from barometric setting error or temperature effect.

What is a GLS instrument approach?

A GLS or GBAS Landing System is a Global Navigation Satellite System-dependent alternative to Instrument Landing System (ILS) which uses a single GBAS airport ground station to transmit corrected GNSS data to suitably-equipped aircraft to enable them to fly a precision approach with much greater flexibility.

What is a TLS approach?

A transponder landing system (TLS) is an all-weather, precision landing system that uses existing airborne transponder and instrument landing system (ILS) equipment to create a precision approach at a location where an ILS would normally not be available.

What are the different types of RNAV approaches?

Area Navigation RNAV approaches vary on capabilities. For example: LNAV (lateral navigation); LNAV +V (lateral navigation with advisory glide slope); LNAV/VNAV (lateral/vertical navigation). Some RNAV approaches will also have LPV (localizer performance with vertical guidance) known as APV approaches.

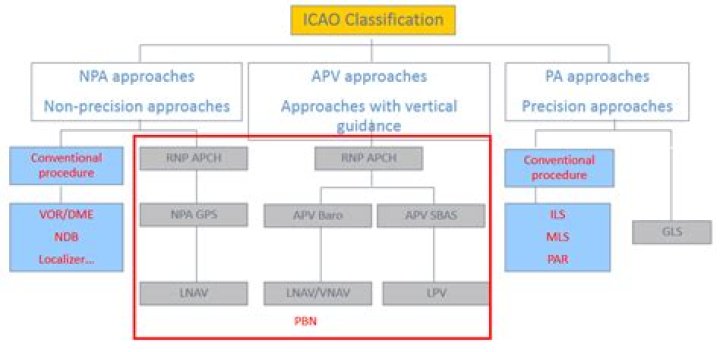

Are LPV approaches precision?

Even though LPV approaches have vertical guidance, they’re not considered precision approaches. Instead, they’re an approach with vertical guidance (APV). … The extremely accurate WAAS system (7.6 meters or better accuracy) gives you lateral and vertical guidance down to a decision altitude (DA) like an ILS.

Is an LDA a precision approach?

An LDA approach also is designed with a normal course width, which is typically 3 to 6 degrees. … An LDA approach (considered a non-precision approach) may have one or more marker beacons, perhaps a DME, and in rare instances a glide slope, just as other precision approaches have, such as ILS approaches.

What is VOR and ILS?

VOR (VHF omnidirectional range) and ILS (instrument land- ing system) are aircraft navigation aids based on analog mod- ulation, and are in use worldwide. … Because ILS supports the particularly critical landing approach, the requirements for precision, reliability and trustworthiness are extremely high.

What is an RNAV ILS approach?

RNAV is GPS and satellite-based, while ILS is just a landing system and is fully ground-based. ILS is just a landing system and is fully ground-based.

Can a RNAV approach be used as an alternate?

There are two basic requirements for an approach to be able to be used as a planned alternate, there must be local weather reporting (for example ASOS) and the approach navigation facility must be monitored. Since WAAS is monitored at the national level, all RNAV (GPS) approaches satisfy that condition.

Can an airport that only has a GPS be filed as an alternate?

According to the new policy, which will be added to future versions of the AIM, advisory circulars, and other documents, pilots with non-WAAS GPS navigators can now file an alternate airport that is served only by GPS-based instrument approaches, provided the original destination airport has ground-based procedures, or …

Can you use RNAV for alternate?

(4) The Operator/Company may use suitable RNAV systems for flight planning at an alternate airport, provided planned availability of the substitute means of navigation is confirmed (e.g. NOTAMs and RAIM prediction for use of GPS and NOTAM/AIS checks for use of WAAS).

Are MDA AGL or MSL?

All approach minimum altitudes, whether MDA or DA, are expressed in both MSL and AGL altitudes. As stated above, DA is read from the altimeter…it gives you the direct answer to “when do I reach minimum altitude?” in flight.

What is precision approach in aviation?

A precision approach is an instrument approach and landing using precision lateral and vertical guidance with minima as determined by the category of operation. … The controller uses the PAR display to guide the pilot or flight crew through the final stages of landing, providing horizontal and vertical guidance.

Where is MDA on approach plate?

To find MDA or DA, you’ll look to the Minimums section toward the bottom of the chart. Under the minimums, you will see different lines of minimums you can fly (this will depend on the type of equipment you have onboard) and whether they correspond to a Decision Altitude or a Minimum Descent Altitude.

Can G1000 do RNP approaches?

Approach Options. The G1000 system as implemented on the PA34 will only offer the best RNP approach type available for any particular destination. So if flying to Bristol with SBAS active and satellite coverage satisfactory, the only RNP approach type offered by the G1000 system will be an LPV approach.

Is Raim an RNP?

RNP is a PBN system that includes onboard performance monitoring and alerting capability (for example, Receiver Autonomous Integrity Monitoring (RAIM)).

Who can fly an RNP approach?

RNP APCH is essentially equivalent to RNAV (GPS). If you fly with an IFR-approved GPS, your aircraft meets the requirements to fly basic RNP APCH procedures as described in the AC. But you can’t fly RNP AR procedures unless you also meet the requirements of AC 90-101A.

What is a precision runway?

Precision instrument runway means a runway having an existing instrument approach procedure utilizing air navigation facilities or other equipment that provide both horizontal and vertical guidance. This also includes a runway for which a precision instrument approach procedure has been approved or planned.
