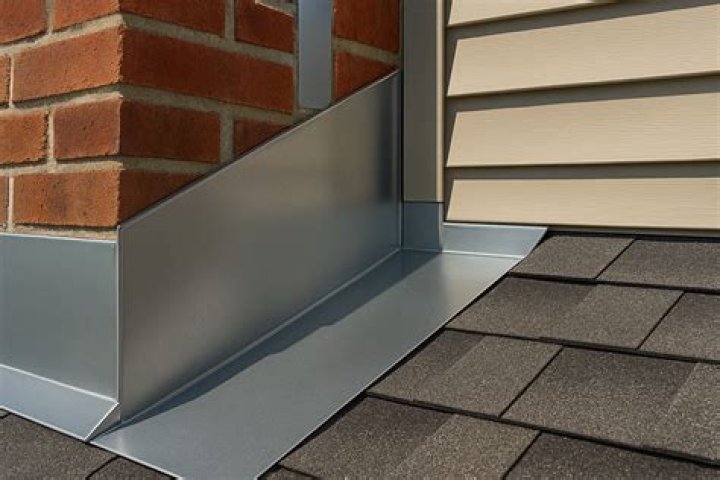

How wide is roof flashing

Typically, 10- by 8-inch (253 mm x 203 mm) flashing is chosen. Those 8 inches are more than enough to cover the exposure of typical shingles.

How wide should flashing be?

The flashing shall be a minimum of 4 inches (102 mm) high and 4 inches (102 mm) wide. At the end of the vertical sidewall the step flashing shall be turned out in a manner that directs water away from the wall and onto the roof and/or gutter.”

How much do you overlap flashing?

Place each step flashing piece about ¼ inch short of the bottom edge of the shingle that will overlap it — just enough so that the flashing piece is not visible when the overlapping shingle is in place.

Does flashing go under or over shingles?

Flashing should overlap the roof-covering material, but on asphalt shingle roofs, for aesthetic reasons, the part of the headwall flashing that extends down over asphalt shingles is often covered with a course of shingle tabs. … Wind-driven rain can enter at these gaps, causing roof leaks.

How much does it cost to put flashing on a roof?

Generally, the cost of fixing flashing is anywhere between $15 to $25 per linear foot, which includes both the price of the new flashing itself and the caulking used to seal it in place (which is about $10 on its own or sometimes more). A total flashing replacement might cost anywhere between $300 to $600.

How much overhang should shingles have?

Shingles should not extend more than 3/4” (19 mm) past the drip edge. If shingles overhang the edge of the roof by more than 3/4” (19 mm), then they are not supported and may crack and break off. In addition, the wind resistance at the roof edge may be compromised.

What is flashing a roof?

Roof flashing is a thin metal material that roofers install to direct water away from certain areas (walls, chimneys, roof valleys) of your roof. It’s a crucial roofing material that every roof needs to have. You’ll have different metal options to choose from for your roof flashing.

Can you add flashing to an existing roof?

Flashing is generally installed at any joints or edges in the roof where water could otherwise work its way in. In order to properly install new flashing, you’ll have to remove the shingles surrounding your old flashing, and then re-lay them after installation.

Should you caulk flashing?

Flashing acts as a waterproofing layer for this type of siding, and caulking will prevent the flashing from doing its job. As far as trim boards are concerned, you should not caulk around these areas if they sit on top of the surface of your siding.

Is roof flashing necessary?

Roof flashing, usually made from metals like aluminum, copper, or steel, is flat and thin, and prevents water from getting under shingles. … All of these areas leave shingles and underlayment vulnerable to water, so the flashing is necessary to prevent leaks.

Article first time published on

What material is used for flashing?

What materials are used for flashing? Flashing can be made from many different materials, including metal (copper, aluminum, stainless steel, lead, etc.), plastic, or composite materials. The most durable (and, therefore, most expensive) flashing material is metal sheet flashing.

Do you caulk Z flashing?

Proper z-bar flashing installs require no caulking as it will cause a damming effect and will hold moisture behind the caulk keeping it damp between the bottom edge of the siding and the z metal.

What size step flashing do I need?

Step flashing needs to turn up a minimum of three inches up the sidewall. The flashing material should be 4 inches by 7 inches in length when it lies on the roof deck. The 7-inch length ensures a 2-inch headlap on each course.

Do you butt or overlap drip edge?

The drip edge should always be installed with the flashing under the felt on the eaves side and over felt on the rakes unless local code dictates otherwise. … For proper water drainage, the drip edge on the rakes should always overlap the drip edge on the eaves. This works out correctly if you do the eaves first.

How long should roof flashing last?

You can expect roof flashings to last 20 to 35 years, with an average of 25 years. A flashing is any material that is used as a transition between roofing and another surface or at a roof penetration, or at a change in plane of the roofing itself. If a roof is leaking, it is likely at a flashing.

Does home insurance cover roof leaks?

Homeowners insurance may cover a roof leak if it is caused by a covered peril. Suppose your roof is damaged by fire, hail or wind. … However, homeowners insurance generally does not cover damage resulting from lack of maintenance or wear and tear. Instead, it typically helps pay to repair sudden, accidental damage.

How do I install continuous flashing?

To install continuous flashing, embed it into roof cement and nail it to the last course of shingles nailed to the deck. Do not nail the flashing to the wall. Instead install the flashing before the siding, bricks, or stucco. If the siding is already instead you will need to pry it up to slip the flashing under it.

How far should roof overhang gutters?

It is usual to allow roof sheets to overlap into gutters by about 50 mm. The valleys of sheets should be turned down at lower ends and turned up at upper ends. For maximum weather-tightness, start laying sheets from the end of the building in the lee of the worst-anticipated or prevailing weather.

How do you measure a storm collar?

You can measure this by wrapping your tape measure around the pipe and where the tape measure starts to overlap itself is the circumference. Doing a little geometry will tell you the diameter. Diameter equals the circumference divided by Pi (Pi = 3.14). Example: circumference: 41″ / 3.14 = Pipe Diameter 13.05″.

What do you seal roof flashing with?

Seal the seam between the cap and step flashing with urethane roofing cement or silicone caulking compound, as shown at right. If you are working with valley flashing, lift the edges of the surrounding shingles, and spread roofing cement on the flashing about 6 inches in from the edge of the shingles.

Do all roofs have flashing?

There are almost as many types of roof flashing as there are parts of the roof! After all, each roof feature needs protection. These are the key types of roof flashing you need to understand: Continuous flashing: Continuous flashing is also called “apron flashing” because it acts a lot like an apron.

Why is it called flashing?

The origin of the term flash and flashing are uncertain, but may come from the Middle English verb flasshen, ‘to sprinkle, splash’, related to flask. … Strips of lead used for flashing an edge were sometimes called an apron, and the term is still used for the piece of flashing below a chimney.

How far should shingles stick out past the drip edge?

The edge of the shingles should hang over a roof between an inch and an inch and a half — or between a half inch and three-quarters of an inch if drip edge flashing is installed. Too much overhang and the shingles could blow off in high winds; too little can allow water to seep into rake or fascia boards.

How far should roof sheathing overhang fascia?

Ideally the sheathing should be on top of the fascia without extending beyond it. Guesswork can create a situation in which it extends too far and it interferes with flashing installation, or you have to cut it. If the fascia is to be one layer of 1x, I overhang the sheathing 5/8.

Should drip edge be tight to fascia?

A vertical drip edge lip extends down roughly 1 5/8″ and as Steve points out, should not be set tight against the fascia board or water may run behind the gutter and down the fascia, inviting leaks and rot.

Why do you need Z-flashing?

Z-flashing is required over horizontal wood trim pieces, typically seen above doors or windows as well as decorative trim bands. … It channels water downward to the kick-out flashing, which is intended to manage water coming off step flashing.

What are the different types of flashing?

Continuous flashing: Also known as “apron flashing”. …
Drip edges: Often installed under the roofing felt along the eaves of a roof. …
Step flashing: Step flashing is a rectangular piece of flashing bent 90 degrees in the center. …
Valley flashing: A W-shaped piece of metal flashing.

Do you need a drip edge with gutters?

If the home has no gutter, the drip edge will prevent the water from running down the fascia and onto or into the soffit cavity. However, without the drip edge, the water sticks to shingles, potentially working its way under the shingles to cause a leak.

Is step flashing better?

Step flashing offers far better protection from leaks, because even if a single piece of step flashing fails, the water just hits the next lower piece. That flashing directs the water onto the shingle and the water drains down the roof.
