How wide is a stud wall UK

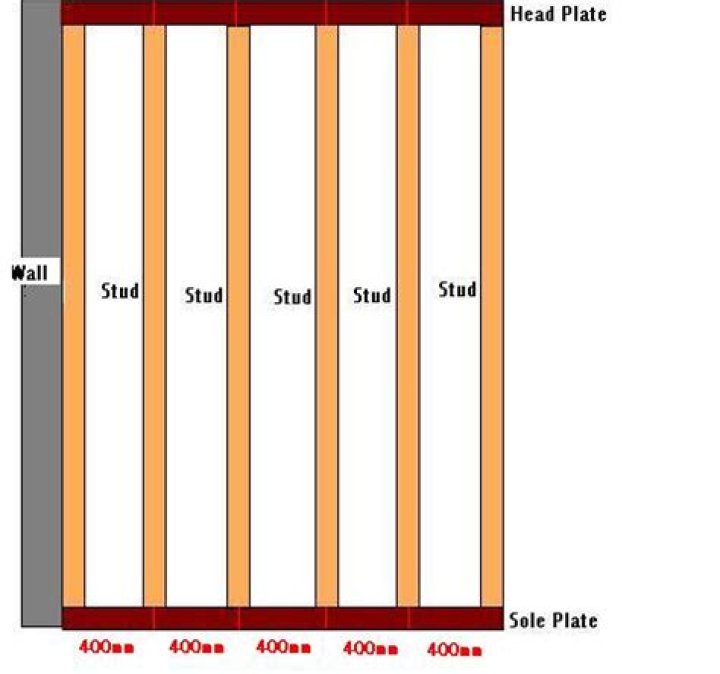

You can make a stud wall frame from of either 75mm x 50mm or 100mm x 50mm of sawn timber. This comprises four things. There’s a ceiling or head plate, which is fixed to the ceiling joists. There’s also a matching length nailed to the floor, called the floor or sole plate.

How thick is a stud wall in UK?

The studs are typically 65 mm with 12.5 mm plasterboard on each side making 90 mm nominally 100 mm. Bathrooms and kitchens have a sheet of ply as well to allow for hanging cabinets etc off the walls.

How far apart are wall studs in UK?

Studs are spaced evenly along the wall usually 16/24″ or 400/600mm. It is important to keep this spacing to a clean fraction of the plasterboard width, so that the edges of the board always fall on a stud without each board needing to be cut to fit.

What is the standard width of a stud wall?

Two-by-six and two-by-four are the most common dimensions of wall studs. Standard walls of 8 feet have wall studs that are 92 inches.

How thick is an interior wall UK?

Most internal walls are built of a single skin of brick, 110mm wide, with lime plaster on both sides taking the walls to about 150mm thick. You may find thicker walls at ground level and where there are ducts or chimneys.

What size timber is used for stud walls?

You can make a stud wall frame from of either 75mm x 50mm or 100mm x 50mm of sawn timber. This comprises four things. There’s a ceiling or head plate, which is fixed to the ceiling joists. There’s also a matching length nailed to the floor, called the floor or sole plate.

Are stud walls load bearing UK?

So to answer the question; yes stud walls can be load bearing and may be load bearing but they’re not always load bearing. Just like any other wall really.

How thick should walls be in meters?

Wall thickness in meters:- we are using brick for wall construction, then minimum wall thickness should be kept around 0.230m thick for outer wall, 0.120m thick for internal wall partition and 0.080m thick for cupboard and railling purpose.

What is a standard wood stud width in a home?

The most common dimensions of wall studs are 2-by-6 and 2-by-4. Wall studs for standard walls of 8 feet are 92 5/8 inches. In homes with 9-foot walls, the studs are 104 5/8 inches. Homes with a wall height of 10 feet use pre-cut studs at 116 5/8 inches.

Can I use 2x2 for stud walls?

Since 2x2s are too narrow, you must encase any electrical wiring in metal or rigid plastic conduit. Connect a 2×2 wall to the studs in the existing wall. … A wall built from 2x2s is not strong enough to support any load-bearing weight but is perfect as a partition wall.

Article first time published on

Can I mount a TV on a plasterboard wall?

Many people ask the question “Can I put TV on a plasterboard wall?” The answer is yes you can fix a TV to a plasterboard wall. Hanging a TV on a plasterboard wall is possible even if the TV is very large and heavy. … Plasterboard fixings are the ideal choice for fixing a large flat screen TV onto plasterboard.

How are wall studs spaced?

You may wonder, how far apart are studs in my home? They’re always spaced either 16 or 24 inches on-center (measured from center to center) along the wall and run between the floor and ceiling. Drywall or lath (for plaster walls) attaches to the edge of the studs.

How much is a stud wall UK?

Stud wall price The cost of materials for a timber stud wall, measuring 3m x 2.4m x 125mm, is around £175 – £200. The total average timber stud wall price is between £800-£900, and the job should take 2-3 days.

How thick are studs in house walls?

The standard wall thickness for a residential house for 2×4 studs is 4-1/2 inches wide, including a 1/2 inch drywall on both sides. You should use 2×6 studs on walls with plumbing, which will bring the thickness to 6-1/2 inches, including the 1/2 inch drywall on both sides.

Do you need planning permission for stud wall?

Although you generally do not need to seek planning permission to build an internal stud wall, you will need to follow certain building regulations. … If you are simply partitioning off a corner of a bedroom to create a large wardrobe, few building regs will apply.

What weight can a 4x2 take?

When standing vertically, such as when it functions as a stud, a 2×4 can hold about 1,000 pounds. A 2×4 can hold up to 40 pounds or 300 pounds when laying on its edge without sagging when laying horizontally.

How do you know if a stud wall is load bearing UK?

The first place to start is in the lowest point of your house. This will either be the basement or the first floor. In any case, the aim is to locate what is known as the lower concrete slab. Next, look for walls that feed directly into the foundation – these are the load bearing walls.

What weight can a stud wall support?

Using several screws that are #4 or larger into a wall stud can hold up to 100 pounds or more. You want to make sure they can go at least 1 inch into the stud to be secure. If you are hanging a shelf that will have books on it, this is the perfect hardware.

Can you use 3x2 for stud wall?

Timber stud walls are generally built using either 75×50 (3×2), 100×50 (4×2) or 125x50mm (5×2) timbers to form the top and bottom plates, studs and noggins. … After framing an interior wall it will need to be insulated and sheet material like plasterboard installed.

How thick is a timber stud wall?

How thick is a stud wall? Timber stud walls are usually just over 5 inches in thickness. This includes the combined thickness of your studs (either 70 or 100mm), two plasterboard sheets (each 12.5mm in thickness) and the skim plaster finishes.

How far apart should noggins be in stud wall?

The distance between noggins is typically around 18 inches (450mm). The height of most walls in a home is approximately 8 ft – 9ft in size, so you’ll need to install four noggins per partition. The thickness of your noggins should be around the same thickness as your studs.

How wide is a 2x4 stud?

A piece of surfaced (sanded smooth) 2×4 lumber actually measures 1½ inches thick and 3½ inches wide. In rough-cut condition, a 2×4 is slightly less than 2 inches thick and approximately 4 inches wide. When wood is milled from a rough to a smooth surface, it loses about ¼-inch from each of its four sides.

How far apart are studs in older homes?

You may be asking, “How far apart are studs?” Typical stud spacing is 16 inches on center and even on older houses is rarely greater than 24 inches on center. Most electrical boxes for switches or outlets are attached to a stud on one side. There are studs on either side of a window.

How thick is a 2x4 wall?

A two-by-four wall stud is 3 ½ inches wide, and an interior wall typically has ½-inch drywall installed on both sides, bringing the wall thickness to 4 ½ inches.

Is 4 inch wall enough?

Though the building may still stand, 4″ thick walls offer minimum protection from weather, minimum thermal insulation, fire fire protection and earthquake resistance and is not recommended. All external walls should be at least 6″ thick.

How wide is an outside wall?

External walls are generally 10 to 12 inches wide. Homes that are built with rammed earth or heavy exterior masonry will have thicker walls. There is no limit to how thick an exterior wall can be.

Can I frame with 2x3?

Most wall framing is done with 2×4 or 2×6 lumber, but it may be possible to use 2×3’s to build a new, non-load-bearing, interior wall. By code, 2×3’s may be used for this purpose if the wall is no taller than 10 feet and the studs are spaced every 16 inches. … In addition, electrical boxes won’t fit in a 2×3 wall.

How thin can walls be?

A typical residential wall consists of a floor plate, two ceiling plates, wall studs, and 1/2 inch drywall to form a wall that’s 4 1/2 inches thick. A narrow wall is 2 to 2 1/2 inches thick, but it is not suitable as a load bearing wall and local building codes might not allow it between bedrooms.

Can you build a shed with 2x2?

Shed Framing 2×2 With Rounded Corners – Treated. With all corners rounded off this timber is perfect for shed framing. … Timber is a natural product and is subject to continual movement when exposed to atmospheric conditions. This may be evident with splits, shakes or warping.

Can you hang a 65 inch TV on a plasterboard wall?

No problem at all. You can either have the plasterboard channelled out and then filled back in or you could use trunking to hide them.

Will my TV fall off the wall?

There is a chance that even with a good quality TV mount and fixings correctly secured that the TV could fall off the wall by it not being installed properly. This is usually done by someone that does not have the skill-set to mount TV’s to walls, this could be a rogue trader or “Cowboy” as they are often known.
