How wide are batten boards

A true batten is 2-inches in width or smaller, but you can use larger widths by installing trim in place of a batten if you want a thicker appearance. They’re installed directly over the vertical panels to get the traditional look.

Is there vinyl siding that looks like board and batten?

Make a bold statement with Board & Batten Vinyl Siding, available in striking colors that look like freshly painted wood—perfect for cottage or mountain retreat-style homes.

How thick is board and batten vinyl siding?

Product Features 048” thickness provides superior rigidity, ensuring straight, smooth walls. Laboratory tested to withstand windloads up to 180 km/h (112 mph) for added peace of mind.

What size boards do you use for board and batten siding?

In appearance, board-and-batten siding can look rustic or modern, depending on how rough the lumber is and its finish. Perhaps the most common arrangement uses 1×10 boards and 1×2 or 1×3 batten. You can also use 1×8 or 1×12 boards and 1×4 battens.

How wide should the battens be on board and batten siding?

The battens should butt tightly against the top trim board and be flush at the bottom with the wider vertical boards. While the width of the battens is your choice, they should be wide enough to overlap the edges of the larger boards by at least ½ inch on both sides.

What is the widest vinyl board and batten siding?

CertainTeed’s 10″ board span with 2″ batten strip is the industry’s widest.

How wide should exterior board and batten be?

Traditional board and batten uses wide boards and overlying narrow battens. For this style, the vertical boards will range in width from 6″ to 12″ with a 1/2″ to 1″ gap between the boards. The narrower battens that overlay the boards will range between 2″ and 4″.

How much does vertical vinyl siding cost?

Vinyl Siding TypeAverage Cost (Per Square Foot)Vertical$3 – $8Log$3 – $5Board and Batten$2.50 – $8Stone$4 – $10

How much is CertainTeed board and batten siding?

How much does CertainTeed board and batten siding cost? CertainTeed board and batten ranges between $3.95 and $7.20 per square foot.

How long is board and batten vinyl siding?

Board & Batten Features: Two lengths: 12’6″ (8″ profile) or 10′ (7″ or 8″ profile)

Article first time published on

What is reverse board and batten?

Reverse Board & Batten siding features an extra thick panel that is reinforced with a foam backer to create the rigidity and durability of hardboard cladding. It is lighter, easier to handle, and more weather-resistant than real wood, fiber cement, and wood composite siding.

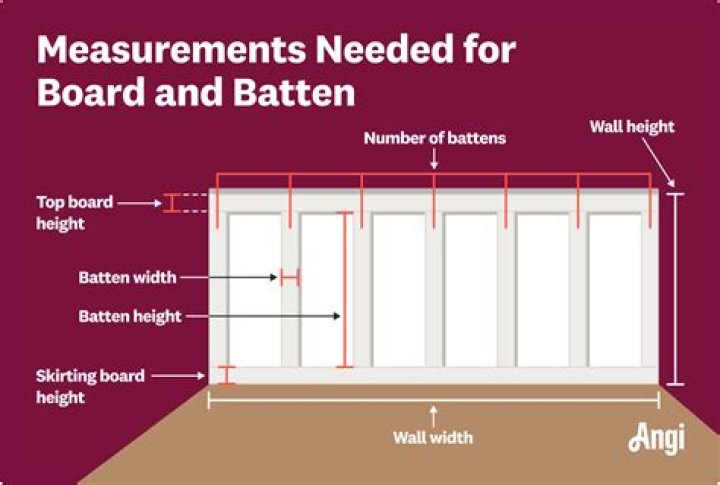

How do you measure batten and board spacing?

Add 1 to your number of spaces to get the number of battens on the wall. Now multiply your batten width by the number of battens. Subtract that number from your total wall length. Divide that number by the number of spaces you calculated earlier, and THAT number will be your exact spacing between each batten.

Is board and batten cheaper than vinyl siding?

Is board and batten cheaper than vinyl siding? No, since board and batten siding is made of wood and relatively complex to install, it’s typically more expensive than horizontal vinyl siding.

How far apart should battens be for siding?

How To Install Board and Batten Siding. To install board and batten siding, first install wide vertical boards, spaced approximately one board width (7/8″) apart. Secure these boards using fasteners fasteners placed at the center of the siding boards.

What size is a batten?

What timber batten sizes are typically supplied? Timber battens compliant with BS 5534 typically come in two basic dimensions: 25x38mm and 25x50mm, with the ±3mm tolerance. These measurements should be taken with a reference moisture level of 20%.

How wide can vinyl siding be?

As a rule of thumb, vinyl siding usually comes in the following widths: 4”, 5”, 6”, 7”.

What length does vertical vinyl siding come in?

Standard sidings are usually 12′ to 12-1/2′ long. With standard siding panels, seams appear every two to three feet. Longer length sidings are typically offered in 16’8”, 20′ and 25′ ranges.

Can you get board and batten in vinyl?

With its unique vertical pattern, Board & Batten vinyl siding recalls the rustic charm of early American homes. Use it as a striking accent or on your entire house for a distinctive look.

How thick is CertainTeed vinyl siding?

Sample Short Form Specification: Siding as shown on drawings or specified herein shall be MainStreet™ Vinyl Siding as manufactured by CertainTeed LLC, Malvern, PA. The siding shall have a . 042″ nominal thickness. Installation shall be in accordance with manufacturer’s instructions.

Is vertical vinyl siding more expensive?

When considering the cost of installation, vertical siding is more expensive and time-consuming to install than horizontal siding because furring strips are placed underneath first to ensure that the siding is aligned properly and smoothly.

What is the difference between Monogram and MainStreet siding?

Monogram regular siding offers the unmistakable look of classic, natural cedar without the costs associated with wood. Thicker than Mainstreet siding, Monogram regular siding has larger exposures, giving them a very distinctive look. … You can easily appreciate the natural wood with distinctive colors.

How much does it cost to vinyl side A 1200 square foot house?

Total Square FootageAverage Range1,000 sq ft$3,000 – $12,0001,200 sq ft$3,600 – $14,4001,500 sq ft$4,500 – $18,0002,000 sq ft$6,000 – $24,000

What do you put under vinyl siding?

Vinyl siding can be installed over common wood sheathings such as plywood, oriented strand board (OSB), or other materials (e.g., foam plastic insulating sheathing). The thickness of wood sheathing counts toward the total thickness that the fasteners must penetrate into nailable material, usually 1 1/4” (32mm).

Is it harder to install vertical siding?

Longer installation time — Vertical siding requires more steps to install than its horizontal counterpart, including installation of an underlayer called furring strips, which evens out the surface and makes the vertical siding look smooth and streamlined.

What era is board and batten from?

BOARD AND BATTEN was popular as a wooden siding for houses in America between 1845 and about 865.

What style is board and batten siding?

So, what is “board and batten?” It’s a type of siding where thin strips of wood molding—or “battens”—are placed over the seams of panel boards. The result is an aesthetic that is both rustic and chic, with the strong vertical lines providing shadows and textures to the home exterior.

Can you run vinyl siding vertical?

All vinyl siding can be installed horizontally or vertically, and each has its own advantages and disadvantages. Obviously, most homeowners opt for the horizontal setup, but vertical isn’t completely unheard of.

Do you need furring strips for vertical siding?

While typical siding installation require furring strips to be installed vertically, this is not the case when it comes to vertical siding installation. If vertical siding was set onto horizontal furring strips, any water that intrudes would have no place to go.

Do you need furring strips for vinyl siding?

Furring or strapping must be applied to create an even base for siding. Apply 1” x 3” (minimum size) wood furring, not more than 16” on centers. … As an alternative, solid sheathing can be applied directly over the old surface to create a smooth base, or over furring to provide even support for the vinyl siding.
