How tight are hose clamps

About 50 in/lbs, which is about in the “snug” area with a screwdriver handle used for doing the tightening. It shouldn’t really dig into the rubber any more than it takes to make a modest depression.

How tight should you tighten hose clamps?

If using gear type clamps, it is best to tighten with a flat screwdriver, rather than a socket head, which will control, to some degree, how tight you can make them. Concur – Hose clamps should only need to be snugged , not tightened completely.

Do hose clamps loosen?

Screw clamps consist of a band, often galvanized or stainless steel, into which a screw thread pattern has been cut or pressed. … When the screw is turned, it acts as a worm drive pulling the threads of the band, causing the band to tighten around the hose (or when screwed the opposite direction, to loosen).

How much torque do hose clamps need?

Most full size solid band hose clamps call for 30-40 inch pounds of torque, which is easily achieved using a screw driver or proprietary hose clamp installation tool. A mini-torque wrench being used to ensure proper hose clamp tension.

Are hose clamps reliable?

Good quality hose clamps are marked with the material they’re manufactured from. This one is 316 stainless steel and acceptable for use aboard. Any hose clamp used on a boat should be made from high-grade stainless steel to resist corrosion; zinc-plated clamps or those made from plain steel will rust and fail.

How do constant torque hose clamps work?

The idea behind constant tension clamps is that during tightening, the Belleville washers compress and act like a spring. When the rubber relaxes, the spring action pulls the band through the housing, making the clamp smaller to compensate for shrinkage in the rubber hose.

How tight should intercooler clamps be?

Registered. crank it as tight as you can, till it starts to loosen up, then back off a 1/4 turn :T: Snug is fine, if it pops off put it back on and tighten it more!

How do you loosen and tighten a hose clamp?

Squeeze the clamp with one hand so that the end opposite the driver slides into the sleeve holding the driver. Turn the driver clockwise with the screwdriver or wrench so the threads on the driver engage the slots on the clamp. Continue turning the driver until the clamp tightens around the hose securely.

How much psi can a hose clamp hold?

They can have working pressure ratings of 350 psi and burst pressure ratings of 1,750 psi; a difference of five times (rather than the common four). Components of an anhydrous hose: 1.

How are hose clamps sized?

To determine the size needed, install the hose (or tubing) on the fitting or pipe (which expands the hose), measure the outside diameter of the hose, then select a clamp that accommodates that diameter in about the middle of its range. … The minimum diameter is 7/32″ and the maximum is about 1 3/4″.

Article first time published on

Do spring hose clamps wear out?

Realistically, though, either type of clamp should last for the life of the car. Spring style hose clamps are typically fabricated from steel alloy and plated with zinc for corrosion protection.

Which hose clamps are best?

Hilitchi Worm Gear Hose Clamps. …
Glarks Mini Fuel Injection Style Clamp Kit. …
Hilitchi Spring Clamps. …
Cambridge SAE 44 Clamp. …
S304 Worm Gear clamp Kit. …
Co Rode Worm Gear Hose Fittings. …
Cambridge SAE 52 Hose Clip. …
WGCD Worm Gear Automotive Clamps Kit.

How much does it cost to tighten T bolt clamps?

These constant-torque clamps, found in sizes from 9/16″ to 3 ¾”, should be tightened to 30-45 in. lbs.

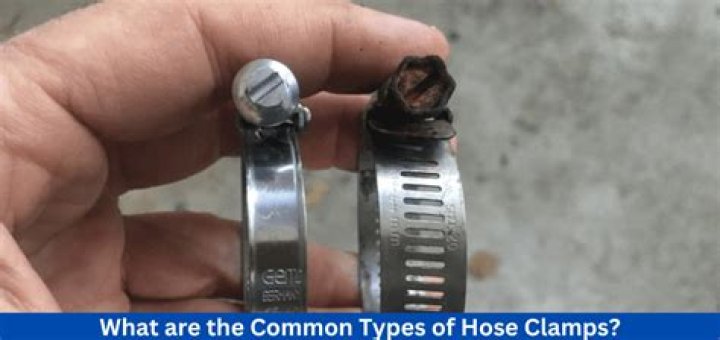

What are the different types of hose clamps?

There are four overarching categories of hose clamp; screw/band, spring, wire and ear. Each different hose clamp is used depending on the type of hose in question and the attachment at the end. As one of the most regularly used hose accessories, questions surrounding the use of hose clamps are frequent and plentiful.

How do spring hose clamps work?

They are commonly referred to as spring clamps because they apply constant tension on the rubber hose. … This matters because as the hoses age, they may harden, soften, swell, or lose their structural rigidity, and spring clamps will continue to apply force on the hose regardless of the condition of the hose.

What is a constant torque clamp?

The constant torque hose clamp is designed to automatically adjust its diameter to compensate for the normal expansion and contraction of hose and tubing during vehicle operation and shutdown. Coolant losses are virtually eliminated and clamp maintenance is greatly minimized.

Are hose clamps OSHA approved?

OSHA Construction standard 1926.302(b)(5) states that “The manufacturer’s safe operating pressure for hoses, pipes, valves, filters, and other fittings shall not be exceeded”. … A water hose clamp can also cut into compressed air hose material easily and cause it to break.

How much heat can a hose clamp take?

The INOX – BALL – QUICK Series have maximum dimensions of 1070 x 8 mm and can withstand a maximum temperature of 540 degrees C.

How much heat can a hose clamp handle?

Ideal for keeping sealed plastic, metal and other hoses in place, this heavy-duty clamp can be used in a variety of situations and can withstand temperatures as high as 250 degrees Fahrenheit.

Where do you place a hose clamp?

Clamps should be installed so that 1/4 inch of hose is visible between the band and the hose end and approximately 1/4 inch between any two clamp’s bands. In short, it’s critically important to confirm the length of the pipe-to-hose adapter under the hose before installing a clamp or clamps.

Which is a common use for a hose clamp?

A hose clamp’s design allows it to secure a hose over a fitting, thereby preventing any fluid flowing through the hose from leaking at the connection. Common uses for hose clamps include securing hoses in automotive systems and for clamping lines in household plumbing systems.

Can you take a hose clamp apart?

Loosen the bolt with a flat-head screwdriver or a socket wrench. Screw hose clamps have both a screwdriver slot and a bolt head, so either tool works. Turn the bolt counterclockwise using your selected tool until it’s loose, then pull it off the tubing to remove it.

How do you remove a garden hose connector?

Make sure to cut the hose connector at a 45-degree angle. …
Pry open your cut. …
Use your tongue-and-groove pliers to unscrew the loosened garden hose connector. …
Use a utility knife or pair of scissors. …
Remove the brass piece from the clamp of the new connector.

What is the smallest hose clamp?

Hose Clamp – Small – 3/16″ – 1/2″

What size is a #2 hose clamp?

#2 Hose Clamp 5/16 Inch x 5/8 Inch 304 Stainless Steel Band Sx-Series Torro Non-Perforated.

Are hose clamps reusable?

Ear hose clamps are designed for permanent installation and are not reusable as they must be removed by destructive means.

How do you measure a spring hose clamp?

To determine the size needed, install the hose on the fitting or pipe (which expands the hose), measure the outside diameter of the hose, then select a clamp that accommodates that diameter in about the middle of its range.
