How plumbing works in a RV

RVs have a pretty straight-forward plumbing system. Freshwater comes from either a direct campground faucet hook-up or the onboard fresh water holding tank. Water is heated by the water heater and sent to the faucets either by water pressure from the campground faucet or by the onboard water pump.

How does the plumbing system work in an RV?

RVs have a pretty straight-forward plumbing system. Freshwater comes from either a direct campground faucet hook-up or the onboard fresh water holding tank. Water is heated by the water heater and sent to the faucets either by water pressure from the campground faucet or by the onboard water pump.

What kind of plumbing is in an RV?

Modern RVs, made in the last 10 to 15 years, are plumbed using PEX tubing, sometime called PEX pipe, for the fresh water system. In fact, most new homes and commercial buildings use it too. It is so much cheaper than metal pipe and because it is flexible it is easier and less expensive to install as well.

How do RVs get water lines?

RV water lines can sometimes be difficult to locate. But typically, by removing a panel or an accessible flooring section, one can successfully gain access to most of the fresh water plumbing system. The clue to a removable panel is to look for screws instead of staples holding them in place.

How do bathrooms work in an RV?

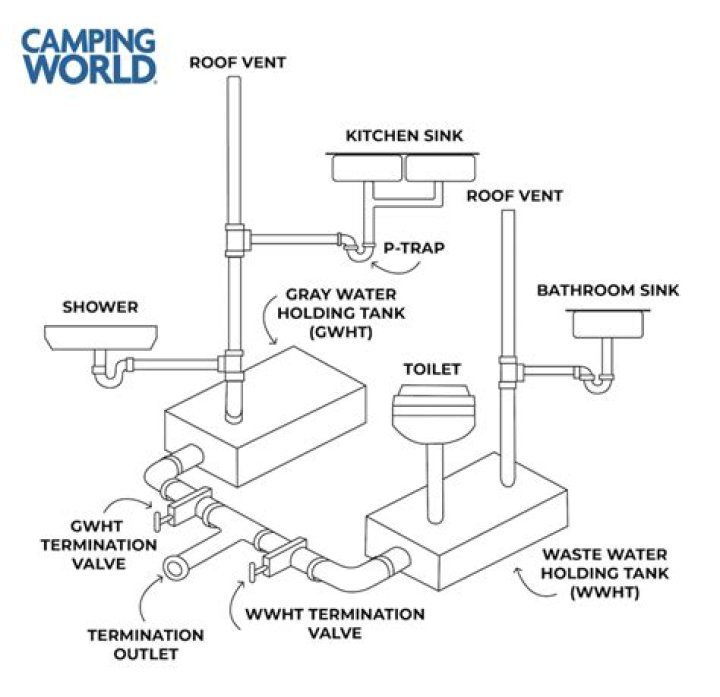

RV bathrooms look and work in a similar way as home bathrooms do. The main difference is that RV bathrooms have their own sewer systems. The shower, sink and toilet in a house bathroom drains into a city sewage system. In a RV, they drain into holding tanks that must be manually emptied by the RV owner.

Why is RV plumbing black?

The black pipe is designed for drains and venting not for pressurized pipes. The PVC and CPVC are for pressure lines, i.e. hot & cold water supply.

What size is RV plumbing?

In RVs, manufacturers typically use translucent non-colored PEX for all plumbing runs. Further, two sizes are used, 3/8-inch and ½-inch. These are the standard size because the outside diameter of the tubing is about 1/8-inch greater than the called-for size. Also, PEX is inexpensive.

How do I get running water in my RV?

Locate your camper’s fresh water drinking hose. If you’ll be using a water filter or water pressure regulator, attach them to the hose now. Screw the loose end of your hose into the campground’s water supply hookup. Set your RV water system to connect to city water instead of your own RV water tank.

What is black water in an RV?

What is a Black Water Tank and What Does It Do? The black tank collects the waste from the toilet. It’s located under the RV carriage, positioned next to the grey tank which holds the water run-off from sinks and showers.

Are RV holding tanks vented?

Each holding tank must be vented from the holding tank up and through the roof to the outside atmosphere; the typical vent consist of 1-1/2″ ABS plastic piping.

Article first time published on

Where do you empty RV toilets?

An RV black tank is a holding container attached to the underbelly of the RV. All of the waste from the RV toilet empties into the black tank (the rest of the waste water from the RV showers and sinks empties into the gray tank).

Can you use a regular toilet in an RV?

Can you put a regular toilet into an RV? No, you cannot put a regular toilet into an RV. First off, the construction is not meant to be rattled down the road, they use a lot more water, and they will use up lots of black water tank storage due to more water being used.

What size is a RV toilet supply line?

Almost every common RV toilet uses a 1/2″ FPT or MPT fitting at the water entry (generally MPT). If you are using 1/2″ PEX and the associated Shark Bite fittings, then they have one that terminates with a 1/2″ MPT thread.

What size is RV sewer pipe?

The size of a camper sewer line is 3 inches in diameter. The rigid pipe used for the camper sewer outlet is 3 inches, as is the diameter of sewer hoses that connect to the RV’s waste outlet pipe.

What are the red and blue hoses under my camper?

They are the “low point” drains. Blue is the cold and red is the hot side. For those that winterize their RV they are used to drain all the water from the fresh water system.

How do you get rid of the poop pyramid in RV black?

To eliminate a poop pyramid, you need to get water into your black tank. The first thing you should do is close the black tank valve and get as much water into the black tank as possible. If the poop pyramid prohibits you from putting water into the tank, get some tank cleaner to pour down into the sewer drain.

What is RV sewer pipe made of?

Little more than a length of thin, flexible plastic hose reinforced with wire, the lines are adequate for short-term use but break down quickly in harsh weather. Using PVC pipe, some simple tools and a couple of flexible rubber connectors, you can make a hard, durable sewer line that will stand up to the long haul.

Can you put bleach in RV black water tank?

Cleaning your black water holding tank is best done when you’re fully hooked up and have both a water and sewer connection. Avoid using bleach or antifreeze for your deep clean, as both of these can dry out rubber seals and ultimately ruin your sewage system.

How do you drain black water from an RV?

Always drain the black water first. Ensure the other end of your hose is tightly fitted into a city sewer inlet. Pull the black water valve and let the tank drain completely. Once you can hear that it’s completely empty (no more sounds of water rushing through), close the valve and pull the gray water valve.

Should I empty my RV fresh water tank?

Instead of draining into a municipal sewer or septic system, the wastewater in your RV drains into one of two holding tanks. Not only do these tanks need to be emptied regularly to prevent them from overflowing, but they also need to be maintained to keep them from developing any offensive odors.

What is RV low point drain?

The low point drain drains the water system. Meaning its the lowest point in the water system. Looks like you didn’t put the cap on tight enough.

How often do you need to dump RV waste?

By dumping your tank every 3-5 days, you can ensure that you’re using enough water to both hydrate the bacteria and form a water barrier, which will help keep odors in check!

How long can you leave black water in RV?

You should not leave matter in your black water tank for more than a week. Your black water tank should be emptied once it’s ⅔ full and/or at the end of every trip. If that isn’t possible, make sure to add water to the tank and add a holding tank cleaning chemical to avoid odor and backup.

What is gray water in RV?

The gray tank holds any and all wastewater from your trailer or RV – this is primarily water that drains through the various sinks in your RV. This includes your kitchen sink, bathroom sink, and if you have one, your outdoor kitchen sink.

How do RVs get fresh water?

Campgrounds. One of the best places to find potable water is at the local campground. …
Travel Centers. Travel centers are another excellent place to find potable water. …
Rest Stops. Rest stops are another place you can find potable water. …
City, County, and State Parks. …
Cabela’s.

Is RV hookup water potable?

So, is your RV water actually safe to drink? The good news is that, as long as the tank and system are properly cleaned and treated, tap water in the RV is perfectly safe to drink.

How much water can an RV hold?

How many gallons of water does an RV usually hold? An average freshwater tank holds 20-100 gallons of freshwater. A class A RV will hold the most water, averaging between 75-100 gallons. Class C RVs will hold 35-60 gallons, Class Bs will hold around 20-40, and fifth wheel trailers hold about 60-80 gallons.

Why is my camper leaking water underneath?

The most common places for water to enter the RV are punctures in the roof, siding that is coming loose, or a weak seam that needs reinforcing. If you’ve had some recent damage to the RV, driving under low-hanging branches, or impact from a collision, it may be obvious to you where the hole is.

How are RV black tanks vented?

The vent stack on your black tank is essentially a straight run of 1 1/2″ PVC that is attached to a hole on the top of the black tank and extends through the roof on the RV. There is, as you know, a removable cap on the top.

Where is the vent pipe on a camper?

The RV plumbing vent is a pipe that runs upward from the top of the two water tanks to the roof of your RV, where the odors can be vented out. If your RV plumbing vents cap gets damaged or lost, you’ll notice it – quickly.

Where is the black water vent on an RV?

Most RVs have a vent under the bathroom sink, over the P-trap. Inspect this vent for clogs as well. Don’t allow the black water tank to get too full. Dump often to keep your RV fresh smelling.
