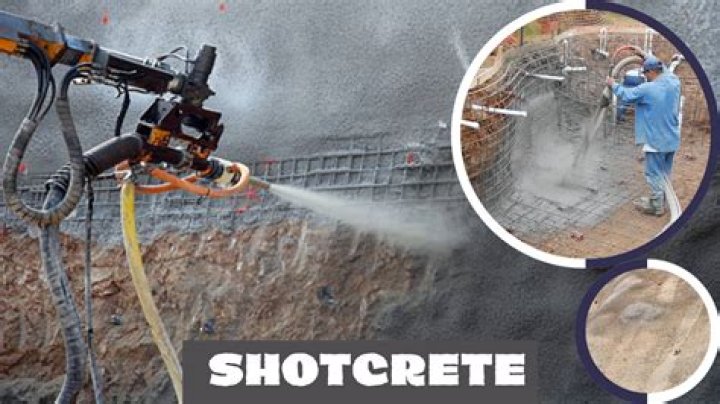

How is shotcrete installed

Shotcrete is a process in which mortar or concrete is sprayed at a high velocity to reach a certain compaction or density level. The concrete is applied through either a wet-mix or dry-mix process. … One of the advantages of the process is that the concrete gets stronger over time.

What is the benefit of shotcrete?

The use of shotcrete-sprayed concrete in construction activities makes the structure less porous which increases the bond strength and also helps in lowering the construction time and reduces costs as well.

Does shotcrete work hard?

very hard work. lasted 5 years doing shotcrete.. there are times I miss it but then I realize its probably the money I miss more not the back breaking work and abuse from management.

Can you shotcrete yourself?

DIY shotcrete is achievable for a hobbyist, owner/builder or a contractor. It is all about the speed of delivery you want to accomplish. … Before getting started, decide if you want to spray ready mix or site batched shotcrete. For most DIY shotcrete, you will be setting up for site batching/mixing the shotcrete mix.

Is shotcrete stronger than concrete?

What is Shotcrete? Frequently used in underground applications, shotcrete is a wet- or dry-mix concrete that is pneumatically propelled at high velocity through a hose and nozzle. … And because the spray application process reduces the water/cement ratio, it’s generally stronger than CIP.

What do you do after shotcrete?

A: The gunite shell must be maintained moist for at least 7 days after application is completed. The gunite should be sprayed with water using your water hose and spray nozzle. Gunite will cure better and properly if kept moist. You can apply a light mist of water hours after the gunite application is completed.

How long does it take shotcrete to dry?

Concrete, when applied using the shotcrete process, or cast-in-place, needs to cure for 7 days. Water is the best curing method (7 continuous days).

What are the advantages of wet shotcrete?

Less rebound The amount of water in the shotcrete mix, among other factors, influences rebound quantity. The wet-mix method provides more control over the shotcrete mix, reducing rebound in comparison to the dry-mix method.

Is shotcrete better than gunite?

Durability. Gunite generally lasts longer and maintains a higher quality than shotcrete. For instance, gunite tends to dry faster than shotcrete, leading to a much smoother surface and avoiding significant cracks from shrinking. Gunite can also withstand up to 9500 psi, a much higher psi than shotcrete.

What are the advantages and disadvantages of shotcrete when is shotcreting preferred over other concreting methods?

Shotcrete is more economical than conventional concrete because it requires less formwork. It only requires a small space for construction and its location. In the case of the shotcrete, cement content is high, so it is durable. It is resistant to fire, disasters, mold, worms and also has low permeability.

Article first time published on

How does RC prevent corrosion on reinforcement?

1. Cathodic protection;
2. Corrosion inhibitor admixtures; and.
3. Anti-corrosion coating.

How do you do Marbelite?

Apply the Marbelite to the pool surface beginning at the top of the walls and working your way down. Use a rounded steel trowel for the application of the material, firmly pressing the material onto the dampened pool surface with the trowel to a layer of 4 millimeters thick.

Can concrete be sprayed?

Sprayed concrete is the method by which concrete is sprayed into place, rather than the more conventionally used pouring or placing into formwork. According to the Sprayed Concrete Association other terms used include Gunite, Shot Concrete and Shotcrete. There are many applications and uses for sprayed concrete.

Is gunite and shotcrete the same?

For gunite, water is added to the dry concrete mix at the gun-shaped nozzle opening (hence the name “gunite”). … Shotcrete is different in that it is trucked to your property wet in a cement truck. The water and dry mix are combined prior to arrival and shot out of a nozzle premixed and ready to go.

How do you mix shotcrete?

Shotcrete typically consists of one part cement and four parts sand by weight with approximately 7% water by mass of dry ingredients.

Where is shotcrete used?

Because it can take any shape, is easily coloured, and can be sculptured after application, shotcrete is used for a variety of fancy concrete structures, including artificial rock walls, zoo enclosures, canopy roofs, refractory linings, pools, and dams.

What is dry pack?

Dry-Pack is a combination of Portland cement and sand passing a No. 16 sieve mixed with just enough water to hydrate the cement. It is also called deck mud or floor mud. Typically used to :- Repair small areas that are deeper than they are wide.

Is shotcrete cheaper than concrete?

In addition, shotcrete — while less expensive than poured concrete — is more expensive than gunite. Finally, shotcrete takes a significant amount of time as compared to poured concrete, making it a less than ideal choice for large foundations, structural piers or other large projects.

How thick can shotcrete be applied?

There is no stated maximum thickness for shotcrete used in shear walls or any other type of wall. Walls have been successfully placed to a thickness of 36 in. (914 mm) for some time. The two main concerns are the heat of hydration and proper encapsulation of the reinforcing steel.

What is the cost of shotcrete?

The cost of Shotcrete is determined by per square foot, the scope of the job, and geographical location. The cost of hiring a professional contractor may be in the range of 125-195 Dollars, and it all relies on the scope of the job. The quote you get should include the delivery, shooting, and forming of the Shotcrete.

How long does it take to finish pool after shotcrete?

While gunite only takes a day on average to install, this process needs three to four weeks for adequate curing. During this curing process, several other phases of the project will ensue.

What happens if you dont water shotcrete?

Lack of curing and exposure to windy, hot, or dry conditions will certainly increase the potential for shrinkage and cracking of the concrete. Lack of curing will prevent the concrete from achieving its maximum potential strength.

How often do you water shotcrete?

As soon as the concrete is set enough to walk on (which with shotcrete, that’s quick…) you can start watering it. Do it several times a day 3-4 times or more. If it starts to rain you don’t need to add to that. If you are unsure start early the morning of the day after it is poured.

How long after gunite can you tile?

Typically installed 3-4 days after gunite, the tile and coping crew will install your tile, coping, and trim or spot tile selections.

When Should I spray my concrete?

Properly curing your concrete improves strength, durability, water tightness, and resistance for many years. The first 7 days after installation you should spray the slab with water 5-10 times per day, or as often as possible. Once the concrete is poured the curing process begins immediately.

How many times a day should you water gunite?

Maintaining Your Gunite Shell Not enough watering throughout the day will leave a negative impact on your pool’s shell. It is recommended you water 3-5 times daily for about a week. Your concrete pool will thank you!

What is the cost of a 20x40 gunite pool?

Pool Size (feet)Price14x28$19,600 – $48,75016×32$25,600 – $66,56018×36$32,400 – $84,24020×40$40,000 – $104,000

What are pools sprayed with?

Gunite and shotcrete are forms of pneumatically applied concrete, meaning they are sprayed on with a high-pressure air hose. Crews shoot the material over a reinforcing network of steel bars.

What is shotcrete for a pool?

Shotcrete always refers to wet concrete that’s already fully mixed before it’s shot out of a hose. Gunite is a dry concrete mix that only mixes with water at the end of the nozzle as it’s being sprayed onto its final surface.

What are the disadvantages of shotcrete?

The primary disadvantage of shotcrete compared to poured concrete is the amount of time that it takes when used for large foundations, structural piers, and other structures with large cross-sections, compared to using conventional forms for these large structures.

What is concrete scaling?

Scaling is defined as a general loss of surface mortar or mortar surrounding the coarse aggregate particles on a concrete surface. … There is a distinct chain of responsibility for the production of scale resistant concrete.
