How is C channel measured

Measure the depth of the C-channel beam by placing a measuring tape on the flat long side of the beam in the center of the C. Even if the side is laying flat and is not vertical, the middle part of the C is still referred to as the height of the C-channel in order to simplify identification.

What is the standard length of C channel?

MaterialMild SteelSize3-6 meter (Length)ShapeCUsage/ApplicationConstructionSurface FinishingGalvanized

What weight can 4 C channels hold?

Type and SizeMemberAllowable Concentrated Load ( lbs ) At Center Of Span ( ft. )Single Angle5″ x 3″ x 3/8″2100Single Angle6″ x 4″ x 3/8″3140Single Channel4″ @ 5.4 #1510Single Channel5″ @ 6.7 #2290

How is strength of C channel calculated?

The c-channel yield strength=248MPa, Ultimate tensile strength=841MPa. The c-channel then is lifted by a crane of 10,000kg using sling (T1 and T2 with weight 3,000kg each). This might be a stupid statement/question. With a 22kg of c-channel, it is so sure cannot lift the 6,000kg.

Which way is C Channel stronger?

C-Channel. . . . is a really popular beam profile for auxiliary beams. Though we also see it for main beams, it’s a lot more common for cross members and other places. In the vertical direction (as oriented for the beam profile chart image above), C-Channel is typically stronger for the weight than tube.

How strong is C channel steel?

MECHANICAL INFORMATIONImperialMetricDensity0.282 lb/in37.8 g/ccUltimate Tensile Strength58,000psi400 MPaYield Tensile Strength47,700psi315 MPa

How is C channel steel measured?

C CHANNEL SIZES CHART FOR STEEL CHANNELS C channels are designated by the letter C followed by the nominal depth in inches and the weight in pounds per foot. Thus C 7 × 12.25 designates an American Standard C Channel with a depth of 7 inches and a nominal weight of 12.25 pounds per foot.

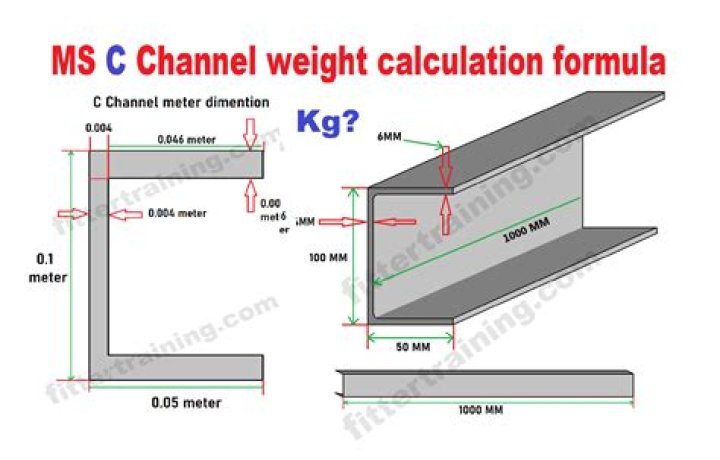

How do you calculate C-channel weight?

unit weight of ms channel calculated by formula weight = volume × density & density of steel is 7850 Kg/m3 and volume is calculated by multiplying web height × flange width × thickness.

How is channel area calculated?

The cross-sectional area is A = πD2/4 and the wetted perimeter is P = πD. Substituting into the equation RH = A/P and simplifying the expression gives: RH = D/4.

What is stronger C channel or square tubing?

The side to side strength is minimal based on the triangular principle of the tongues shape. Look at the metal as pounds per foot. A C channel the same weight as tubing has more metal on one side allowing that side to be welded correctly. 2 inch C will weld stronger in all applications then the tubing you have shown.

Article first time published on

How much weight can steel angle support?

A single angle iron that size screwed into solid wood or other solid material can support 3.9 lbs. of dead weight. If the angle iron is used for shelving, you would use at least two to hold 7.8 lbs. Three angle irons could support 11.7 lbs.

How do you calculate loading capacity of a steel beam?

1. Loads on the RCC Slab. Self-weight= concrete unit weight * Volume of concrete. = 24 * 0.1= 2.4 KN/m2 …
2. Loads on the Beam. Self-weight= concrete unit weight* beam width*beam height. =24 * 0.28*0.25= 1.68 KN/m. …
3. Compute Applied Moment. Assume partial fixity of columns. …
4. Geometry of the Original Section.

Can you bend C-channel?

The easiest channel bending process is “flanges out.” “Flanges in” channel bending can be difficult if the flanges are relatively tall. The most difficult channel bending process is “the hard way”—indeed, all else being equal, the hard way is one of the most difficult structural shapes to bend without distortion.

Is C-channel stronger than I Beam?

In ground piling applications, C-sections offer high bending in load bearing and soil friction for reliable anchoring. The C-beam maintains strength tolerances at a lower gauge than the I-beam, which results in thinner, lighter components.

What is stronger angle iron or square tubing?

Angle iron is stronger. Hot rolled VS cold rolled. Angle iron is cold roller. 3mm for example is a LOT thinker in the corner than the corners on square tubing.

What does 6 inch channel weigh?

Weight: 8.2 Lbs. Per Ft. Applications: frame work, braces, supports, cross members, etc.

What is the difference between MC and C-channel?

MC channels have smaller flange slope than “C” channels. Common applications include structural support, trailers, and other architectural uses. ASTM A36 / A36M-08 is the standard specification for carbon structural steel.

What does 8 C-Channel weigh?

Weight: 11.5 Lbs. Per Ft.

How is channel slope calculated?

Calculate the channel slope. Using the formula, slope equals change in elevation divided by ground distance. For example, if the ground distance is 11/16 or 0.69 inches and the scale factor is 1 inch equals 2,000 feet per inch, this equals 1,380 feet. The channel slope is 10 divided by 1,380, which equals 0.0072.

How is channel flow calculated?

Using the equation, V = Q/A as a definition for average flow velocity, the Manning Equation becomes: V = (1.49/n)(R2/3)(S1/2), with average flow velocity in ft/sec. In S.I. units this equation becomes: V = (1.0/n)(R2/3)(S1/2), with average velocity in m/s.

What is channel area?

In physical geography, a channel is a type of landform consisting of the outline of a path of relatively shallow and narrow body of fluid, most commonly the confine of a river, river delta or strait. The word is cognate to canal, and sometimes takes this form, e.g. the Hood Canal.

How is Ismb measured?

1. ◆Different full forms.
2. ISMB (Indian Standard medium weight beam) weight calculation formula.
3. ismb 75×40×4.8:– ismb size 75mm × 40mm × 4.8mm have weight 2.176kgs/feet or 7.14kgs/meter.
4. ismb 100×50×5:- ismb size 100mm × 50mm × 5mm have weight 2.914kgs/feet or 9.56kgs/meter.

What does 3 inch channel weigh per foot?

Weight: 3.50 Lbs. Per Ft.

What is 4 inch channel weight per foot?

Sr. No.Side(mm) x Side(mm) x Thickness(mm)Section Weight (Kg/m)1MC *40 X 32 X 54.822MC 75 X 40 X 4.87.143MC 100 X 50 X 59.564MC 125 X 65 X 5.313.1

Which is stronger angle iron or C channel?

While a bit more expensive, c-channel is significantly more rugged in most applications than equivalent quality angle iron. In projects where either is viable without introducing issues of expense or simple engineering headaches, many will prefer c-channel.

How strong is 2 square tubing?

A 2-inch x 2-inch piece of square steel tube with a wall thickness of 0.1875 inches can carry 4.32 lbs per foot of length. A 4-inch x 4-inch piece of square steel tube with a wall thickness of 0.25 inches can carry 5.41 lbs per foot of length.

Is rectangular tubing stronger than I Beam?

Rectangular tube isn’t any stronger than an I for the same top and bottom flange or tube wall thicknesses, but its prettier. Usually costs several times as much as I beams because its harder to make.

How do you determine the strength of an iron angle?

Measure the dimensions of your angle iron with a tape measure. You’ll need to know the width and depth of the bar, as well as the combined lengths of both sides. Measure the force that is working against the angle iron. Multiply that force by 3, and then multiply that product by the combined length.

How do you calculate iron angle strength?

Use the tape measure to find the depth and width of the angle iron bar, and the bar’s total length (both angled sections). Take the force pushing or pulling on the angle iron and multiply it by 3 and the total length. Square the depth and multiply it by two times the width of the iron.

Which way is angle iron the strongest?

A-iron is stronger than non-structural steel because the two perpendicular flanges work in conjunction to give angle iron cross-sectional structural integrity, resistance to bending from pressure applied from the top or bottom, left or right.

What size steel beam do I need to span 24 feet?

For 24 foot span, size of simply supported beam for 2-3 storey residential building, using thumb rule, is about 15″×18″ in which beam width is 12″ and beam depth is 15″, if width will be kept 12″, depth should increased, then beam size 12″×24″ can be used, providing with 4nos of 16mm bar at top, 4nos of 20mm bar at …
