How is bolt clamp load calculated

Clamp load (lb.) is calculated by arbitrarily assuming usable bolt strength is 75% of bolt proof load (psi) times tensile stress area (sq. in.) of threaded section of each bolt size. Higher or lower values of clamp load can be used depending on the application require- ments and the judgement of the designer.

How is clamp load measured?

Clamp load is the parameter that determines the function of a threaded joint. It is, literally, the force that is holding the joint together. It is possible to measure clamp load by inserting a load measuring washer into the application but this is necessarily a modification of the joint.

How do you calculate screw clamping force?

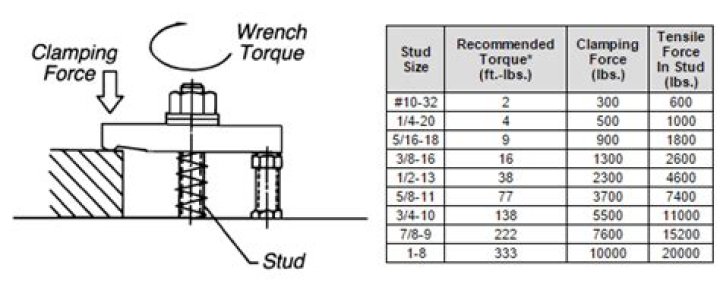

The general formula related to torque is T = KDF (1) where T is the torque, K, the nut factor, and D, the screw diameter, and F, the clamping force. T, K, and D, combine to provide the axial clamping force “F” between the two parts being assembled.

What is clamp load for bolts?

The clamp load, also called preload of a fastener, is created when a torque is applied, and so develops a tensile preload that is generally a substantial percentage of the fastener’s proof strength. Fasteners are manufactured to various standards that define, among other things, their strength.

How do you calculate bolt force?

To find the applied shear and tensile forces on a particular bolt, simply multiply the stresses by the area of the bolt being considered. If all the bolts have the same cross sectional area then the force per bolt equals the connection force divided by the number of bolts.

How is bolt tension measured?

The ultrasonic measurement based on the acoustoelastic principle is able to quantitatively measure stress levels for tightened bolts. This basic technique is done by measuring the TOF of a single longitudinal ultrasonic wave, and a commercial instrument has already been invented.

How is bolt torque calculated?

1. normal dry: K = 0.2.
2. nonplated black finish: K = 0.3.
3. zinc-plated: K = 0.2.
4. slightly lubricated: K = 0.18.
5. cadmium-plated: K = 0.16.

What is clamp load?

Glossary. Clamp Load. The compressive load induced in the joint by the installed fastener. The residual clamp load (or joint pre-tension) is the compressive load remaining in the joint after the fastener is installed. Higher clamp loads are experienced during fastener installation (pulling force).

How is clamping torque calculated?

The basic formula for torque is T = (KDP)/12, where T = torque in foot pounds, D = nominal diameter in inches, P = desire clamp load or tension in pounds, and K = coefficient of friction.

How is bolt preload calculated?

KT=0.200dnom=0.2500 inFPL=426.4 lbf

Article first time published on

How is bolt torque preload calculated?

Calculate the expected final torque from the preload : T = Fp x 0.2 x nom bolt dia.

How do you calculate maximum bolt torque?

The lowest calculated allowable tensile load of Pt, Ps, and Pi should be used to determine maximum torque. The general equation for bolt load based on applied torque is T = KFiDb where K = torque coefficient.

How do I calculate torque?

To calculate load torque, multiply the force (F) by the distance away from the rotational axis, which is the radius of the pulley (r). If the mass of the load (blue box) is 20 Newtons, and the radius of the pulley is 5 cm away, then the required torque for the application is 20 N x 0.05 m = 1 Nm.

What is the most accurate way to measure bolt tension?

SPC4™ measures the stretch of the bolt (in other words, the bolt tension), directly from the fastener. Because stretch is the force that creates clamp load, this capability makes SPC4™ the most accurate method available to monitor the clamp load of critical joints.

What is bolt Meter?

BoltMeter easily and accurately measures the elongation produced by tightening a threaded fastener, from 1/2 to 8 feet in length. Using ultrasonic measurements BoltMeter can accurately measure bolt elongation, load, stress and percentage strain.

How much can a bolt stretch?

The proportional limit for each of these bolts is essentially the yield point of the fastener. ARP sets the stretch limit for its rod bolts at roughly 75-percent of the yield point.

Is clamping force measured in pounds?

Clamp Force: The compressive force on the joint members that results from the tensile force developed in a tightened bolt. This force, not torque, is what holds your bolted joint together. … klbf (kilopounds-force): A measure of tensile force or clamp force on a bolt as it is tightened. 1,000 pounds-force.

What is bolt load factor?

Load loss in a joint can be theoretically calculated using varying formula primarily based on known data of the bolt diameter and clamp length. The resultant value of these calculations is commonly known as the load transfer factor (LTF).

How is residual bolt load calculated?

Formula to use: Residual Bolt Load = Bolt Stress x Bolt Tensile Stress Area Units: Residual Bolt Load = (N or Tons) Bolt Tensile Stress Area = (mm2 or In2) Below are tables of standard ISO Metric and Imperial Thread forms along with applicable tensile stress area’s.

How do you find the axial load of a bolt?

Axial Force Ff, by using Equation(1) Ff=0.7× y×As 0.7×112×20.1 1576[kgf] A bolt is tightened by torque, torque inclination, rotating angle, stretch measurement and other methods. The torque method is widely used due to its simplicity and convenience.

How do you calculate maximum torque?

Torque on the loop can be found using τ=NIABsinθ τ = N I A B sin ⁡ . Maximum torque occurs when θ = 90º and sin θ = 1.

How do you calculate RPM torque?

1. Torque (lb.in) = 63,025 x Power (HP) / Speed (RPM)
2. Power (HP) = Torque (lb.in) x Speed (RPM) / 63,025.
3. Torque (N.m) = 9.5488 x Power (kW) / Speed (RPM)
4. Power (kW) = Torque (N.m) x Speed (RPM) / 9.5488.

How do you calculate torque applied?

The magnitude of a torque about a fixed axis is calculated by finding the lever arm to the point where the force is applied and using the relation |→τ|=r⊥F | τ → | = r ⊥ F , where r⊥ is the perpendicular distance from the axis to the line upon which the force vector lies.

How do you calculate mass torque and distance?

The most basic way to calculate torque is to multiply the Newtons of force exerted by the meters of distance from the axis. There’s also a rotational version of this formula for 3-dimensional objects that uses the moment of inertia and angular acceleration.
