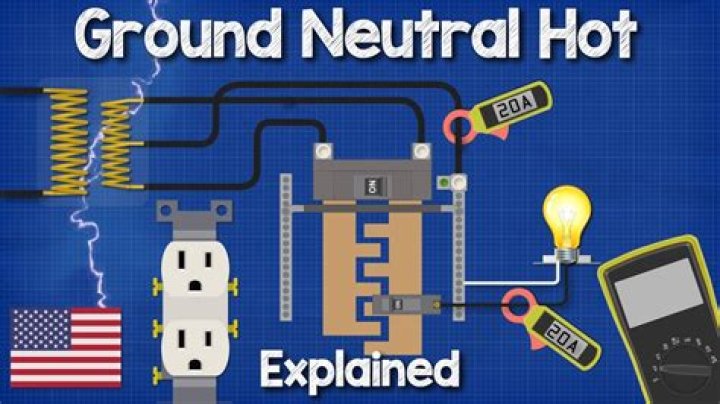

How does neutral wire work

Neutral wire carries the circuit back to the original power source. More specifically, neutral wire brings the circuit to a ground or busbar usually connected at the electrical panel. This gives currents circulation through your electrical system, which allows electricity to be fully utilized.

Does the neutral wire carry current?

A neutral wire is used to complete the flow of electricity, it acts as a return path for the hot wire current. … During normal operations, the neutral wire will carry current. We can see neutral in most of the electrical equipment, mostly in non-linear loads.

Is neutral wire necessary?

Neutral wires have the important task of returning currents to the original power source; this is a necessary function of AC power, and we need to be able to identify these wires properly and make sure we use them for the right voltage connections. Electricity is so omnipresent we often don’t think about how it works.

What happens if the neutral wire is not connected?

With a regular 120-volt AC circuit, the neutral wire provides a return path to earth ground. If the neutral wire disconnects, it would stop the flow of the electricity and break the circuit. The role of the neutral wire is to provide this path to the electrical panel to complete the circuit.

Why does neutral wire have no voltage?

The sole reason of why the neutral wire has 0 volt is that because the neutral connection is connected directly or indirectly to the earth or to the ground. Since, the earth has zero potential, the neutral wire potential goes down to the earth potential.

Can I connect neutral to ground?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.

Can the neutral wire shock you?

As others have stated, normally there is no or a very low voltage on a neutral wire and therefore the wire will not shock you. Others have noted that the neutral wire gets grounded at the circuit breaker panel, and this is the reason that the neutral conductor should have essentially zero voltage on it.

Can a circuit work without a neutral?

If there’s an open neutral, the outlets won’t work, but they will still be energized. Use a plug-in circuit tester to check for an open hot or open neutral. … An outlet or light switch with an open ground will still function, but because it lacks a safe path to earth, that device could give you a shock.

Does neutral carry current in single phase?

In single-phase, loads the neutral wire provides the return path for the current, and in balanced 3 phase loads, because they satisfy the above criteria, the currents enter and return through lines creating 0A of out of balance current. So, there is no need for a neutral wire.

What happens if neutral is not grounded?

If the grounded (neutral) service conductor is opened or not provided at all, objectionable neutral current will flow on metal parts of the electrical system and dangerous voltage will be present on the metal parts providing the potential for electric shock.

Article first time published on

Can a neutral wire be used as a hot wire?

A neutral wire returns electricity from the hot wire back to a grounded portion of the home’s electrical panel to complete the circuit. … Furthermore, neutral wires can be used as a hot wire if both ends are clearly marked with colored electrical tape (black or red) that corresponds to its repurposed function.

Why does the neutral wire not shock you?

Why Neutral Wire does not give Electric Shock? … Now, we know that neutral is always connected to the ground or earth. So when touching the neutral wire standing on the ground there is no voltage applied to our body, therefore no current flow through our body and we do not get the electric shock.

Why would my neutral wire be hot?

The most common reason why a neutral wire gets hot is due to bad connections. It means that the hot wire is either broken or connected to a hotline somewhere in the circuit. … But if the neutral is not connected, it becomes hot, and the bulb does not light up.

How much voltage is in a neutral?

In most office environments, a typical reading of neutral-to-ground voltage is about 1.5V. If the reading is high (above 2V to 3V), then the branch circuit might be overloaded. Another possibility is that the neutral in the panel is overloaded.

What happens when live wire touches neutral wire?

Answer: The live wire touches the neutral wire. – This will create a short circuit as a large current which exceeds the fuse rating will from the live (240 V) to the neutral wire (0V) as that path has very low resistance. The fuse will blow.

Should neutral and ground be bonded?

Whenever you have an auxiliary panel the neutral and ground should not be tied together because the ground wire becomes a parallel path for current with the neutral wire (any current going through the neutral wire will be shared with the ground wire because they have the same connections at both ends).

What current flows through a neutral wire?

The purpose of the neutral wire is to carry back the unbalance of the load. So in a normal (US) house of 120/240 volts single phase, if one of your hot wires is carrying 30 amps and the other is carrying 23 amps, then the neutral will have to be able to carry 7 amps to keep the system balanced.

Why does 240 volts not need a neutral?

Note: 240V in the US is split-phase and doesn’t use the 120V neutral. 240V in the UK is single phase with one live wire, one neutral (and always one earth wire). short answer: it’s because the two, 180 degrees out of phase, feed wires essentially take turns being the return wire every time the phase switches.

Why do 220 circuits not have a neutral?

Evidently 220V circuits do not need a neutral because two hot wires belong to the same circuit. And because they take turns and do not combine on the same cycle, their amplitudes differ but combine mutually in phasor angulation to arrive at 110V total complement, apiece (220 V).

Can a loose neutral wire cause a fire?

A loose neutral wire can cause abnormal arcs around its point of connection, usually resulting in the neutral wire becoming hot, burning its insulation off and even causing damage to its surroundings. Most electrical fires are caused by a loose neutral wire.

What causes a floating neutral?

A “floating” neutral occurs when the connection to the ground breaks or becomes loose, which causes the neutral bar to “float.” This can happen in your panel or between the utility and your electric panel. It can be caused by a mechanical issue or other issues like rust or corrosion.

What happens if you lose neutral?

If neutral connection is snapped or becomes loose, then either the path of out-of-balance current is broken or disturbed. This results in unequal voltages in the load phases. In case of extreme unbalance, voltage of a phase can rise almost upto line voltage.

How can I tell if I have a neutral wire without a multimeter?

For example, get a socket and light bulb and attach a couple of wires to it, then touch one to the ground or neutral and another one wire to the test. If the lamp lights then it is live else then test the lamp on live wire like wall socket to make sure that it actually lights.

How do you test if a wire is live without a tester?

Use a multimeter Using a digital multimeter is the easiest way to tell if a wire is live without a tester. It is also the safest way to test a live wire, especially if it is exposed.
