How does ICP analysis work

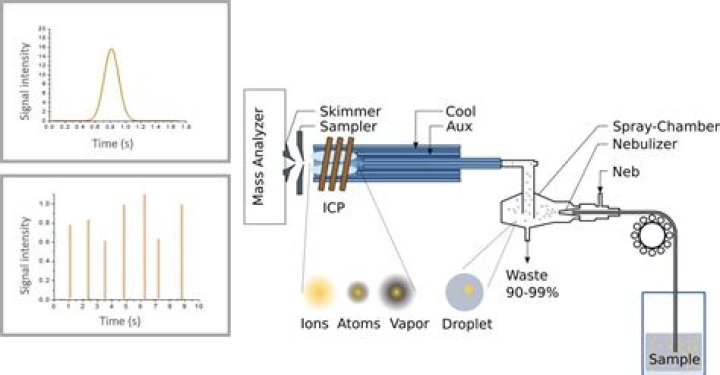

ICP analysis requires the use of liquified sample solutions, so solid samples and biological samples are often digested prior to analysis. Once the sample is liquid, the ICP uses Argon (Ar) carrier gas to aerosolize the sample sending only the smallest droplets through the chamber and into the Argon plasma torch.

How does Inductively Coupled Plasma work?

An inductively coupled plasma can be generated by directing the energy of a radio frequency generator into a suitable gas, usually ICP argon. Other plasma gases used are Helium and Nitrogen. … Coupling is achieved by generating a magnetic field by passing a high frequency electric current through a cooled induction coil.

How does AES spectroscopy work?

Atomic emission spectroscopy works by forcing a sample material to a high-energy state using a separate energy source. The wavelengths of light emitted from the sample material’s atoms are recorded, and the wavelengths are used to determine the composition of the sample material.

How does ICP-OES spectroscopy work?

The ICP-OES principle measures the amount of emitted light at each wavelength and uses this information to calculate the concentration of lead in the sample. To calibrate an ICP-OES, solutions containing known amounts of each element are measured. From this data, a calibration curve is created.

How does an ICP-MS machine work?

Inductively coupled plasma mass spectrometry (ICP-MS) is a type of mass spectrometry that uses an inductively coupled plasma to ionize the sample. It atomizes the sample and creates atomic and small polyatomic ions, which are then detected.

What is the difference between ICP and AAS?

ICP is the method of choice when you want to measure multiple elements. In a nutshell: AAS is cheaper but can only determine the concentration of a particular element. … ICP is an atomic emission technique and can be coupled to an optical spectrophotometer (ICP OES) or Mass spectrometry (ICP-MS).

What is the purpose of the ICP plasma flame?

It is a type of emission spectroscopy that uses the inductively coupled plasma to produce excited atoms and ions that emit electromagnetic radiation at wavelengths characteristic of a particular element.

What is the difference between ICP-OES and ICP MS?

ICP-OES quantitation is based on measurement of excited atoms and ions at the wavelength characteristics for the specific elements being measured. ICP-MS, however, measures an atom’s mass by mass spectrometry (MS).

What is the difference between ICP AES and ICP-OES?

Difference – ICP OES vs ICP AES The term ICP OES refers to Inductively Coupled Plasma Optical Emission Spectrometry. … The term ICP AES refers to Inductively Coupled Plasma Atomic Emission Spectrometry. This name is given because the technique is done by exciting atoms present in the sample that is going to be analyzed.

How does MP AES work?

MPAES is used for simultaneous multi-analyte determination of elements. … The basic principle is that once an atom of a specific element is excited by providing it an external energy, it emits radiation (light) in a characteristic pattern of wavelengths forming an emission spectrum, as it returns to the ground state.

Article first time published on

Why is AES surface sensitive?

Surface sensitivity in AES arises from the fact that emitted electrons usually have energies ranging from 50 eV to 3 keV and at these values, electrons have a short mean free path in a solid.

What is the sensitivity of AES?

The principal advantages of AES over other surface analysis methods are excellent spatial resolution (< 1 µm), surface sensitivity (~20 Å), and detection of light elements. Detection limits for most elements range from about 0.01 to 0.1% (atomic). AES uses a primary electron beam to excite the sample surface.

What is drift in ICP-MS?

Drift can be defined as a continuous or incremental change in response of a measuring instrument due to changes in the metrological properties of that measuring instrument [33]. Drift in sensitivity is known to affect the accuracy of ICP-MS analysis generally and can in some cases be quite severe.

What is oxide ratio in ICP-MS?

A low cerium oxide ratio is often used as an indicator of plasma robustness in ICP-MS; the 7500cx typically operates at 1% CeO/Ce, compared to around 2% or 3% CeO/ Ce typically seen on other ICP-MS instruments.

Can AES detect isotopes?

ICP-MSAESIsotope detectionYesNoCost~$150,000~$50,000Multi-element detectionYesYes

What elements can be analyzed by ICP?

AluminumAntimonyBariumCalciumCeriumChromiumErbiumEuropiumGalliumHolmiumIndiumIronLutetiumMagnesiumMercury

What can ICP-MS detect?

ICP-MS can be used to measure the individual isotopes of each element; this capability brings value to laboratories interested in one specific isotope of an element or in the ratio between two isotopes of an element.

Which is the advantage of using plasma in AES?

ICP-AES offers advantages such as fast and simultaneous determination of multielements, the determination at trace-level concentrations, and tracing little concentration changes.

What are the advantages of using axial view plasma torch in ICP-AES?

This axial-view design allows a large amount of light into the optical system, and thus makes a relatively large volume of in- formation available to process. For many analyses, this is a crucial benefit, leading to maximum sensitivity in detecting trace-ele- ment emissions.

Is AES more sensitive than AAS?

AAS is a relative method, i.e. the quantitative analysis of the element of interest in the sample, is carried out by comparison with standard solutions. … Because far more atoms are configured in the ground state (of every detectable material?), this method is considerably more sensitive in detecting elements than AES .

Why is ICP rarely used for atomic absorption spectrometry?

Serious disadvantages of an ICP as an atomic reservoir for AAS are the reduced sensitivity and lower detection power compared to flame—AAS. … An application field of ICP—AAS is the analysis of complex compounds that are difficult to dissociate into atoms using flames.

Why ICP-OES is better than AAS?

Flame atomic absorption is less sensitive than ICP-OES and it can achieve detection limits in the mg/L range. Only furnace atomic absorption can compete with the detection limits obtained with ICP-OES, but analysis time is much more important, up to 10 minutes per sample and per element.

Why is ICP-OES better than ICP?

ICP-OES is mainly used for samples with high total dissolved solids (TDS) or suspended solids and is, therefore, more robust for analyzing ground water, wastewater, soil, and solid waste. … ICP-MS, on the other hand, is especially useful for analyzing samples with low regulatory limits.

How do I read ICP-OES data?

How do you analyze ICP-OES data and what does it tell you? General guidelines for analysis of ICP-OES data are to look at the intensity of light emitted at particular wavelengths and compare that to calibration data to determine the concentration of atoms that are emitted at that particular wavelength.

What is the difference between ICP AES and ICP-MS?

While ICP-AES allows for both trace and major concentrations across a wide range of elements down to part per billion (ppb), ICP-MS provides a lower detection limit down to part per trillion (ppt).

Why argon is used in ICP-MS?

The ICP operates using an Argon plasma into which the atomised liquid sample is injected. The sample ionizes in the plasma and the ions emit light at different characteristic wavelengths which are then measured. … Impurities in Argon can cause more severe problems with the ICP-MS due to its high sensitivity.

What is plasma in MP AES?

Agilent microwave plasma atomic emission spectrometers (MP-AES) have higher sensitivity, lower detection limits (down to sub-ppb levels) and are faster than conventional flame atomic absorption (FAA).

Does MP AES use argon?

MP-AES uses nitrogen plasma instead of argon plasma, which is used in ICP-OES.

What is microwave induced plasma?

A microwave induced plasma is another atomic emission source. Typically, a 2.45 GHz microwave generator (magnetron) produces a wave that travels through a cable and is focused via a tuning system where a torch sits in the center of a cavity. … Remember the plasma has a high electron density.

What is the maximum depth of AES?

In AES, the collection depth is limited to 1-5 nm due to the small escape depth of electrons, which permits analysis of the first 2 – 10 atomic layers.

Which elements can be detected by AES?

AES provides information about the elemental concentration with very little data on chemical bonds. All elements except hydrogen and helium can release Auger electrons and be identified.
