How does fire damper work

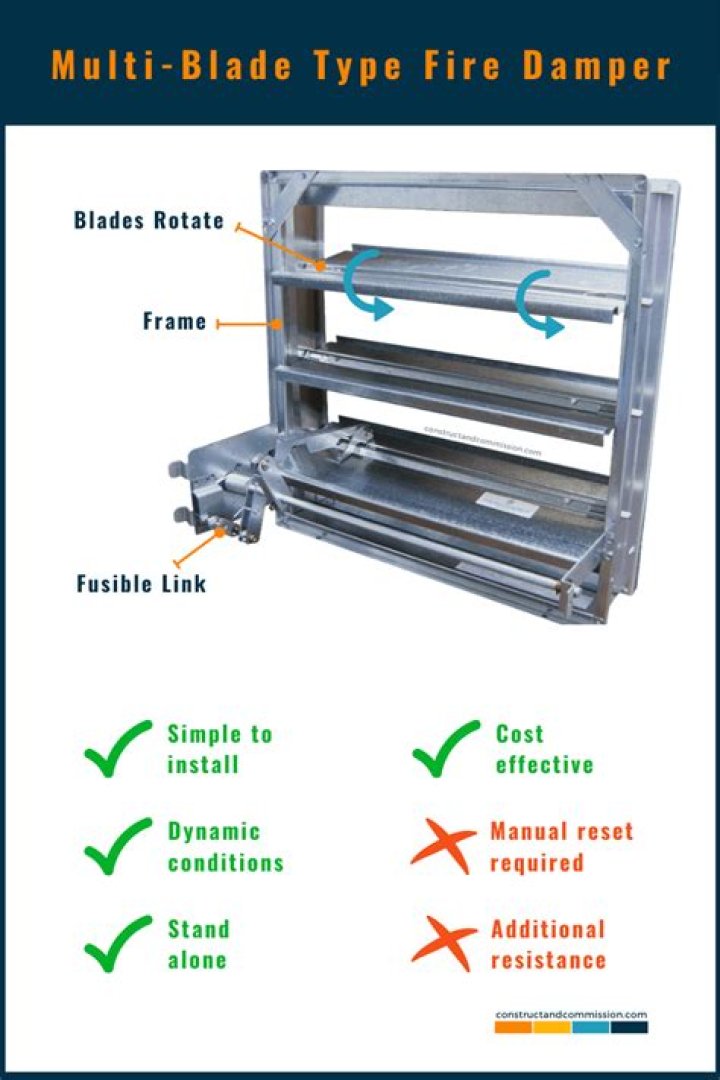

In general a fire damper works when heat from a fire causes the normal temperature of a room to rise to approximately 165 degrees Fahrenheit i.e. it is designed to close automatically on the detection of heat. The fusible link which is attached to the damper melts causing the dampers’ door to close.

How does a fire and smoke damper work?

Fire dampers respond to heat, when the temperature reaches a set point the damper slams shut. Smoke dampers respond to the detection of smoke, and close automatically. … They resist the passage of smoke, toxic gases and air through a fire barrier.

Where should fire dampers be placed?

Location: Fire dampers are installed in or near the wall or floor, at the point of duct penetration, to retain the integrity and fire rating of a wall or floor whether it is a ducted or open-ple- num return application.

How does the damper work?

Dampers are plate-shaped device which opens or close to regulate the amount of air that passes through the duct and vents. Making adjustments on the damper affects the indoor temperature by pushing cold or hot air into some areas or sections of the house.

Should fire dampers be open or closed?

You need to open the damper when you start a fire to allow for proper airflow and let the smoke out. A closed damper can restrict airflow and become a safety issue since smoke would fill your house.

When should fire dampers be used?

Fire Dampers are used in air transfer openings, ducts and other places where fire rated structures (e.g. walls, floors or other fire barriers) are penetrated.

How do you test a fire damper?

To test if a fire damper is working efficiently, one of the team will release the fire damper manually to ensure it closes fully. In cases of fire the high heat should release the fusible link and close the fire damper to prevent the fire spreading.

What's the difference between damper and dampener?

As nouns the difference between damper and dampener is that damper is something that damps or checks: while dampener is a device that moistens or dampens something.

Can you leave damper open overnight?

Leave the damper open overnight. Yes, you will lose some heat up the flue, but you will save the occupants of the home from poisoning by colorless, odorless carbon monoxide. … Only when they are completely cold to the touch is it safe to shut the fireplace damper.

Is a damper and flue the same thing?

A damper is located in the flue of your chimney. The flue is where the smoke escapes when the fire is going. Dampers are placed inside of the flue to help control ventilation. Your damper should have a chain or handle that you can access in order to open and close it.

Article first time published on

How is a fire damper installed?

Fire dampers are installed in ducts passing through or in air outlet openings terminating at shaft walls, fire barriers (such as an occupancy separation wall, horizontal exit walls, corridor walls, corridor ceilings, floor-ceiling assemblies) and other fire resistance–rated assemblies as required by a building or life …

Do fire dampers need to be monitored?

Dampers must be installed per International Building Code (IBC) and National Fire Pro- tection Association (NFPA) Standard 1053. Code requires that all combination fire/smoke dampers be inspected and tested prior to occupancy and then tested again, one year later.

Do fire dampers stop smoke?

Whilst fire dampers function to help stop the passage of fire, smoke dampers work in a similar way to preserve the integrity of physical smoke barriers e.g. floors and walls. … They close upon the detection of smoke and prevent the circulation of smoke and air through the duct or ventilation opening.

How do you tell if the damper is open or closed?

Before lighting a fire, you can tell if the damper is open by placing your hand into the fireplace. If you feel a draft coming down the chimney, it is a good indicator that the damper is open. If you don’t feel any cold air coming down the chimney, it means that the damper is closed.

Should fireplace damper be closed when not in use?

The damper should always be fully open before lighting a fire and when the fireplace is in use. Close it when it’s not it use. … The damper should be kept open until all embers are finished burning to prevent smoke from escaping into the home. When the fireplace is not in use, the damper should always be closed.

How do you use a flue damper?

1. Open the fireplace damper all the way when starting a fire.
2. Let the fire burn for a few minutes then adjust the damper so that it is partially closed (about half way) to see how it affects the fire.

How do you reset a fire damper?

To reset a damper, each stainless-steel blade is repositioned by pushing back the latch under spring tension. Once all the blades have been pushed back, the latch springs out to secure them.

What is a fire damper actuator?

Belimo safety actuators for fire dampers automatically move to their safety position in case of fire and keep dampers closed during the fire. They offer the best protection against the spread of fire and smoke through ducts.

How often do fire dampers need testing?

NFPA 105(10), Sec. 6.5. 2 requires that each damper be tested and inspected 1 year after installation and that the test and inspection frequency then be every 4 years, except for hospitals, where the frequency is allowed to be every 6 years.

Are fire dampers required in 30 minute walls?

As an alternative to this, a fire rated ceiling having a minimum fire resistance of 30 minutes (including light fittings) may be used (Figure 15 ii). When ducts serve a hazard room, then fire dampers are required. (Figure 15 iii).

Does a 1 hour fire rated wall require a fire damper?

Q: Are fire dampers required in one-hour fire-rated walls if the facility is fully sprinkled? A: According to NFPA 90A (1999 edition), one-hour fire-rated barriers do not require fire dampers in fully ducted HVAC systems, unless the one-hour fire-rated barrier is a vertical shaft.

Do smoke dampers need to be on emergency power?

Either emergency power should be provided or smoke dampers should be arranged for fail-safe closure upon failure of power to the actuator. … Both the IBC and NFPA require that adequate access be provided to allow inspection and that maintenance of the smoke damper be provided.

Should damper be open or closed in summer?

Even if you have a chimney cap, it is a good idea to keep the damper closed in the summer. Chimney caps can become damaged creating a pathway for rainwater or pests to get into your chimney. Closing the damper will ensure that they can’t get into your home through the fireplace.

Can you close damper with embers?

A fireplace damper should always be kept open while the fire is burning. Furthermore, keep the damper open until all the embers are done burning. Smoke and dangerous carbon monoxide can enter the house. Once the ember bed is completely out, close the damper.

Should damper be open or closed with gas logs?

Because gas-log fires produce copious amounts of carbon monoxide, they have to vent outside in a fail-safe manner. That’s why there is, or should be, a keep-open device attached to the damper in gas-log fireplaces. … Do not close a fireplace damper until the fire is completely out.

Can damper be used as a verb?

However, one of the meanings given for “dampen” is “to deaden, reduce or lessen”, and a similar meaning given for “damp” is “to check or reduce”. The verb form of both words can also mean “to moisten”.

What is vibration damper?

Vibration damping is a term used in ergonomic, industrial, and electronic applications where there is a need to lower the amount of energy a system produces. Once vibration has been damped, energy is transferred to appropriate channels and a reduction in noise propagation occurs.

What does it mean to put a damper on someone?

Definition of put a damper on : to make (something) less strong, active, or exciting His bad mood put a damper on the celebration. He was putting a bit of a damper on her spirits.

How much does it cost to fix a fireplace damper?

The average cost to repair or replace the damper in your fireplace or chimney is around $60 for damper door replacement only, with DIY installation. If the frame needs to be replaced as well, plan on $350-$400 and a Pro to do the job.

How do I start a fire in my fireplace without smoke?

1. Use the right firewood.
2. Open the damper.
3. Avoid fires on windy days.
4. Build a top down fire.
5. Call a chimney sweep.

Why does my wood stove have two dampers?

Modern Stoves Open both front dampers completely before starting a fire. Modern, efficient wood stoves have dampers below the firebox, or combustion chamber, to supply air directly to the fuel source as well as an additional damper on the door to supply air to allow combustion of gasses released by the burning wood.
