How does an IAC valve work

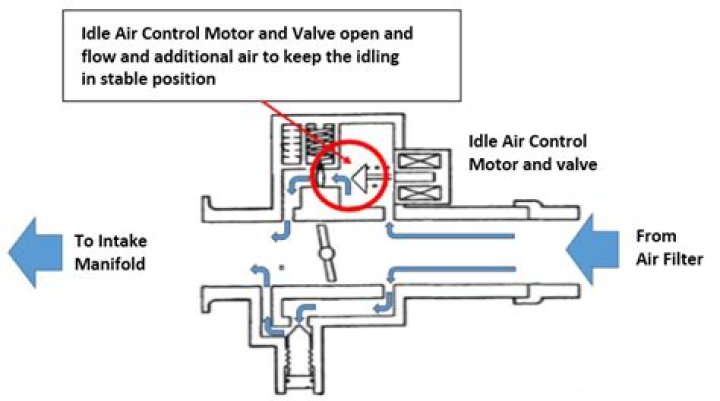

An idle air control valve literally bypasses air around a closed throttle plate so the engine can get air at idle. Because it bypasses air, it’s also called an air bypass valve. … That allowed more air to pass, create more suction, and move more gas into the cold engine.

What are the symptoms of a bad idle air control valve?

Irregular Idle Speed. …
Check Engine Light Illuminated. …
Rough Engine Idle. …
Engine Stalling. …
Stalling Under Load. …
How To test the coil driver circuits in the (IAC) valve:

How do you reset your idle air control valve?

Turn the ignition ON and leave on for several seconds then turn the ignition OFF to allow the ECM to reset the IAC valve. You should be good to go.

How do you test an IAC valve?

Open the hood of your vehicle. …
Pull the electrical plug off the control valve. …
Take out the idle control valve and flip it over. …
Take your multimeter and set it to “Ohms.”
One multimeter lead should touch one end of the valve terminal, and the other lead should do the same for the other end.

What happens if idle air control valve is stuck open?

Q: What happens if idle air control valve is stuck open? If a car’s idle air control valve is stuck open, it will create a rich air-fuel ratio while the vehicle idles. Therefore, the car’s engine may start well while warm and run until it reaches a high enough RPM.

Can a bad idle air control valve cause stalling?

When the idle air control valve fails, it inhibits the flow of air through the engine. When the car can’t receive air, it leads to engine stalling. The severity of this symptom can range from occasional stalling at first, to stalling immediately after ignition.

Can a bad idle air control valve cause misfire?

IT CANT CAUSE A MISFIRE UNLESS YOU HAVE A LEAK AROUND THE INTAKE MANIFOLD TO IDLE VALVE SEAL.

How do I clean my idle air control valve without removing it?

Prepare the working area. …
Locate the idle air control valve. …
Remove the filter box and the air duct. …
Disconnect the clamps that connect the air duct to the throttle body. …
Locate the passage to the idle air control valve. …
Spray the hole with throttle body cleaner.

Can a IAC valve be cleaned?

How do you clean an IAC valve? After relocating the IAC valve, you need to unscrew it and detach all the wires. You can clean it by soaking it in gasoline and blowing compressed air into it. Then, reattach it with the screws and reconnect the wires.

Can idle air control valve cause no start?

4. the car won’t start: in extreme cases, the iac valve may cause too much or too little air from entering the engine when you turn the ignition, resulting in engine that cranks but doesn’t start.

Article first time published on

Will a bad idle air control valve throw a code?

If the module detects a problem with the way the IAC is behaving, it will turn on the check engine light and store a corresponding diagnostic trouble code (DTC) in its memory.

Can an idle air control valve cause shifting problems?

The IAC valve should not effect trans shift from 2nd to 3rd gear. If you experience stalling from a cold start or low idle speed or stalling when the headlights, air conditioning and or steering is cranked fully to one side, address the IAC problem first.

What causes P0300 code?

There are many possible causes of a P0300 trouble code: Ignition system problems (e.g. a bad distributor or worn spark plugs) Fuel delivery issues (e.g. a weak fuel pump or clogged fuel injectors) Engine mechanical problems (e.g. a failed head gasket or loose timing chain)

What sensors can cause misfire?

If an oxygen sensor or mass airflow sensor is failing, it could give incorrect data to your engine’s computer, causing the misfire. When a vacuum line is broken, it can cause a fuel-injected motor to misfire.

How long does an idle air control valve last?

In general, you will need to replace the IAC valve every three or four years. This will keep carbon from accumulating in the valve and causing you problems. The most common sign that your IAC valve is malfunctioning is that your engine will stall.

How much does it cost to replace an IAC valve?

The replacement cost of an idle control valve is anywhere from $120 to $500. The cost of the parts alone will be between $70 and $400+, depending on the make and model of your vehicle. The labor cost should only be around $50 to $100 because it doesn’t take that long to remove and replace the old idle control valve.

Can you clean IAC valve with carb cleaner?

Hold the valve pointed downward, and spray the pointed end of the valve with carburetor cleaner, and wipe it clean. (Don’t allow the carburetor cleaner to drip into the housing.) Repeat until all the carbon is removed.

What is IACV Honda?

An idle air control valve (IACV) adjusts a car’s idle depending on the amount of air that is entering the engine. The car’s computer takes readings of idle control adjustments and regulates the car’s rpm accordingly.

What causes idling to be high?

In modern vehicles, engine idle speed is most often controlled by the idle air control (IAC) motor. … When your car’s throttle is malfunctioning, this can cause your car to stall or idle high. Often this is a result of dirt buildup in the air intake. Other times it can be a problem with a cracked intake tube.

Where is the idle control sensor located?

Locating the Idle Air Control Valve The IACV is usually located on the intake manifold near the back of the throttle body.

What should IAC be at idle?

The typical consumer car will idle somewhere in the range of 500-1000 RPM, depending on the vehicle. … Consult your owner’s manual to find your specific car’s normal speed. High-strung performance cars may have higher idles, and motorcycles have idles that range between 2,500-4,000 RPM.

What controls engine idle speed?

Idle speed is controlled by using an electronically controlled throttle bypass valve, as seen in Fig. 6.6, which allows air to flow around the throttle plate and produces the same effect as if the throttle had been slightly opened such that sufficient. flows to maintain engine operation.
