How does an aquastat work

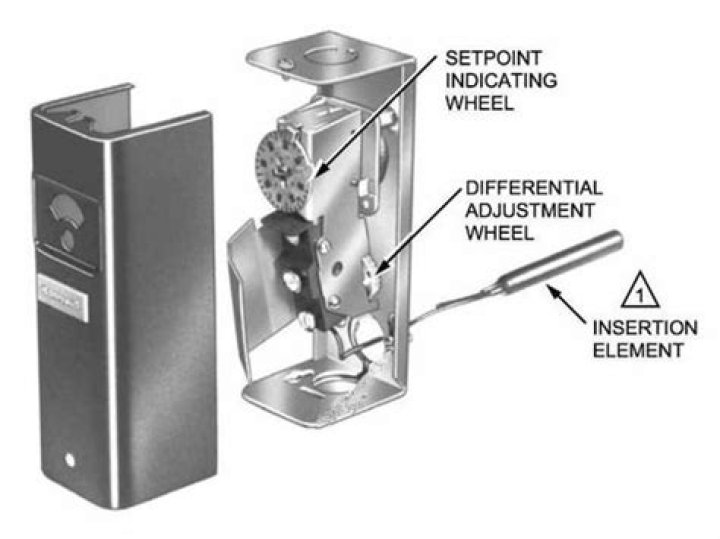

The aquastat monitors the water temperature in the boiler through the use of a copper bulb that stays in contact with the water inside the boiler and that shuts down the boiler automatically if the low- or high-temperature set point is exceeded.

What is the function of the aquastat relay?

An aquastat is just a switch that turns the boiler on and off to maintain the right water temperature.

How much does an aquastat cost?

List Price:$190.18 DetailsPrice:$139.00You Save:$51.18 (27%)

How do I know if my aquastat boiler is bad?

Check circulator terminals: If voltage is everywhere it should be and a relay is clicking constantly OR a transformer is buzzing, those component(s) are probably bad. Separately at RELAY CONTROL SWITCHES using a water pump pressure control switch as an example we discuss clicking and chattering relay switches.

What is a aquastat well?

Honeywell Aquastat L4006A is an immersion type device for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. … Honeywell L4006A1678 is used for high limit or low limit control.

How does thermostat control boiler?

It uses a sensor to monitor the temperature of your home, and consequently it keeps an eye on what your boiler is up to. If your room thermostat senses that your home has reached its target temperature, it will switch the central heating off. Once the temperature drops, it’ll fire up the boiler again.

What does an outdoor reset control do?

The outdoor reset control “tells” the boiler what the actual, real-time outdoor temperature is. This allows the boiler to respond to the outdoor temperature by raising or lowering the boiler’s supply water temperature being delivered to your heating system.

How do I set up my electronic Aquastat?

To discourage unauthorized changing of Aquastat® settings, a procedure to enter the adjustment mode is required. To enter the adjustment mode, press the UP, DOWN, and I buttons simultaneously for three seconds. Press the I button until the feature requiring adjustment is displayed: HL – High Limit.

How a hydronic heating system works?

Hydronic heating works by using the efficient transfer of heat through water. Since water conducts heat more easily than air, less energy is used to spread heat throughout the house. A heat source such as a boiler transfers heat through pipes that are connected to wall panels or placed underneath your floor.

What is an operating Pressuretrol?

A pressuretrol is a control used to control a steam boiler, by setting when the boiler should begin and end firing based on steam pressure.

Article first time published on

How much does it cost to replace an aquastat on a boiler?

replace a boiler Aquastat relay – $ 700. replace inducer blower motor – starts @ $ 600. Replace contact Relay -start @ $400.

What might be the cause of no heat in a hydronic heating system?

Common reasons for your radiator not heating include: Air is trapped in lines or in the radiator: Bleed air from a cool radiator by opening the radiator bleed valve at top of the radiator. When water squirts from the radiator, close the valve. The zone valve is faulty: Check the zone valve for proper operation.

Where is the aquastat on a boiler?

Aquastat is the gray box on the left while the circulator is the black pump on the right. Aquastat Temperature Control – The boiler aquastat controls the temperature of the water inside the boiler jacket.

What is an immersion well?

Also known as immersion wells, aquastat wells, and bulb wells, they consist of a tube that’s closed at one end and mounted in the stream. The temperature sensor inserts into the open end of the tube, which is typically in the open air outside the pipe or vessel.

What is a boiler aquastat relay?

They Honeywell Aquastat Relay (L8148E1265) provides total convenience and control for a range of installations. This is an immersion-type controller that combines high limit protection with switching relay control of the burner and circulator motors.

What is a low water cutout?

A low-water cutoff is a mechanical device (usually a float switch) that is used to turn off the burner or shut off fuel to a boiler to prevent it from running once the water drops below a certain point. If a boiler is “dry-fired” (burned without water in it) it can suffer rupture or catastrophic failure.

What should you do if a bulb does not fit snugly into an immersion well?

Heat conductive compound: For immersion wells that are not a snug fit to the sensor probe, use a thermal-conductive compound such as Honeywell’s Tradeline 107408 Heat Conductive Compound [grease] discussed here.

What is outdoor reset curve?

Outdoor reset is a technology that correlates boiler settings with the outdoor temperature in one spot outside the building. The purpose of this match-up is to increase efficiency by lowering systemic losses of energy that naturally occur from the production and distribution of thermal energy.

What is heat reset?

Hot water reset, also called outdoor reset (ODR), is an energy-saving automatic control algorithm for heating boilers that are typically fired with fuel oil or natural gas. … Hot water reset reduces the energy output by the heating system to approximately balance it against the energy lost as the building cools.

What is boiler reset control?

A Boiler Reset Control is a devise that automatically controls the boiler water temperature according to a software program based on outdoor temperature. The water can be run a little cooler during fall and spring, and a little hotter during the coldest parts of the winter.

Can you run a boiler without a thermostat?

Quite surprised that if it’s a new boiler there is no thermostat as it’s part of building regs that all new installs should have one along with TRV’s. The dial on the front controls the temperature the boiler raises the water to before it shuts off – essentially a high limit stat.

Can I leave my boiler on continuously?

Can I leave my boiler on continuously? You can, but it will cost you more. Once your water reaches a certain temperature, the water heater will turn off. It will turn back on again when the water cools.

Does hydronic heating use a lot of water?

Whilst Hydronic heating systems use water to provide heat, the water is constantly recycled and circulated through the system having no further demands on water usage apart from only requiring a small amount of water to top up the system at yearly service intervals.

Does hydronic heating use gas or electricity?

Hydronic heating provides homeowners with the option of choosing a suitable design for their individual needs. Versatility stems from the choice of using natural gas, solid fuel, propane or electricity as your local fuel source. While gas is the most common choice, the choice is still up to you.

What is the most efficient hydronic heating system?

Copper fin-tube radiators (commonly called baseboard radiators) are probably the most common application of residential hydronic heat. They’re cost effective, easy to install, and leave nothing to be desired when it comes to comfort.

How many heating elements are in our electric boilers?

Blowers (large fans) in electric furnaces move air over a stack of three to seven electric resistance coils, called elements, each of which are typically rated at five kilowatts. The furnace’s heating elements activate in stages to avoid overloading the home’s electrical system.

What temperature should my oil furnace be set at?

In the winter months the U.S. Department of Energy recommends setting a thermostat to 68 degrees while everyone is home during the day, and then programming the thermostat to lower the temperature by 10 to 15 degrees while the family is out during the day or asleep at night.

What is ZC and ZR terminals?

When an aquastat has the ZC and ZR terminals, the ZC is connected to the low temperature switch of the aquastat and to the ZC terminal of the Taco control. … The ZR is a 120 Volt supply to the burner circuit to fire the boiler, but this goes through the high limit switch to control the boiler water temperature.

What is the differential setting on an Aquastat?

When boiler temperature is rising: on an aquastat control, the “DIFF” or differential control dial specifies the amount above the LO or “Low Limit” to which boiler temperature must rise before the burner will turn off and the circulator will be allowed to run.

How do I reset my Honeywell Aquastat?

When the temperature of the controlled medium drops to the high limit setting minus differential, push the manual reset button and the system should be operative again. Reset control to proper high limit setting.

What does a Vaporstat do?

A vaporstat is a very accurate (and more expensive) control that senses ounces of pressure rather than pounds. … Just remember that steam pressure is a function of pipe size and condition, and the steam load.
