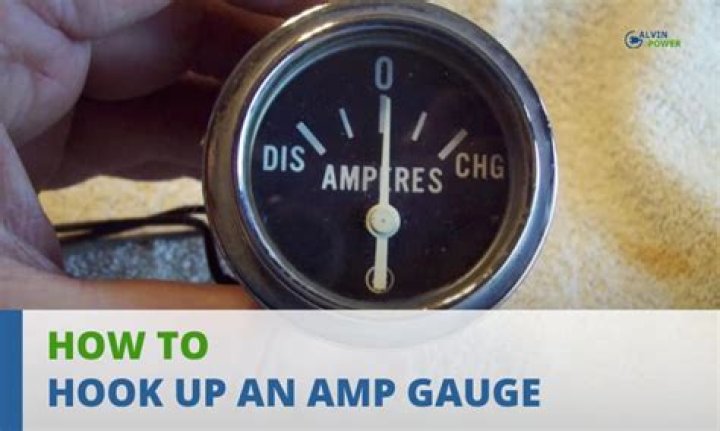

How does an amp gauge work

An amp gauge measures the actual amount of electrical current flowing into or out of the battery. The amp gauge needle will move to the (+) when the generator output is recharging the battery.

What should my amp gauge read?

Readings of 14 to 14.5 volts on the gauge when as a good sign. This is typical of a properly operating charging system. … The ammeter gauge should read a little greater than zero when the engine is on and the system is functioning properly.

What does an ammeter tell you?

An ammeter measures the electric current in a circuit. The name is derived from the name for the SI unit for electric current, amperes (A). In order for an ammeter to measure a device’s current, it must be connected in series to that device.

What is the difference between a amp gauge and a volt gauge?

A voltmeter and ammeter are to an electrical system what a pressure gauge and a flow gauge are to an oil pressure system: A voltmeter measures electrical pressure in volts; an ammeter measures electrical flow in amps. “Pressure” or volts is a much more useful indication than “flow” or amps.

Will an amp gauge work with an alternator?

So… if your antique vehicle came with an amp gauge, leave it in there. It will work fine even with an alternator.

What are the signs of an alternator going bad?

Dim or Overly Bright Lights. …
Dead Battery. …
Slow or Malfunctioning Accessories. …
Trouble Starting or Frequent Stalling. …
Growling or Whining Noises. …
Smell of Burning Rubber or Wires. …
Battery Warning Light on Dash.

What is ammeter shunt?

An ammeter shunt is a very low-resistance connection between two points in an electric circuit that forms an alternative path for a portion of the current. Shunt voltage drop is used in conjunction with an ammeter to measure amperage of a circuit.

What are the symptoms of a failing alternator?

Car Won’t Start. A dead battery almost always lies behind a car that won’t start. …
Engine Stalling. A dead alternator almost always leads to a car that won’t start. …
Electrical Issues. A dying alternator can lead to a wide range of other electrical issues. …
Unusual Sounds.

What causes battery gauge to drop?

At idle, vehicle electrical loads may exceed the low speed current (amperage) output of the generator and when this happens the shortfall comes from the battery. This will result in a drop in the electrical system voltage as the battery delivers the additional electrical current to meet the demand.

Is the alternator a generator?

An alternator is a type of electric generator used in modern automobiles to charge the battery and to power the electrical system when its engine is running.

Article first time published on

How do you read a battery gauge?

Check the reading. A fully charged battery will typically display a voltmeter reading of about 12.6 to 12.8 volts. If your voltmeter is showing a voltage anywhere between 12.4 and 12.8, that means your battery is in good shape. Any voltage above 12.9 volts is a good indicator that your battery has excessive voltage.

Does an ammeter measure amps?

An ammeter /ˈamɪtə/ (abbreviation of Ampere meter) is a measuring instrument used to measure the current in a circuit. Electric currents are measured in Amperes (A), hence the name. The ammeter is usually connected in series with the circuit in which the current is to be measured.

Is an ammeter grounded?

An ammeter can be placed in a 12 or 24 volt DC system. … Ground on the ammeter is for the light only. The gauge part number is located on the circum- ference of the housing. The ammeter can be used in a dual installation application, but the two ammeters MUST be wired in series to each other.

How does an automotive ammeter work?

Back in the good ol’ days, all cars had ammeters. This type of gauge tells you how much and in which direction the electricity is flowing. … Instead of reading electrical flow, it reads voltage. This means the gauge will measure voltage across a ground and a positive wire.

How can I tell what gauge my amp is?

Turn your multimeter to OHMS, disconnect the battery ground cable, and probe the 2 terminals of the ammeter. If you have continuity the gauge MAY be good. If you have NO continuity the gauge is definitely BAD.

What is volt gauge in car for?

The battery gauge, also known as the “voltage gauge”, simply measures battery voltage. You will usually see a small picture of a battery on this gauge. … If the gauge is numbered and the engine is running, a reading of “12” on the gauge indicates a charging problem.

How shunt is connected with ammeter?

The shunt connects in parallel to the ammeter because of which the voltage drops across the meter and shunt remain the same. Thus, the movement of the pointer is not affected by the shunt.

Do I need a battery shunt?

For precise monitoring of the service (house or main) battery bank, a shunt is necessary. … If you have separate batteries that you only use to start your engines, monitoring only battery voltage will be enough in most cases.

What is Multirange ammeter?

The basic idea of a multirange ammeter is to make the meter usable over a wide range of voltages. In order to accomplish this, each range must utilize a different shunt resistance. The example give in this text is that of a two-range meter. … Figure 144 shows the schematic of an ammeter with two selectable ranges.

How do you tell if it's your battery or alternator?

If your engine won’t turn over or takes far longer than usual, it’s time to grab the jumper cables and attempt a jump-start. If your engine starts and stays running but won’t start again later, it’s likely a battery problem. If your vehicle immediately stalls, it’s probably a bad alternator.

How do I check my car alternator?

Get a multimeter.
Set your multimeter to DCV (DC Volts) above 15.
Make sure your alternator’s positive and negative terminals are clean.
Put the multimeter’s black cable to the negative terminal and the red cable to the positive terminal.
Look for an ideal alternator reading of around 12.6.

How do I know if its battery or alternator?

Starting and running an engine, in its simplest form, is a three-step process. … If the engine starts but dies immediately, your alternator probably isn’t keeping your battery charged. If a jump starts and keeps your car running, but the car can’t start again off of its own power, a dead battery is likely your answer.

What are the signs of a bad battery?

Dim headlights. If your car battery is failing, it’s not going to be able to fully power your vehicle’s electrical components – including your headlights. …
Clicking sound when you turn the key. …
Slow crank. …
Needing to press on the gas pedal to start. …
Backfiring.

What should your battery gauge be at?

Fully charged automotive batteries should measure at 12.6 volts or above. When the engine is running, this measurement should be 13.7 to 14.7 volts. If you don’t have a multimeter to tell you the voltage of your battery, you can do a test of your electrical system by starting the car and turning on the headlights.

Should battery voltage go down while driving?

Completely agree that this is perfectly normal behavior. The indicated voltage is a function of the battery’s state of charge and loading at the time, and what the car’s electronics are doing to charge the battery. As others have posted, it can go up to 15V or even a bit more.

Will a bad alternator drain a battery?

A corroded or defective alternator diode will faultily continue charging the circuit even when the car off. This, in turn, will drain your car battery and cause the car not to start.

Can you start a car with a bad alternator?

You actually can jumpstart a car with a bad alternator, and the car will keep running for some time, no matter how bad the alternator is, well, considering you have a good battery. This is because if the alternator is bad and not producing the voltage required, the car will be running purely off the battery.

How many DC amps can 16 gauge wire handle?

American Wire Gauge (#AWG)Length (feet)Maximum Current (amps)15161020141025148

Does an alternator make AC or DC?

Car batteries operate on one-way direct current (DC) electricity, while alternators output alternating current (AC) electricity, which occasionally flows in reverse. [6] So prior to going to the voltage regulator, power intended for the battery goes through a diode rectifier to turn into DC.

Why is an alternator better than a dynamo?

The major advantage of an alternator over a dynamo is that it is a three phase unit as compared to a single phase unit. In simple terms, alternator will give a much higher charge rate at slow speeds (idle) since on one rotation of the pulley will cut through 3 magnetic flux fields instead of just one.

Why do alternators are being used in automotive compared to DC generators?

Higher Output One of the benefits of an alternator is that its parts are more robust than what you’ll find in a DC generator. This lets them rotate more quickly without the risk of causing damage. … It also means an alternator can produce more power at lower speeds so you can get a charge even when a vehicle is idling.
