How does a standpipe work

Automatic wet standpipe systems have pressurized water in their pipes at all times. When a hose outlet is opened, water immediately flows from them, hence the word “automatic.” The practical impact is that these systems do not require firefighters to supply water and pressure to the system to make them work.

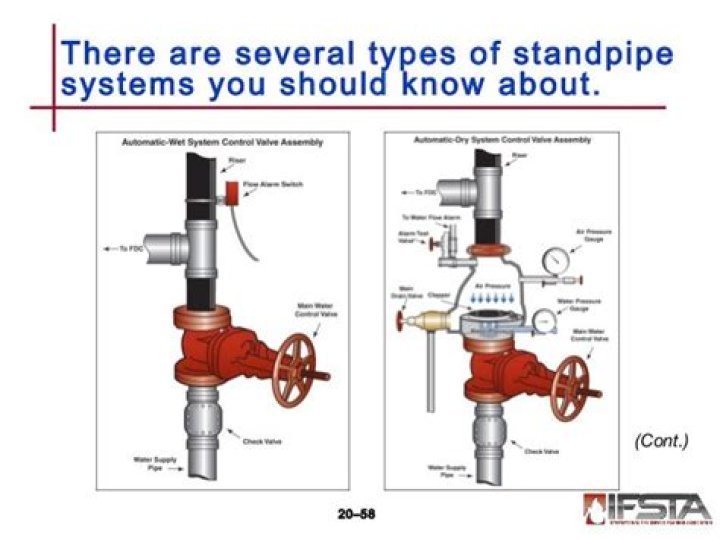

What are the 5 types of standpipe systems?

• Automatic dry standpipe system.
• Automatic wet standpipe system.
• Combined system.
• Manual dry standpipe system.
• Manual wet standpipe system.
• Semiautomatic dry standpipe system.
• Wet standpipe system.

What is a standpipe reservoir?

A standpipe is a ground-supported storage tank with a height that is greater than its diameter. Its design helps generate storage and pressure with a low upfront cost compared to elevated tank geometries.

Why are standpipes important?

Standpipe systems and fire hoses deliver essential fire protection backup for a building’s sprinkler system. In case of a fire, tenants and occasionally fire fighters will use the fire hose and accessories stored on site to protect the edifice.

What is a standpipe piezometer?

Standpipe Piezometers are designed for placement within a drilled hole to provide a filtered inlet point. Piezometers can also be manually pushed into suitable sediment, such as very loose sands at the base of a borehole, a stream, or into very loose tailings pond sediments.

What are the three classes of standpipe systems?

• Class I standpipes serve a 2.5-inch fire hose connection for fire department use. …
• Class II standpipes serve a 1.5-inch fire hose connection and are typically found in cabinets. …
• Class III standpipes have both connections of Class I and II.

What is the most common standpipe system?

A “Class I” standpipe is the most common type of fire protection standpipe system today.

Are standpipes wet or dry?

A “wet” standpipe is filled with water and is pressurized at all times. In contrast to dry standpipes, which can be used only by firefighters, wet standpipes can be used by building occupants. Wet standpipes generally already come with hoses so that building occupants may fight fires quickly.

What is a Class 3 standpipe system?

Class III – A Class III standpipe system shall provide 1 1/2 inch hose stations to supply water for use by trained person– nel and a 2 1/2 inch hose connection to supply a larger volume of water for use by fire departments and those trained in heavy fire streams.

What is a standpipe UK?

A standpipe is a free standing pipe which is fitted with a tap. You can easily attach this to a hydrant to get a water supply where there is no running water supply. A standpipe is a means of connecting to our water distribution network for a temporary water supply.

Article first time published on

Is a standpipe a fire hydrant?

Standpipe systems are a series of pipes which connect a water supply to hose connections, basically an extension of the fire hydrant system. They are designed to provide a pre-piped water system for building occupants or the fire department.

What is a water stand pipe?

Standpipes are portable hydrants designed to be connected to a fire hydrant in a water main to gain access to bulk water. All standpipes used in our area of operations must be metered and hired from us.

What is elevated water tank?

Elevated water tank, also known as a water tower, will create a pressure at the ground-level outlet of 1 kPa per 10.2 centimetres (4.0 in) or 1 psi per 2.31 feet (0.70 m) of elevation. … Pressurizing this reservoir of water creates a surge free delivery of stored water into the distribution system.

Who invented the standpipe?

The earliest American reference to a “standing column” was by William J. McAlpine in his 1850 report on the Albany water works, in which he refers to similar columns in England. The first known installation of a standpipe in America was one built in Germantown, Pennsylvania in 1851, and operated until 1872.

What is the difference between standpipe and piezometer?

If a perforated standpipe (S) and a piezometer (P) are placed both inside and outside the cofferdam, the water level inside the standpipes simply represents the level of the free groundwater table, whereas the water level inside the piezometers represents the pore water pressure at the depth of the piezometer tip, …

What is the difference between a piezometer and a groundwater monitoring well?

Difference Between Monitoring Wells and Piezometers Shallow monitoring wells have breaks in the length of their pipes, which are below the ground. … Instead of measuring the level of groundwater throughout the entire pipe, piezometers measure groundwater at the bottom of the pipe.

How do piezometers work?

Piezometer (Fig. 1.24) is used to measure underground water pressure. It converts water pressure to a frequency signal via a diaphragm and a tensioned steel wire. A change in pressure on the diaphragm causes a change in tension of the wire.

What is the required minimum water flow for standpipe systems?

The minimum pressure while flowing the required standpipe flow (500 GPM from the hydraulically most remote standpipe and 250 GPM from each additional standpipe, up to a maximum of 1000 GPM for a fully sprinklered building) shall be 100 psi at any valve outlet while flowing 250 GPM through each valve.

What are the three main considerations that determine the required standpipe system installation?

What are the three main considerations that determine the required standpipe system installation? The building height above or below the level of fire department access, whether a fire sprinkler system is installed, the use and occupancy of the building.

What are the components of a standpipe system?

Basic Components of Standpipe Systems. While each system can vary, a standpipe generally consists of an interconnected series of pipe, pumps, valves, alarms, drains, and fire department connections.

What are sprinkler system for?

An irrigation sprinkler (also known as a water sprinkler or simply a sprinkler) is a device used to irrigate agricultural crops, lawns, landscapes, golf courses, and other areas. They are also used for cooling and for the control of airborne dust.

What is the difference between a standpipe and a riser?

A “wet” standpipe is filled with water and is pressurized at all times. … A dry riser is a main vertical pipe intended to distribute water to multiple levels of a building or structure as a component of the fire suppression systems. The pipe is maintained empty of water.

What is combined sprinkler standpipe system?

Combined System. A standpipe system having piping. result in a gridded dry sprinkler system due to the cross or. that supplies both hose connections and automatic. interconnection piping.

How many classes of standpipe systems are there?

There are three classes of standpipes found within buildings: Class 1, 2, and 3. A Class 1 standpipe is designed for firefighting personnel only as it is equipped with just a 2½-inch outlet (see photo 1).

Which class of standpipe system is intended?

Class II standpipes are intended to be used by the occupants of the building, like fire extinguishers, and are equipped with a valve and 1.5-inch hose connection at each location.

What standpipe class can be used by both occupants and fire personnel?

Class 1 standpipes are intended for fire department use, Class II for use by building occupants, and Class III for use by both the fire department and building occupants. Then there are “combined” systems, which are essentially hose valves attached to and supplied by a sprinkler system.

Do I need a standpipe?

A Class I system is typically required in buildings that have more than three stories above or below grade because of the time and difficulty involved in laying hose from fire apparatus directly to remote floors. For these reasons, Class I standpipes are the required system in high-rise buildings.

What is deluge valve?

A deluge valve is a type of system actuation valve that is opened by a detection system that is installed in the same areas as the spray nozzles or by remote manual operation supplying water to all spray nozzles.

Can I drink water from a standpipe?

Water from a standpipe should not be consumed or used in food preparation.

What is a dry standpipe?

A dry standpipe is a network of in-place piping allowing connection of a water supply (usually a fire department mobile apparatus known as a pumper) to a dedicated inlet at street level, with hose outlet valves on each floor.

What does a fire hydrant look like UK?

Fire Hydrants are a common sight in the US; they are usually so brightly painted that you could hardly miss them! But they are not so commonly recognised in the UK because they are most often located underground. The location of a fire hydrant is marked by a square yellow sign with a ‘H’ on.
