How does a silt trap work

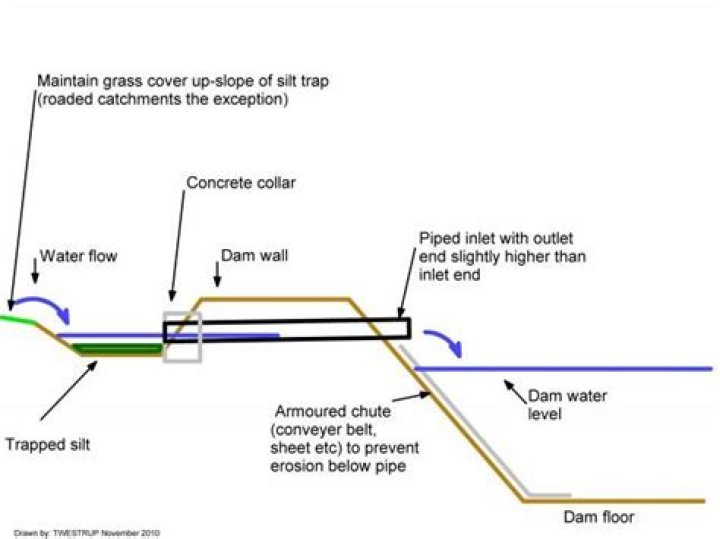

A silt trap is a designated area where water that is contaminated with suspended sediment as a result of construction activity or water runoff is contained. While the water is in the trap, the sediment can settle to the bottom of the trap until it can be removed.

What is the purpose of silt trap?

A silt trap is a designated area where water that is contaminated with suspended sediment as a result of construction activity or water runoff is contained. While the water is in the trap, the sediment can settle to the bottom of the trap until it can be removed.

Where would a silt trap be installed?

A silt trap is a ‘basin’-type device that is placed in the upstream of a soakaway crate. Its main job is to prevent any silt, soil, sediment, metals or pesticides (everything unwanted) from entering your water storage system.

How does a silt pit work?

How does a silt pit work? As water and silt enters the silt pit larger particles (<3mm) are unable t0 pass through the holes in the silt basket and are trapped. The finer, heavier silt deposits flow to the lower chamber where they are trapped due to the higher position of the inlet and outlet pipes.

How do you stop silt from going down the drain?

A silt trap is a method of preventing silt from entering and damaging a soakaway, attenuation or sewer system. These systems are designed to collect and remove surface water, either by emptying it into the sewer system, or by allowing it to drain back into the ground below.

What is a stormwater Catchpit?

What is a Catchpit? A catchpit is an empty chamber that is installed into a drainage system to prevent silt and debris from building up and causing blockages. Catchpits are essential in preventing pipe blockages, which would result in the backing up of water in the drainage system – therefore leading to flooding.

Do I need a silt trap?

Why Do I Need A Silt Trap? Silt traps are an essential element of any efficient surface water run-off system. When silt from draining surface water gets into a drainage system it can affect its ability to function properly. Clogged pipes or silted soakaways can cause a build-up of this surface water.

How do you size a silt trap?

A Grass Outlet Sediment Trap consists of a trap formed by excavating the earth to create a holding area. The trap has a discharge point over natural existing grass. The outlet crest width (feet) shall be equal to four (4) times the drainage area (acres) with a minimum width of four (4) feet.

How does a sediment pond work?

Sediment ponds are temporarily designed structure that prevent sediments from eroding into waterbodies from construction sites or exposed soil during rainfall events. … Once properly designed, sediment ponds captures stormwater runoff and sediments, manage soil erosion, and protect water quality.

Do I need a silt pit?

Any drainage system should have silt pits at regular intervals. This includes both stormwater systems and agricultural drains. In the case of the above photo this is a combination drain and grate silt pit. (As the water can become stagnant this is a potential breeding ground for mosquitoes!)

Article first time published on

What is IC chamber?

An inspection chamber is smaller than a manhole and is necessary to maintain the sewer system (e.g. cleaning, flushing the system). Inspection chambers also function to attenuate peak discharges into the system. …

What is gully trap?

A gully trap is provided outside the building before connecting to external sewerage line. It also collects waste water from the kitchen sink, wash basins, baths and wash area. Gully Trap is provided to prevent the foul gases entering in to the building by providing water seal.

When should a sediment basin be cleaned?

Sediment traps must be cleaned out before they are half full of sediment. The KYTC specifies three types of temporary sediment or silt traps. Type A is an excavated basin with or without a soil berm constructed in a ditch or drainageway.

What is a silt sock?

Silt Socks allow water to flow through at a controlled rate while trapping sediment. This is accomplished by a filter fabric filled with organic material. The design of the sock provides more intimate contact with the ground than a silt fence, preventing water from flowing underneath.

How do you gather silt?

Like other blocks that possess gravity, Silt can be easily harvested by digging below the block that is holding the Silt up then placing a Torch or Minecart Track under it. Then the last step is to break the supporting block & let the Silt fall in.

How do you keep a yard drain from clogging?

To prevent debris from clogging the drain, also clean out gutters that ultimately run into the same drainage system. Clear away any plants growing around the drain and preventing water from entering. Remove the grate from the top of the drain. Use a screwdriver or another tool if necessary.

What is a gully pit?

Gully. Sto A pit, usually of concrete or brick, where surface water can enter an underground drain.

What is KERB Inlet?

Catch pits are designed to be used in conjunction with an inlet kerb, the profile of which matches any standard kerb. … Supply of matching inlet channels may be arranged for use in kerb and channel situations. These precast units have an inflow area of 0.142m².

What is a cesspit NZ?

Catchpit/Cesspit (Public) Stormwater device composed of a grate, small chamber and sediment trap. May be private or public and are usually associated with drainage off road or driveways.

How do I reduce sediment in my pond?

Planting thick vegetation along any area where surface water can enter a pond will help prevent both debris and nutrients from entering the pond. The vegetation will physically stop or slow the introduction of debris and trap it within the buffer.

How deep should a sediment basin be?

DESIGN: • The maximum designed depth of a sedimentation basin should be 2 ½ feet. drainage area is larger than 5 acres, multiple basins or other sediment control measures may have to be considered. An armored outfall must be constructed.

What is a silt pond?

A sediment basin is a temporary pond built on a construction site to capture eroded or disturbed soil that is washed off during rain storms, and protect the water quality of a nearby stream, river, lake, or bay. … They are often used in conjunction with erosion controls and other sediment control practices.

What is a sediment forebay?

A sediment forebay is a settling basin or plunge pool constructed at the incoming discharge points of a stormwater BMP. The purpose of a sediment forebay is to allow sediment to settle from the incoming stormwater runoff before it is delivered to the balance of the BMP.

Where should a silt fence be placed?

The best solution is to retain as much sediment as possible before it reaches paved surfaces. Install a silt fence at the inlet side of a storm sewer or culvert, rather than at the discharge where there is greater velocity and less storage area.

Why are sediment traps near coral reefs important?

Abstract Sediment traps are commonly used as standard tools for monitoring ”sedimentation” in coral reef envi- ronments. … Traps can pro- vide useful information about the relative magnitude of sediment dynamics if trap deployment standards are used.

How does a bottle gully work?

Unlike the P trap, the bottle gully doesn’t require the tight bend in the pipe to trap the water. Instead, it uses a removable inner sleeve (or central chamber) that creates a space between itself and the wall of the gully that the water is forced up to reach the outlet pipe.

What's the difference between an inspection chamber and a manhole?

The most common form of access is an inspection chamber, often still referred to as a manhole. … The main difference between one of these old manholes and a plastic inspection chamber is that inspection chambers do not permit physical entrance into the drains.

What is a plumbing P trap?

What is a P-trap? … A P-trap is a plumbing fixture that has several purposes. It traps debris that has drained from the sink and prevents it from forming a clog deep within the plumbing system, and to stops sewer gases from passing into the home.

Can I move an inspection chamber?

If you are intending to build over an inspection chamber, it is essential to check whether you have permission to do so – in many cases, it may be necessary to move the chamber or have the pipes diverted, or to change the building plans to maintain access to the existing manhole.

What is a drainage chamber?

Product Guide: Underground Drainage. Inspection chambers are access points to underground pipework which allow maintenance and the removal of blockages.

What is a drainage hopper?

A hopper is a drainage fitting with a larger opening on the top than the bottom. Traditionally, they were designed to increase the flow of a drainpipe when heavy rainfall occurred – generally pipes only get to a third full, but if you add a hopper it could reach full capacity.
