How does a roof drain work

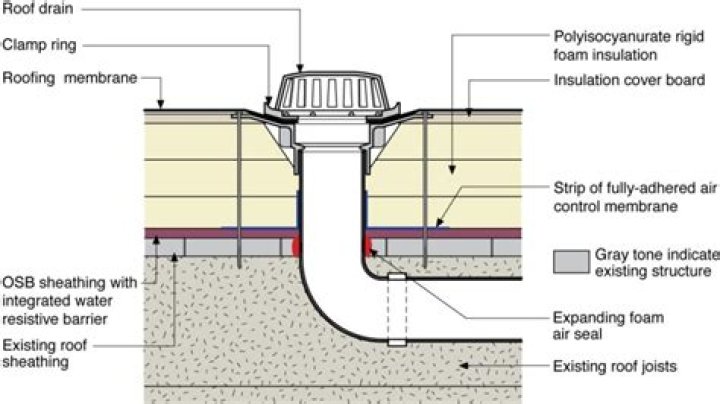

These drains are placed in areas of the roof that collect the most water, and they lead the water into a system of pipes that is installed below the roof. The water travels through these pipes until it is dispensed into a gutter or downspout at the side of the building.

Where do roof drains drain to?

Roof drainage methods Gravity drainage — Stormwater simply drains off the roof and other areas to the ground. Stormwater flows away from the building naturally to storm drains or, in some cases, to the street.

How do you drain water from a roof?

1. Inner Drains. Inner drainage is common to most commercial properties. …
2. Scuppers. This type of drainage consists of an opening in the side of the wall that carries water from the roof to the gutter or downspouts. …
3. Gutter. A gutter is also called a conductor pipe. …
4. Siphonic Roof Drain.

How does a flat roof drain water?

A low-slope roof tilts slightly downhill from its center or from one side, so water rolls off to parapet scuppers and down the hopper (downspout). The scuppers are the openings in the outside walls, specifically designed to allow water, but not debris, to wash off your roof.

How often should roof drains be cleaned?

Commercial roof drains need regular cleaning to keep them clear of debris and blockage. Plan on cleaning every three months in the spring and summer, but up it to every month in the fall and winter.

What is roof drain pipe?

A downspout, waterspout, downpipe, drain spout, drainpipe, roof drain pipe, or leader is a pipe for carrying rainwater from a rain gutter.

What is a roof drain sump?

Description: Copper roof sumps are generally used for draining small roof areas such as canopies. Their size depends on the roof area, the numbers of roof sumps used on the roof, the drainage outlet size, and the location of the sump on the roof.

Should a flat roof have standing water?

On a performing flat roof ponding water is not a problem as it will drain, or even evaporate, away. However when your flat roof has uneven areas due to sagging, an insufficient slope, or drainage issues, the ponding water doesn’t dissipate.

How many drains does a flat roof need?

It is important to remember that no roof area should ever have less than two roof drains. Size and placement of rooftop equipment may necessitate additional roof drains. Consideration should also be given to local codes whish may require separate overflow drain systems.

How do you slope a flat roof for drainage?

For drainage purposes, the current building codes require a minimum two percent slope or a one-fourth unit vertical for every 12 units horizontal. In other words, the roof must slope one-fourth of an inch for every 12 inches.

Article first time published on

Which one of the following is fixed to drain water from a sloping roof?

Rainwater from sloping roofs must be collected in gutters and carried to ground level by downpipes or downspouts. Flat roofs should be drained by vertical pipes and the drainage should be conveyed by pipe to a surface water sewer or to a suit- able soakaway.

How do roof scuppers work?

To put it simply, scuppers are openings in the outer walls or curbs along the roof line. They allow water to run through the wall via a metal box protecting and surrounding the scupper. When designed and installed in the correct manner, scuppers are usually the best value.

What is a flat roof drain called?

Gutters. Gutters are the most commonly used drainage system when it comes to flat roofs. Just like the gutters installed on sloped roofs, these marvels catch rainwater and divert it into a downspout, which carries it away from the foundation.

How do I know if my roof drain is clogged?

Step 1 – Inspection. If you have a clog in your roof drain, you will need to inspect it first. Clear any leaves or debris from around the drain and unscrew the cover. Shine a flashlight down to see if you can see anything obvious, such as nesting animals or an accumulation of leaves.

How do you snake a toilet on a roof?

Bring a 20-foot sewer auger onto the roof. Insert the head into the vent opening and feed it down until you encounter resistance. Crank the handle to work the head through the obstruction. When you are successful in removing it, there should be no more overflow or high water levels in drains or toilets.

How do I keep my roof drain from clogging?

1. Regularly Clean the Drains. The most obvious recommendation is to regularly inspect and clean your roof drains. …
2. Keep the Roof Deck Clean. Regularly clean away any debris that may be on the roof deck itself. …
3. Buy the Right Roof Drain Dome.

What is a roof drain leader?

In plumbing, a pipe installed to drain water from the roof gutters or roof catchment to the storm drain or other means of disposal. Also called a conductor, downspout, or roof drain.

What is a scupper drain for roofs?

Description: Scuppers are used to provide an outlet through parapet walls or gravel stops on flat and built-up roofs to allow drainage of excess water. They can be used in conjunction with gutters and downspouts to divert the flow to the desired location.

Where does the rainwater go from my roof?

Surface water drainage ensures that any rainwater which runs off your property’s roof or paved areas are drained away, to prevent flooding. Surface water is collected in drains and gullies to flow either into the public sewer system or a soakaway.

What is a roof overflow drain?

1108.1 Secondary (Emergency Overflow) Drains or Scuppers Where roof drains are required, secondary (emergency overflow) roof drains or scuppers shall be provided where the roof perimeter construction extends above the roof in such a manner that water will be entrapped if the primary drains allow buildup for any reason.

Where do gutter drains go?

Some homes connect their gutter downspouts to drains that go underground. We call these gutter drains “underground drains“. The purpose of the underground drain is to re-direct the water away from the home, usually to the street or the sidewalk. Sometimes they even connect directly to the sewer line underground.

How much does it cost to install a roof drain?

Installing drainage runs most homeowners between $1,961 and $6,015 with an average cost of $3,981. Small, simpler solutions could be as low as $500 and more complicated projects could get as expensive as $18,000.

Do roof drains need to be insulated?

Insulation should be provided on all piping, especially on commercial projects but also on residential jobs. … Storm water piping is also susceptible to condensation and should be insulated from the roof drain bowl to a point where the piping turns from horizontal to vertical.

How much water can a roof drain handle?

Example: For a 4″ hourly rainfall and 4″ leader, each drain can handle 4,600 sq. ft. of roof area.

How do I stop my flat roof from ponding?

The first is through the roof scuppers which are collector heads leading to downspouts. The second is through sloping towards a gutter system that guides the water away from the roof. The third is through roof drains. By maintaining roof drains and gutter systems clean, water should flow out and avoid ponding.

How long can water sit on flat roof?

Specifically, water must remain on the roof for 24-48 hours for the National Roofing Contractor’s Association (NRCA) to consider it ponding. If you have this leftover water, you may notice it collects in dips in the roof or around drains.

How do you improve drainage on a flat roof?

Scuppers. Scuppers are the most effective drainage solution for flat roofs. With this system, large square openings are made along the edge of the roof that shoot the water away from the side of the building.

How much slope does a water drain need?

Healthy drainage occurs when the slope is between 2 percent and 5 percent, which equates to 2 to 5 inches of drop-off for every 10 feet you measure as you move away from your home.

How much does it cost to pitch a flat roof?

Flat Roof Slope Minimum According to the International Building Code, the typical built-up flat roof that uses tar or asphalt goes by the guideline that for every foot (12 inches) of a flat roof, a minimum of ¼ inch must step up or down.

What is the best angle for a flat roof?

What is the most appropriate angle for Flat Roofing? Normally, 1:80 (0.72⁰) is the recommended minimum angle for a slope, and this is universal across the vast majority of flat roofing systems, regardless of the materials that they incorporate.

What are the 3 types of drainage?

• Surface Drainage System. Surface drainage systems remove excess water from the land’s surface through channels or ditches. …
• Subsurface Drainage System. …
• Slope Drainage System. …
• Downspouts and Gutter Systems.
