How does a rock drill work

A rotary drill crushes rock by applying crushing force to the bit on the end of the drill string, which is pressing into the bedrock. … At that time, in order for the percussive energy to be reliably transmitted to the bedrock, the bit must stay in contact with the rock.

How does a hydraulic rock drill work?

Hydraulic pressure generates the force required — pressure builds to a maximum and when released, drives an impact piston forward. When the piston strikes a chuck, it transfers its kinetic energy as a stress wave through a drill rod to the drill bit, which uses this impact energy to pulverize the rock.

What kind of drill do I need for rock?

Insert a carbide- or diamond-tipped masonry drill bit into the drill. Do this by loosening the chuck of the drill, inserting the end of the and then tightening the chuck of the drill back up. Do not attempt to use a wood bit to drill into rock, as doing so can result in the bit breaking which can cause serious injury.

How does a rock drill use pneumatics?

Pneumatic Power At Work Inside the pneumatic drill is a series of air tubes that connect to the pile driver, and then to the drill bit at the bottom. The compressed air, delivered from the diesel-powered compressor, enters the drill and moves through the air tube circuit system.

What are rock drills made of?

pneumatic device Rock drills are used for mining and rock excavation. An example of such a pneumatic tool is the hammer drill, or percussion hammer, which is composed of a piston and a drill made of high-carbon steel.

Why is it called a jackhammer?

also jackhammer, “portable rock-drill worked by compressed air,” 1913, from jack (n.) + hammer (n.). As a verb by 1947.

What is a drifter rock drill?

A drifter drill, sometimes called a rock drill, is a tool used in mining and civil engineering to drill into rock. Rock drills are used for making holes for placing dynamite or other explosives in rock blasting, and holes for plug and feather quarrying.

What type of drill is the jack hammer?

A jackhammer (pneumatic drill or demolition hammer in British English) is a pneumatic or electro-mechanical tool that combines a hammer directly with a chisel. It was invented by William Mcreavy, who then sold the patent to Charles Brady King.

What is a rock drill in the army?

What Is a Rock Drill? ( U) (U) Rock Drills were developed as a way for military field commanders to test their battle staffs and subordinate commanders before the execution of mission. The commander would begin by disseminating his OPORDER (Operations Order) for the mission.

Can you drill stone without a hammer drill?

If you’re wondering how to drill into brick without a hammer drill, it’s not as simple or straightforward, but it is still doable. Drilling into a brick wall with a regular drill requires a high-quality masonry bit at the least. With no hammer action, the tool has to rely on its turning speed.

Article first time published on

What is a rock drill bit?

Drill Steel, paired with a Rock Bit, is often used to drill holes larger than 1-1/2″ and is available in lengths up to 120″. Rock Bits are available in all steel or heavy duty carbide tipped. … These bits have a cross pattern to maximize drilling in a variety of materials.

How do you drill holes in sandstone rock?

Sandstone is a very soft, coarse grained rock that can easily be drilled with a standard carbide tipped drill bit. If your stone is harder than average, you might want to cool the bit with a little water, cutting slowly and using steady pressure to keep the bit cutting.

Can you drill a well through rock?

You’re drill bit is probably hitting rock, and while you can drill a water well through rock, it will definitely slow the process way down. Drilling through a big rock can slow drilling down to as little as half an inch per hour! The real problem isn’t big rocks, however, but rocks about the size of a small melon.

What is the process of drilling?

Drilling is a cutting process that uses a drill bit to cut a hole of circular cross-section in solid materials. The drill bit is usually a rotary cutting tool, often multi-point. … Instead, the hole is usually made by hammering a drill bit into the hole with quickly repeated short movements.

What is the reason for rough holes in drilling?

The main cause of rough holes during drilling is. feed rate is too high. drill point not in centre.

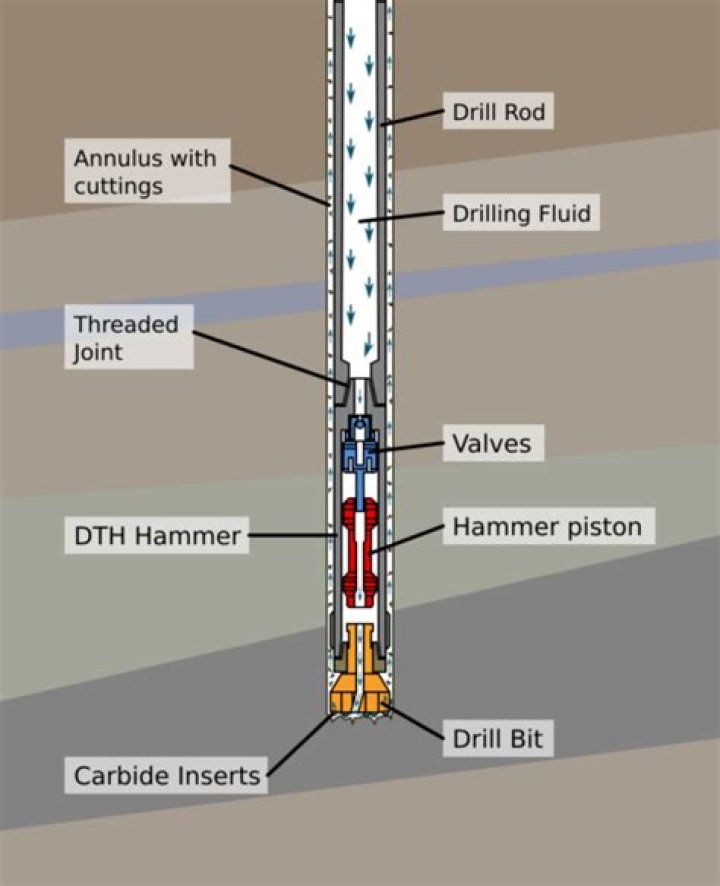

Is top hammer drilling vs down the hole drilling?

The primary difference between the top hammer and down-the-hole drilling methods is where the hammer is attached. The hammer in the industrial equipment makes contact with the bit during the down-the-hole drilling method. The top hammer drilling method’s activity is concentrated at the very top of the drill string.

What is the purpose of a drill drift?

Drill Drift also known as wedge shaped drift ,used to remove/loose chuck, sleeve, socket, from a receiving member.

How does a drifter work?

How do drifters work? The surface float contains sensors that measure different parameters, such as sea surface temperature, barometric pressure, salinity, wave height, etc. Data collected from these sensors are transmitted to satellites passing overhead, which are then relayed to land-based data centers.

How does a hydraulic drifter work?

In a drifter, the percussive system strikes the drill steel, at several thousand blows per minute, while the rotation drives the drill string at several hundreds rounds per minute. … The hydraulic power of the drilling equipment is used in order to move the hydraulic drifter piston.

Are jackhammers still used?

Construction companies have used jackhammers for years to breakthrough concrete and asphalt. While you may think of it as a modern invention, it came before sliced bread, paper clips and tea bags. When you’ve got a project like a new driveway or walking path to do, it’s time to consider jackhammer rental.

What is the weight of a jack hammer drill?

Jack hammer is a powerful and versatile medium weight rock drill with a high rate of penetration. Weighing nearly 30 kgs, it is capable of drilling 27mm to 40mm diameter holes with h 22 integral & extension steels upto depth of 6 meters.

How long can you use a jackhammer?

As an example, according to this graph, the average Jackhammer should not be used for more than 40 minutes a day by a single user. The ELV and EAV stand for Exposure Limit Value and Exposure Action Value. This translates into a worker safely using a jackhammer for a full 8 hours shift every day.

What is the jackhammer move?

The piledriver is an advanced sexual position that requires flexibility and endurance from the giver and receiver. This position is OK for any kind of relationship, and can be used for vaginal or anal penetration. The piledriver is also known as the jackhammer.

Is a operated drill similar to Jack hammer?

13. ____________________ is a air operated drill similar to Jack hammer. Explanation: Drifter is used for drilling vertical or horizontal holes. They are extensively used in tunnel work and they can drill holes of diameter up to about 120 mm.

Will a masonry bit drill through rock?

Masonry bits that are up to 39 inches long can work together with hand-portable power equipment to drill huge rocks. Apply moderate pressure to the drill, and drill for one minute. Don’t force the bit into the boulder; let the drill do the work. Remove the bit from the hole, and cool it in the pitcher of water.

Can you use a hammer drill on granite?

What you need for hard surfaces, such as granite, is a rotary hammer drill. … Combine that with a masonry bit and you can quickly drill holes into almost any surface, concrete rebar, granite countertops, and much more.

Why can't I drill through concrete?

Drilling into concrete is difficult because concrete is dense, is hard, and has embedded aggregate stones that can be obstacles to the drill bit. Drilling can quickly dull drill bits. When the bit encounters aggregate, the bit drags even more.

What's the difference between a hammer drill and a regular drill?

A hammer drill delivers more power in the form of a hammering action. The force of the hammer drill is applied directly to the bit. They are most commonly used for drilling in concrete and masonry. The hammering portion of this motion can be turned off, allowing the tool to function more like a standard drill.

Can you drill masonry with a cordless drill?

In most cases, yes. While a cordless drill will not be as effective in drilling through concrete, it can get the job done. … A standard cordless drill has numerous applications when it comes to our home small projects, and surprisingly, it can be used to drill into stone or masonry.

What is a carbide drill bit?

Carbide (Carb) is the hardest and most brittle of the drill bit materials. It’s used mostly for production drilling where a high-quality tool holder and equipment is used. It should not be used in hand drills or even drill presses. These drill bits are designed for the most demanding and hardest materials.

Is sandstone hard to drill?

Decent masonary bit will be fine, sandstone is not that hard. Depending upon the hardness, sandstone will drill easily with a good quality masonry bit with rotary only. Yep, Masonry Bits. Also agree with Jon Gibbs to pre drill small pilot hole first to avoid ‘blowing out’ on drill breaking through.
