How does a plug valve work

Plug valves are high capacity valves that can be used for directional flow control, even in moderate vacuum systems.

Do plug valves have a flow direction?

Plug valves are high capacity valves that can be used for directional flow control, even in moderate vacuum systems.

How does a plug valve seal?

The plug valve uses a mechanism that rotates between the open and closed position and protects both seals from the flow path. During rotation there is no contact between body and seals, and slips expand onto the body seat when the valve is closed to avoid causing any wear or abrasion to the seals.

When would you use a plug valve?

Plug valves are used to provide bubble tight shut-off in fluid services like air, gas, vapor, hydrocarbon, and more. Plug valves are a popular valve to use when dealing with slurries, mud, and sewage applications as they have a larger surface area and allow unrestricted flow of the medium.

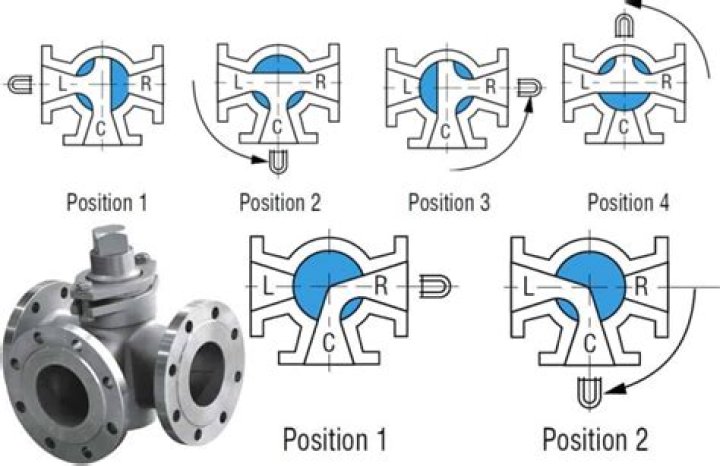

How does a 3 way plug valve work?

A 180-degree (three-position), L-pattern, three-way ball valve has two flow paths and one cutoff position. When the handle rotates the valve ball 90 degrees counterclockwise (position 2), the flow path changes and flow can now pass between the bottom common port and the right port.

Is a plug valve good for throttling?

The Plug Valve: The plug valve is used primarily for on-off service and some throttling services. It controls flow by means of a cylindrical or tapered plug with a hole in the center that lines up with the flow path of the valve to permit flow. … The butterfly valve is used both for on-off and throttling services.

Do plug valves have packing?

The cover is fully sealed and securely bolted to the 5. body. It can be easily removed if maintenance of the plug is required. Packing is self-adjusting chevron type that increases 6.

What is the difference between a globe valve and a plug valve?

A globe valve uses a plug (stem) that closes against the flow, and a ball valve has a gate (ball) that closes across the flow. Globe valves are good for regulating flow, whereas ball valves are better for on/off control without pressure drop. … They are generally preferred over globe valves in shutoff applications.

Are plug valves better than ball valves?

Plug valves offer better performance in the term of cutting than ball valves, but that doesn’t show obviously. The sealing surface of the plug valve is much larger than the ball valve and supplies a better sealing effect, but a greater torque and small diameter.

Is plug valve full bore?

Full Bore plug valves provide the same lubricated plug valves features, with the addition of the “FULL BORE” capability, which makes these valves suitable for being installed as “Piggable” mainline isolation valves, or to fit any service where no ID bore restriction is allowed ( CV losses, High velocity media or …

Article first time published on

What is the difference between plug valve and gate valve?

Like the gate valve, a plug valve has an unobstructed flow, yet requires only a 90 degree turn to open it. … However, plug valves are available in much larger sizes than ball valves and are highly suitable for use in wastewater plants.

What is port valve?

The L Port Valve and T Port Valve are both known as 3-way valves due to their T-shape body with three ports. Both divert flow to and from different ports, however the L Port Valve allows one action whereas the T Port Valve facilitates another. … The T Port Valve is commonly used for directing the flow in two directions.

What is at port 3 way valve?

A 3-way ball valve is a valve type with three ports, also known as openings. The connection between the ports has a metal ball with openings to control the media’s flow direction. Fluid or gas (media) flows through the valve, and there’s a mechanism to turn the ball, which directs flow from one place to another.

How does at port ball valve work?

T port: The main function is to change the flow direction of the medium or divide the medium into two independent directions. The T port ball valve is also called a diverter valve because it allows the medium to flow in from one inlet and then flow out from the other two outlets.

What is the other name for the plug valve?

Explanation: Plug valve is also called as slim valve and is used for on/ off control but with little pressure drop. Needle valve is used for accurate flow.

How does a plunger valve work?

Principle of the plunger valve The plunger valve features a ring shaped symmetrical cross section that enables a linear control curve over the entire control range. … These flow streams do not hit each other until they reach the middle of the valve or pipe, which reliably prevents cavitation damage to the valve.

What is eccentric plug valve?

What is an eccentric plug valve? A style of rotary control valve with a plug-shaped, flow-restricting member that follows an eccentric path as it rotates. The plug has no contact with its seat until it turns within a few degrees of the shutoff position.

What are plug valves made of?

Stopcocks used in laboratory glassware are typically forms of conically tapered plug valves. When fused with the glassware, the valve bodies are made of glass. Otherwise, they can be made of an inert plastic such as Teflon. The plugs can be made of a similar plastic or glass.

What is lubricated plug valve?

Lubricated plug valve consists of a cavity in the middle of plug along its axis. This cavity is closed at the bottom and fitted with a sealant-injection fitting at the top. The sealant is injected into the cavity, and a check valve below the injection fitting prevents the sealant from flowing in the reverse direction.

What does Backseating a valve mean?

With a backseat, the valve also seals against another seat when it is fully open. This prevents the process fluid from exiting out the top of the valve, allowing maintenance on the packing of the valve. “To backseat” is to open the valve fully against the back sealing surface.

Can plug valve be used for isolation?

Ideal for applications that need a higher seating force and minimal friction from open to closed position, eccentric plug valves find a place in a wide range of isolation or flow control systems. This includes sewage, sludge and slurries, air, and other services.

What is the best valve for throttling flow?

Among the most common valves, the butterfly valve is the most suitable for throttling. A full quarter turn can open or close the valve.

Which valve is best for flow control?

Globe valves are considered the industry standard for control valves because they are good at regulating flow, whereas ball valves are better for on/off control without pressure drop.

What is a globe valve?

A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.

How does a diaphragm valve work?

Diaphragm valves use a flexible diaphragm connected to a compressor by a stud which is molded into the diaphragm. Instead of pinching the liner closed to provide shut-off, the diaphragm is pushed into contact with the bottom of the valve body to provide shut-off.

What are the types of valves?

• Isolation Valves: Ball, butterfly, diaphragm, gate, pinch, piston, and plug valves.
• Regulation Valves: Ball, butterfly, diaphragm, globe, needle, pinch, and plug valves.
• Safety Relief Valves: Pressure release and vacuum relief valves.

Are globe valves expensive?

Globe valves can be used to start, stop, and regulate flow. … Globe valves generally seal better than gate valves and last longer. They are more expensive than similarly sized gate valves, but may be worth the extra expense in situations where throttling is needed.

Are globe valves full port?

Globe valves are typically two-port valves, although three port valves are also produced mostly in straight-flow configuration. Ports are openings in the body for fluid flowing in or out. The two ports may be oriented straight across from each other or anywhere on the body, or oriented at an angle (such as a 90°).

What is the seat on a plug valve?

Plug Valve Parts The seat is an integral part of the body in case of a lubricated type. For a non-lubricated type, a non-metallic seat is used to improve leak tightness of the valve.

What is plug valve design pattern?

Major valve patterns are, regular, venturi, short, round port and multi port. The regular port has a port opening of 70 to 100% of the internal area. The short pattern valve has the overall dimensions of a 150# valve.

Which way does the seat go on a plug valve?

For vertical pipe installations, install valve with seat facing downstream. Before installation, blow out pipeline to remove all foreign materials. Install valve with plug facing upstream. Ensure plug rotates up to the fully open position thus preventing plug from sweeping through settled debris.
