How does a Photogate work

The Photogate works by projecting an infrared beam to a sensor. When the beam is blocked the sensor stops sending a signal, which illuminates an LED on the top of the gate as well as triggering the data collection software to display a blocked message in the data collection area.

What does the Photogate actually measure?

Photogates are a timing device that measure times of the changes in state of an infrared beam that is blocked by a flag of known length, as well as the times the beam is unblocked. Using the flag length, and the blocked time, students can calculate speed.

Is a Photogate a motion sensor?

Motion Detectors and photogates can both measure motion, but both have advantages for certain experiments. … Depending on the photogate timing mode being used and the object passing through the gate, other measurements such as position, velocity, and acceleration may also be calculated.

How does a Photogate measure acceleration?

1. Use default Object Velocity sensor channel on both photogates.
2. Collect data using time-based data collection.

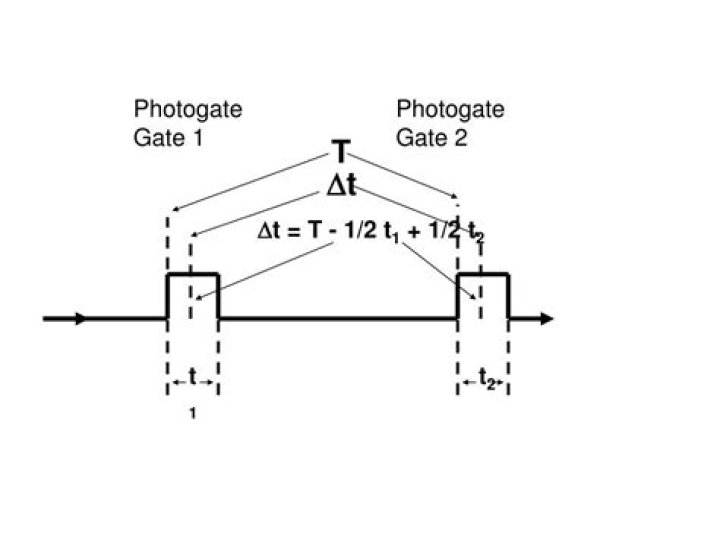

3. Use the velocity and time measurements for each photogate to calculate the acceleration (Change in Velocity/Change in Time)

How is Photogate used to measure velocity?

In this application a card attached to a moving object breaks the beam of the photogate timer providing the time for the card to pass. The length L of the passing card can then be divided by this time to yield the average velocity (or speed) of the passing object: Vavg = L/t.

How do you set up a Photogate?

1. Tap the Mode box or choose Data Collection from the Sensors menu.
2. Choose the appropriate mode from the drop-down menu.
3. Set the requested distance variable(s) to match the experiment, such as the length of the object or the distance between gates. …
4. Select OK.

What is the uncertainty of a Photogate?

This means that the photogate (and software) can distinguish 2 events that occur 0.1 ms apart as separate events. So, suppose that we consider the uncertainty of a photogate event as 0.1 ms.

What is Photogate Wikipedia?

photogate (plural photogates) (physics) A device that measures the time between events that interrupt an infra-red beam.

How do I set up Pasco Photogate?

First select the hardware setup icon. On the icon for the Smart gate, click on port 3 to configure this to be a connected photogate. Next, select the Timer Setup. For the available sensors, make sure the first photogate on the Smart Gate is selected and the second photogate on the Smart Gate is not selected.

What is the purpose of the phototransistor in your Photogate circuit?

An IR photogate uses a phototransistor to measure the amount of light from an optical beam originating from an IR LED. Infrared light is chosen so as to minimize any signal from ambient light sources often found in our normal working environment.
