How does a panic door work

Panic hardware is a door component that was designed to allow fast and unencumbered exit from a doorway. … You simply push a rod, a bar or other activator, the latch mechanism is retracted and you are able to push the door open.

How does a panic bar work on a door?

How it Works. Panic bars consist of a flat, horizontal bar attached to the inside of an outward-opening door. This flat bar retracts a latch mechanism when pushed, unlocking the door for fast exit. Doors using a classic crash bar require no knowledge or keys to operate and are ADA-compliant for handicapped usage.

How do you operate a panic lock?

When a panic lock is used on emergency exits, it will have a spring-loaded metal bar fixed horizontally on the inside of the door. When the lever is pressed, it activates a mechanism that unlocks the door. Pushing on the bar will release the lock, making it easy to push the door outward and escape to the outside.

Can panic hardware be locked?

Panic hardware must be mounted at a certain height: between 34 and 48 inches above the floor or threshold of the building. No other locking devices – including chains and padlocks – can be used on exit doors with panic hardware.

How do you unlock panic exit doors?

The most common way to “dog down” or place the exit device in the unlocked mode is by pushing the bar, inserting and turning a “dogging key” into a hole on the interior bar of the exit device. The dogging key is commonly a hexagonal or “hex” key like the picture.

What is the second latch on a panic bar for?

This allows an authorized user to open the door from the exterior side of the opening. A second option for the exterior trim is the installation of a moveable handle or a handle with a keyed lock cylinder.

Do exit doors need panic bars?

Keep in mind that when an application requires panic hardware, all of the doors in the means of egress from that room or area will typically require panic hardware, including the exit access, the exit and the exit discharge.

What is the difference between panic hardware and fire exit hardware?

Panic Hardware is an exit device which is tested for use on a door that is required to have panic hardware, but cannot be used on a fire door. … Since fire doors require positive-latching, fire exit hardware does not incorporate mechanical dogging.

Is panic hardware requirements on electrical rooms?

In the 2020 NEC update, either option – panic hardware or fire exit hardware – is allowed for personnel doors in electrical spaces. Just be sure to meet any applicable life safety or IBC requirements in your area.

Can exits be locked from the inside?

OSHA states that “Employees must be able to open an exit route door from the inside at all times without keys, tools or special knowledge. A device such as a panic bar that locks only from the outside is permitted on exit discharge doors.

Article first time published on

What is panic hardware for doors?

Code publications define panic hardware as, “a door-latching assembly incorporating a device that releases the latch upon the application of a force in the direction of egress travel.”

How do you secure an emergency door?

1: Use a rope, power cord, or belt to tie the doorknob to a nearby heavy object. 2: Tape a broom handle perpendicular to the door frame, tying the handle to the doorknob to hold the door shut. 3: If applicable, secure a belt around the top of the door hinge.

What is dogging a door?

So, what is dogging? Touch Bar Device. In a nutshell, dogging a device holds the latchbolt retracted removing the need to turn the lever or push the panic bar to retract the latch and open the door. You essentially only have to push or pull the door for it to open when the exit hardware is “dogged”.

What does cylinder dogging mean?

For Cylinder dogging there will be a cylinder installed where a key must be inserted. As the key is turned, the cam on the cylinder turns and engages the dogging mechanism to hold the latchbolt retracted. The cut key allows security personnel to be the only ones with the ability to dog the exit devices.

Do all egress doors need panic hardware?

The IBC 2006 and 2009 editions – requires Panic Hardware and/or Fire Exit Hardware on egress doors with an occupant load of 50 people or more in the following occupancies: … All High Hazard occupancies (regardless of occupant load)

Do all exit doors need panic hardware?

Keep in mind that when an application requires panic hardware, all of the doors in the means of egress from that room or area will typically require panic hardware, including the exit access, the exit, and the exit discharge.

How do exit devices work?

EXIT DEVICE – (Also called panic device, panic hardware, panic bolt and crash bar.) A type of lock having an inside release bar. When depressed, the release bar (called crossbar, push pad, etc.) retracts the latch bolt, thus permitting the door to be opened.

What does Rim Panic mean?

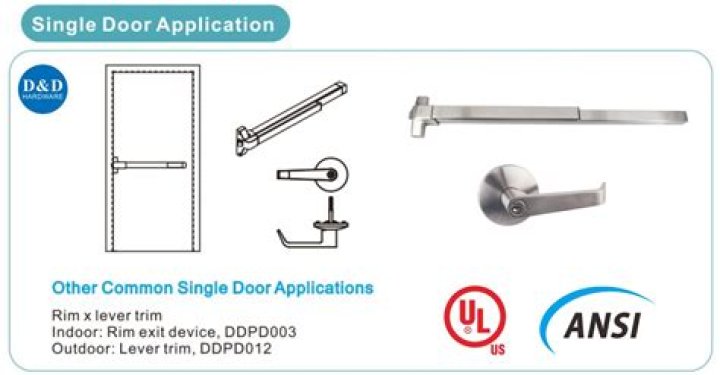

Rim – A rim panic device is surface-mounted on the door, with the latch projecting from the panic device rather than the door edge. This is the simplest configuration of panic hardware, and the easiest to maintain. Rim panics can be used on single doors, or on pairs of doors in conjunction with a removable mullion.

What is a rim door?

A rim door knob is a door knob that is used with surface rim locks. Rim door knobs are also usually fitted to appeal to aesthetic tastes; More Handles reflect this in our more recent decorative and stylish, yet secure, collections.

What is the push bar called on a door?

A crash bar (also known as a panic exit device, panic bar, or push bar) is a type of door opening mechanism which allows users to open a door by pushing a bar.

Are electrical room doors required to swing out?

The door must be at least 24 inches wide and 78 inches high, and must be outswinging and equipped with panic bars, pressure plates, or other devices that are normally latched but open under simple pressure. Refer to the NEC for an exception that would allow one door instead of two if certain criteria are met.

Does an electrical room need two exits?

Two exits must be provided. Doors located less than 25 feet from working space must open in the exit direction, and must be openable with simple pressure (panic hardware).

What are the three conditions related to live parts and working space?

Condition 2—Exposed live parts on one side of the working space and grounded parts, including concrete, brick, or tile walls are on the other side of the working space. Condition 3—Exposed live parts on both sides of the working space.

Is panic hardware considered a latch?

Panic hardware is defined by the International Building Code (IBC) as: “A door-latching assembly incorporating a device that releases the latch upon the application of a force in the direction of egress travel.” Fire exit hardware is panic hardware that is listed for use as part of a fire door assembly.

Why are they called crash bars?

The names panic bar and crash bar were coined to indicate the way people when panicked in a mass evacuation due to emergency crashed into the doors in order to exit. In any building area or room where many people may be gathered, code requirements dictate that safe and easy egress must always be possible.

Where do you need panic hardware?

The required locations for panic hardware vary depending on which code has been adopted, but typically, panic hardware is required for assembly, educational/daycare, and high hazard occupancies, where the calculated occupant load is 50 people or more (International Building Code (IBC) and International Fire Code (IFC …

Is locking a fire exit illegal?

Fire exit doors must not be locked with a key or padlock whilst a building is in use. … If drastic security measures like chains, padlocks or steel bars are required, the first person entering the building in the morning must remove all of these.

Is locking a fire door illegal?

Never lock a fire door Emergency fire doors must not be locked, or fastened in a way that they cannot easily, and immediately, be opened by any person who may require to use them in an emergency.

Why is it important not to block fire exits?

Obstructions in fire exit routes, such as boxes, equipment, stock etc. can in a fire cause people to fall, seriously hurt themselves, and even block the exit passageway for others. Keeping exit passageways clear of obstacles enables people to exit a building more quickly and safely.

Do stair doors need panic hardware?

According to all editions of the IBC starting with the 2006 edition, panic hardware is required for doors serving 3 use groups: Assembly occupancies with an occupant load of 50 people or more* Educational occupancies with an occupant load of 50 people or more. High Hazard occupancies with any occupant load.

How do you stop a door from being kicked in?

1. Replace the Deadbolt Strike Plate and Reinforce the Hinges. …
2. Reinforce Your Door Frame. …
3. Make Sure You Have a Door with a Solid Core. …
4. Improve Glass Door Security. …
5. Forget Standard Door Chains – Use a Strike Plate Lock Instead. …
6. Install a Door Barricade or Use a Security Bar to Secure Your Door From the Inside.
