How does a OHC engine work

OHC stands for Over Head Camshaft. This valve arrangement configuration places the camshaft in the cylinder head above the pistons and combustion chamber. Such camshaft operates the valves or lifters directly. This is opposed to the conventional design of overhead valves which are operated by ‘rocker arms’ & push-rods.

Which is better OHV or OHC engine?

The OHV is a more compact design but less efficient while the power output is higher as compared to an OHC. An OHC configuration does not have lifters and push rods to deal with and, therefore, the total mass of the valve train is less. This makes it more powerful than an OHV configuration.

Which is better OHC or SOHC?

OHC configurations also allow for better optimization of cylinder head, intake and exhaust port design compared to OHV engines. … An SOHC engine will usually be less complex than a DOHC engine albeit, usually, at the cost of slightly less power. Most modern SOHC and DOHC engines are usually multi-valve engines.

Why is overhead cam better?

It is shown that the principal advantage of overhead camshafts is the increased natural frequency of the valve train. The resulting improved dynamic characteristics of the valve-actuating mechanism make it possible to design camshaft profiles which expand the useful operating range of high-speed engines.

Why is overhead cam better than pushrod?

Higher RPMs: OHC design allows for a much broader rev range, including a higher redline that’s unachievable with a pushrod engine. Top-End Torque: Sure, OHV engines have a low-end grunt, but overhead cam engines can quickly meet and exceed torque needs.

What is the disadvantage of overhead valve engine compared to overhead camshaft engine?

hard to design more than two valves per cylinder. camshaft maintenance is more difficult. more complex block design.

What's the benefit of an overhead cam engine over an overhead valve engine?

Pro: DOHC engines can achieve more direct airflow because the dual camshafts allow for a larger angle between the intake and exhaust valves. Pro: More breathing room means more horsepower and more high-end torque (though pushrod engines still have better low-end torque).

Are there pushrods in an overhead cam engine?

Overhead Valve (Pushrod) Engines The crankshaft in an OHV engine is connected to the camshaft via a chain or gear system, so that when the crankshaft turns the camshaft follows. When the camshaft turns, a lifter pushes a pushrod that opens and closes the engine’s valves.

Do overhead cam engines have lifters?

It depends on the definition of the term ‘lifter’ but in general, yes they do. They are often called tappets, or cam buckets etc., but they serve the same role as a lifter.

Do overhead cam engines have pushrods?

The motion of the camshaft is transferred using pushrods and rocker arms to operate the valves at the top of the engine. An overhead camshaft (OHC) engine also has overhead valves; however, to avoid confusion, Overhead valve engines that use pushrods are often called “pushrod engines”.

Article first time published on

Do overhead cam engines have rocker arms?

In an OHV engine, the camshaft is placed inside the block and the valves are operated through lifters, pushrods and rocker arms. This mechanism is called a valvetrain.

How much horsepower does a 4.0 V6 have?

Rated at a rather anemic 210 horsepower, the 4.0L SOHC V6 is not exactly a high output engine.

Which is faster DOHC or SOHC?

DOHC is better for performance because you will get more horsepower with it. SOHC is better for reliability. A SOHC engine contains much lesser parts, which will make it more reliable.

Why can't pushrod engines rev high?

Most pushrod designs feature two valves per cylinder. … Without extra valves, the engine can’t take in enough air at higher rpm and it becomes starved for air. Thus, it can’t rev as high. The number of camshafts and valve timing are the final reasons pushrod engines don’t rev very high.

Is the LS a pushrod?

The LS remains a pushrod, 2-valve V8 in a land of DOHC engines. Its bore centers, the distance between the centerline of each cylinder, has not changed since 1955. Chevrolet considers the LS to be simply an extension – a new branch of the original small-block V8 tree.

Why are pushrod engines bad?

The reason for the change from push rods to overhead cams is mass in motion. Every cam follower, push rod has mass that has to be accelerated from stop to flat out back to stop—like a piston. That mass robs an engine of efficiency so the less mass you have to move, the better performing engine.

Why is SOHC more preferred over an OHV engine?

Less common than say DOHC and OHV, but it’s not to say it’s worse. Due to only having one camshaft for each bank of cylinders, the Single Over Head Cam is lighter and simpler than it’s twin cam counterpart. And because there are less components, it’s cheaper to make as well.

How do you tell if your car is SOHC or DOHC?

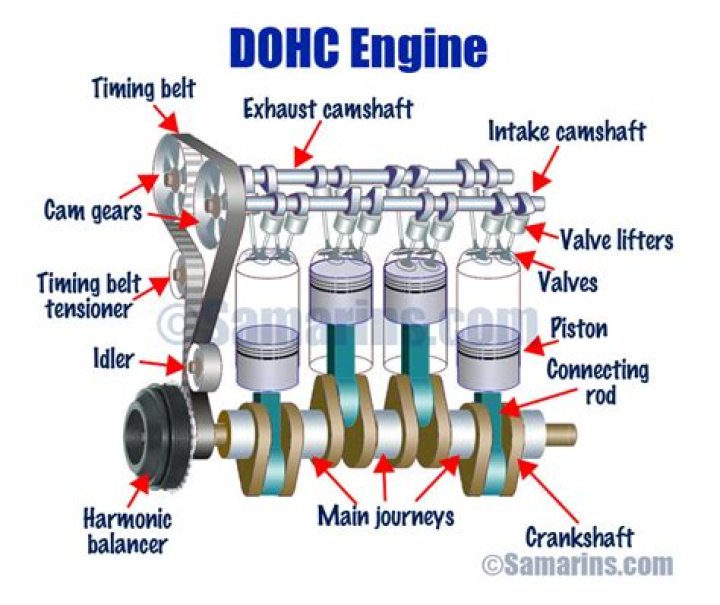

When a single camshaft governs both intake and exhaust valves, the setup is commonly known as SOHC. On the other hand, when there are two dedicated camshafts, one to push the inlet valves and the other to push the ones which let the gases escape from the cylinder after combustion the setup is called DOHC.

Why pushrod engines are better?

Although pushrod engines typically don’t boast sky-high redlines, they do produce oodles of low-end torque. That’s because pushrod engines typically use two valves per cylinder, which improves air velocity. … Higher air velocity leads to better combustion and, ultimately, more torque.

What does DOHC stand for in engines?

To put it shortly, DOHC refers to Dual Overhead Camshaft, SOHC refers to Single Overhead Camshaft, and OHV refers to Overhead Valve. To better understand what these mean, it is important to know how a typical 4 stroke engine works (this is the type of engine you would find in any modern car).

What cars use overhead valve engines?

Today most OHV engines are found in run of the mill cars aside from the LS or Hemi motors. Most sports cars and higher performance cars use Overhead Cams. It is typically the American based manufacturers like Ford, GM and Chrysler that continue to build OHVs.

Are more valves per cylinder better?

More valves improve an engine’s breathing by letting more air and fuel into the combustion chamber and expelling exhaust gases more efficiently. Each valve is smaller and lighter in a multi-valve engine, so higher engine speeds are easier to achieve than with the larger, heavier valves found in 2-valve designs.

How do you tell if a lifter is collapsed?

The most obvious symptom of a faulty hydraulic lifter is the noise it creates in your car’s engine. You can usually distinguish the faulty lifter by the distinct sound. Instead of a knock or ping, a faulty hydraulic lifter will usually make a sound more reminiscent of a tapping sound.

What does OHC stand for in engines?

Overhead Camshaft (OHC) Engines Overhead Camshaft engines (OHC) are similar to OHV engines, but they also have their camshafts positioned in the cylinder head above the combustion chamber. This means they offer all the benefits of an OHV design and more.

What is the difference between a tappet and a lifter?

A hydraulic tappet, also known as a hydraulic valve lifter or hydraulic lash adjuster, is a device for maintaining zero valve clearance in an internal combustion engine. … The hydraulic lifter, situated between the camshaft and each engine’s valve, is a hollow steel cylinder encasing an internal piston.

What causes valves to float?

Valve float occurs when the valvesprings are incapable of holding the valvetrain against the camshaft lobe after peak lift. This happens when either the weight of the combined valvetrain components or the rpm speed of the engine creates so much inertia that the spring is no longer able to control the valve.

Why Does Chevy still use pushrods?

Pushrod engines are also simple, with far fewer moving parts that could break over time. That’s a big part of the reason why Chevy’s small-block V8s are famous for their reliability and durability. This simplicity also means a pushrod engine is generally cheaper to produce than an equivalent overhead-cam unit.

Which is better pushrod or timing chain?

Pushrods have “easier maintenance” as there is no maintenance on/for them. Timing / cam chains do often have an expected life duration when they should be replaced.

Are pushrod engines more reliable?

push rod engines are usually lower revving, and strangely more reliable because with overhead cam most of them are run by belt, which to my mind is a weakness in the engine. maintainance is easier, no cam belt to change just the cam chain at extended intervals.

Do overhead cams have rockers?

You don’t. Overhead Cam engines don’t use them. Rocker arms are used with pushrod engines where the cam is located inside the engine block. EDIT: Some OH Cam engines do use a cam follower, which some people call a rocker arm.

Who invented the overhead valve engine?

In over his head. Appropriately, David Dunbar Buick got his start in another industry where valve design and fluid dynamics are of paramount importance: plumbing. The Scottish-born and Detroit-raised Buick left school in 1869 to work in the industry.
