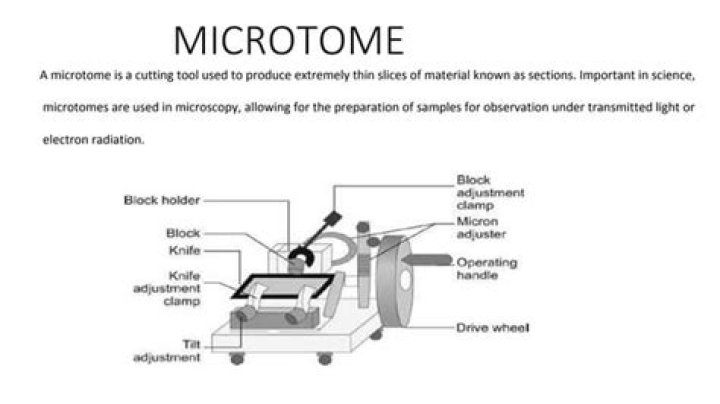

How does a microtome work

A microtome is used to make thin slices of tissue (usually 4 μm but can be 2–10 μm). The cut tissue is floated over a water bath, in order to eliminate wrinkles and distortion in the tissue, and picked up on a slide.

What is working principle of microtome?

The vibrating microtome operates by cutting using a vibrating blade, allowing the resultant cut to be made with less pressure than would be required for a stationary blade. The vibrating microtome is usually used for difficult biological samples.

How is the microtome's knife sharpen?

Microtome knife sharpeners are safe and easy to use, provide efficient sharpening of microtome knife edges. Honing procedure of knife is done through glass plates, copper and bronze plates. Honing refers to grinding the cutting edge of a knife on the hard abrasive surface to sharpen the knife.

What is the microtomy and explain the method of microtomy?

Microtomy is the technique of cutting tissues in very small sections. This technique is used for histological and pathological studies. A tissue (or small part of it) is embedded in paraffin wax and then cut using a microtome (a machine) to get thin sections.

What is the knife used in rotary microtome?

Electron Microscopy Technique: After embedding tissues in epoxy resin, a microtome equipped with a glass or gem grade diamond knife is used to cut very thin sections (typically 60 to 100 nanometer).

Does xylene remove alcohol?

It displaces alcohol fairly quickly from tissues and in turn, being an excellent paraffin solvent itself, can be displaced from tissues relatively easily by melted paraffin. Xylene Substitutes. Alkane and limonene based solvents have become widely available for use as clearing agents.

How do I clean a microtome?

Ensure that the lock is properly engaged. Always wear gloves when cleaning the microtome. Use a disinfectant that is effective against possible infectious agents. If using 10% bleach, be sure to rinse with water to avoid rusting of equipment.

Is the sections become smeared or deformed What are the possible causes?

Cutting resistance from the blade may cause the researcher to exert extra pressure on the segment or to use a sawing motion with the blade, both without realizing it. This results in sections that appear “smeared” or misshapen, usually in an oval shape.

What is the difference between microtome and Microtomy?

is that microtome is a special instrument that produces very thin slices of plant and animal tissues, for later examination by light microscope or electron microscope while microtomy is the preparation of very thin slices of animal or plant tissue by means of a microtome.

What are the main steps of Microtomy?

• Clamping the specimen. Always clamp the specimen block BEFORE clamping the knife or the blade. …
• Clamping the knife / disposable blade. …
• Adjusting the clearance angle. …
• Orienting the specimen. …
• Trimming the specimen. …
• Sectioning. …
• Changing specimens. …
• Pack up.

Article first time published on

Is done on a knife by Edge last with a toe to heel direction?

The procedure is the reverse of honing. The knife is first fitted with its appropriate back, then laid obliquely on the strop and with the cutting edge behind, (EDGE LAST) is pushed backward and drawn forward in a toe to heel direction.

What is a vibrating microtome?

Vibrating microtomes (Vibratomes) by Leica Biosystems help you to accurately cut tissue under physiologial conditions without freezing or embedding. These precise instruments maintain cell morphology, enzyme activity, as well as cell viability of the tissue.

How do you maximize the life of a disposable microtome blade?

Avoid touching the edge with any hard objects such as forceps or brush. Use the blade systematically, working from one end to the other. This will give you maximum life from every part of the blade.

What is freezing Microtomy?

Quick Reference. A microtome in which the tissue sample is frozen and maintained in a frozen state with liquid carbon dioxide. It is useful for (rapidly) obtaining sections of unfixed soft tissue.

Which gas is used for freezing microtome?

Carbon Dioxide gas is most commonly used with freezing microtome. This gives good results. Liquid Nitrogen is another substance used for freezing the tissue.

What is the importance of water bath in Microtomy?

A flotation bath or water bath is the intermediate step between cutting paraffin sections and placing them on slides. Simply sticking paraffin ribbons on slides will not work! A warm water bath allows tissue to relax and smooth out prior to being mounted on a glass slide.

How do I lubricate my microtome?

Put 2-3 oil drops on each cam and reassemble the knife holder. On Leica machines, set the cutting angle at 4-5 degrees, and place the knife holder back on the microtome. Your microtome should now be ready to go back to work.

How do you align a microtome?

1) Remove Blade from knife holder 2) Move microtome specimen head all the way back to the “home” position. 3) Insert Alignment tool into the specimen head clamp with the bubble level facing up (see figure #1). 4) Release orientation head locking lever so that the orientation head can be adjusted.

What is coarse trimming?

Coarse trimming is the removal of excess paraffin wax that is sitting around the tissue, which exposes the tissue in order to be sectioned. Post trimming the tissue is cut into thin slices and placed on glass slides and then fixed onto glass slides.

Does hematoxylin expire?

Use of expired hematoxylin impacts staining intensity, i.e., hematoxylin staining intensity decreased as the age of the expired reagents increased.

Is chloroform a clearing agent?

It is a quite gentle clearing agent and causes very little damage. It shrinks tissue hardly at all and does not cause appreciable hardening. … One serious disadvantage is that chloroform attacks rubber and plastics so it cannot be used on most modern automatic tissue processors, since the seals will be destroyed.

How do you stain H&E?

1. Remove the Wax. …
2. Hydrate the Section. …
3. Apply the Hematoxylin Nuclear Stain. …
4. Complete the Nuclear Stain by “Blueing” …
5. Remove Excess Background Stain (Differentiate) …
6. Apply the Eosin Counterstain.

What is embedding Mould?

EMBEDDING MOLDS – A REVIEW AND PROPOSED CLASSIFICATION Embedding is the process in which the tissues or the specimens are enclosed in a mass of the embedding medium using different types of mould e.g steel molds ,glass mold, plastic molds etc . Embedding is the crucial step in determining the orientation of sectioning.

What is tissue Tek?

Tissue-Tek O.C.T. is an embedding compound for cryosectioning, which is soluble in water. It mainly consists of glycols and synthetic resins. Tissue-Tek O.C.T. is used as matrix for cryosectioning of tissues. … the tissue samples can be positioned more easily in the microtome and have better qualities during sectioning.

How do you insert a punch biopsy?

The punch biopsy must be embedded so that sections are taken perpendicular to the epidermis. This typically means that the specimen will be laid on its side (it is rounded and has no clear edges), with the epidermis disc being clearly visible on one side.

How many different microtome knives are there?

There are two types of knives available for this type of microtome: the fixed knife and the disposable knives. Fixed knives come in many types with many cutting angles and the like.

What are the types of microtome knife?

1. Rotary Microtome Blade. A rotary microtome is a general-purpose device. …
2. Sledge Microtome Blade. …
3. Vibrating Microtome Blade. …
4. Ultramicrotome Blade. …
5. Laser Microtome Blade. …
6. Saw Microtome Blade. …
7. Cryostat Blade.

How much does a microtome cost?

We have already done the research for you, and the average cost of Microtome medical devices is currently $ 3,984.

How thin does a microtome cut?

A microtome is used to make thin slices of tissue (usually 4 μm but can be 2–10 μm). The cut tissue is floated over a water bath, in order to eliminate wrinkles and distortion in the tissue, and picked up on a slide.

Why is xylene used as a clearing agent?

The reason xylene works so well for tissue processing is that it makes tissues transparent so that paraffin can fully envelop the tissue. And when preparing slides for microscopy, xylene can remove any remaining wax from slides. In this case it is used as clearing agent.

What is the temperature of the paraffin the tissue is placed in Mcq?

The tissue is then placed in melted paraffin(56 c) and in the infiltration chamber, it is embedded in paraffin. After cooling the paraffin hardens and gives rise to the paraffin block, which is ready for sectioning.
