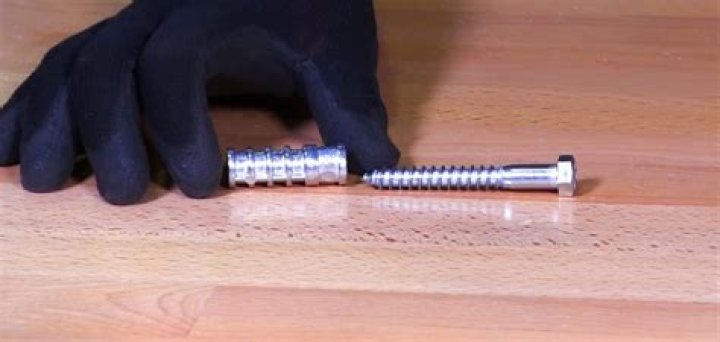

How does a lag shield work

SizeMinimum EmbedmentPull-Out (lbs.)1/4” Short1″1505/16” Short1-1/4″2363/8” Short1-3/4″4421/2” Short2″600

How strong are lag shield anchors?

SizeMinimum EmbedmentPull-Out (lbs.)1/4” Short1″1505/16” Short1-1/4″2363/8” Short1-3/4″4421/2” Short2″600

Are lag shields removable?

Installation Instructions After installation, the fixture is removable because the Lag Shield Anchor remains in the concrete and only the lag screw is unscrewed and removed.

Do I need lag shields?

Designated Diameter of Lag ShieldDiameter of Carbide Bit3/4”1”

How long of a lag shield do I need?

How do I decide if I need to use the long or short anchor? If the base material is very hard and dense, such old red brick, then the short shield should be used. If the base material is softer, like CMU or cinder block, use the long shield.

Can you use lag shield in Brick?

Installation Instructions Installing Lag Shield Anchors can be completed in four easy steps. These anchors can be used when working in concrete, brick and block base material and are best suited for light to medium duty fastening purposes.

Can you use a lag screw in concrete?

The short answer is Yes! You can install a Lag Screw into concrete. … Lag shields are concrete anchors that expand near the bottom to hold the shield inside of a drilled hole. They are made specifically for the installation of lag screws into masonry materials.

Can lag bolts go into brick?

Lag shields can be installed into the brick or the mortar joint and, because the design is versatile, they allow for a wide range of expansion. Keep in mind that a lag screw must be used to expand the anchor, and lag screws are available only in a hex head.

Can you use a lag shield in drywall?

They are also commonly used in drywall applications. It is not recommended to use heavy weight on these anchors especially in drywall as they will rip through the material. To install one of these anchors, first a hole must be drilled big enough for the toggle portion of the anchor to push though.

Which side of the lag shield goes in first?

Lag shield anchors allow lag screws to be installed into concrete and masonry walls. After drilling a hole into the material, lag shields should be tapped into place ribbed side first until flush with the surface. The lag screw can then be installed with a wrench or socket tool.

Article first time published on

Are lag bolts Good for Wood?

Lag screws are some of the toughest types of screws out there. Also called lag bolts, lag screws are generally used to connect heavy lumber and other materials that bear an intense load. … However, since wood screws are normally smaller than lag screws and don’t use nuts, they can’t bear the loads that lag screws can.

Do I need to drill pilot holes for lag screws?

Pilot or lead holes are typically used to ease the installation of large diameter lag bolts. Full points are not needed for large diameter lag bolts, because pilot holes should be drilled to ensure the heads do not break when torque is applied. …

What is the difference between a lag bolt and a lag screw?

Although these terms are used interchangeably, lags should technically be referred to as a screw and not as a bolt. A bolt is a fastener with machine thread that can accept a nut. A bolt is properly assembled and tightened by rotating the nut. … Lag screws are almost always used in wood applications.

What are lag shield concrete anchors?

The Lag Shield is a screw style anchor designed for use with lag bolts. It is suitable for use in concrete and the mortar joints of block or brick walls. In harder masonry materials, short style Lag Shields are used to reduce drilling time.

How do you attach a concrete wall without drilling?

Cut Nail. Using cut nails is an easy approach for attaching wooden items to concrete without a hammer drill. The cut nail has a square, tapered shape with a tip pa. These are driven through a board into the concrete underneath, much like nailing wood to the wood floor.

What is the strongest drywall anchor?

Traditional metal toggle bolts are the strongest of the bunch, but they’re not the simplest to install because they require drilling a hole that’s approximately three times wider than the diameter of the bolt (necessary to insert the anchor).

How much weight can drywall anchors hold?

Toggle bolts are the types of drywall anchors that can support up to 50 pounds, while steel hollow-wall anchors have a drywall anchors weight limit of up to 100 pounds.

What do the ribs on the sides of a plastic anchor prevent?

Typically, the tube has slits in the base to facilitate its expansion and ribs on the sides to prevent its rotation when tightening the screw. … The plastic screw anchor was invented in 1958 by Artur Fischer, a German inventor.

How do you set lag bolts?

To install a lag screw, first you have to align the materials you’re going to screw together. When they’re lined up, clamp them together so they stay in place. Then, using a bit with a slightly smaller diameter than your lag screw, drill a hole all the way through the materials where you want the screw to go.

When would you use a lag screw?

What Are Lag Screws Used For? Lag screws are often used in construction to fasten pieces of lumber together. A lag bolt provides a longer-lasting connection due to its length and is used for materials that may be subjected to a massive force or will bear a heavy load.

How do you remove lag shield anchors?

Lag Shield Anchors: These anchors require the insertion of a lag screw that expands the lag shield anchor. Sometimes, simply removing the screw may reverse the expansion of the anchor. Or, the anchor can be removed simply by pulling it out of the hole.

How much weight will a lag bolt hold?

If a lag screw with a 5/16-inch shaft is installed correctly, it can withstand pull-out, or withdrawal, of up to 212 pounds in close-grain hem, fir and redwood, and up to 266 pounds in larch Douglas fir, according to information from the American Wood Council.

Can you use lag screws for deck posts?

At connections carrying structural loads, such as deck ledgers or railing posts, use through-bolts or lag screws. Through-bolts are stronger and should be used where possible. For the heaviest connections on a deck, such as where ledgers attach to the house or to posts, use 1/2-inch bolts or lags.

How do you drill a lag bolt into wood?

Insert a 3/16-inch bit into the drill/driver for softwood. Insert a 7/32-inch bit for hardwood. Insert the bit into the hole and drill through the second piece of wood. If you don’t want to drill out the other side, place a piece of tape on the drill bit to indicate a stopping point 1/4 inch before breaking through.

Will a lag bolt split a stud?

If a lag screw (not “bolt”) is run in without a pilot hole, the wood (unless it’s very soft) tends to split locally around the screw shank. This may not result in a full split of the lumber, but it effectively reduces the grab of the threads on two opposing sides of the screw.

Can you use lag screw in plywood?

A 3/4″ piece of plywood spanning an area big enough for a 65″ TV isn’t going anywhere as long as its properly attached to studs on either side. Lag bolts will work fine.

How deep should a pilot hole be for a lag bolt?

Similar to wood screws, a stepped pilot hole is recommended for lag bolts. The pilot hole for the body (the unthreaded section of the shank adjacent to the head) should match the bolt size (3/8″ hole for a 3/8″ bolt, for example).

Are lag bolts stronger than deck screws?

Structural screws (also called “construction” screws) are stronger than lags and make longer-lasting connections. … The labor difference is so huge that by the time you finish drilling pilot holes and ratcheting in just a few lags, you could have finished the whole job with structural screws and be sipping a cold one.
