How does a fuse block work

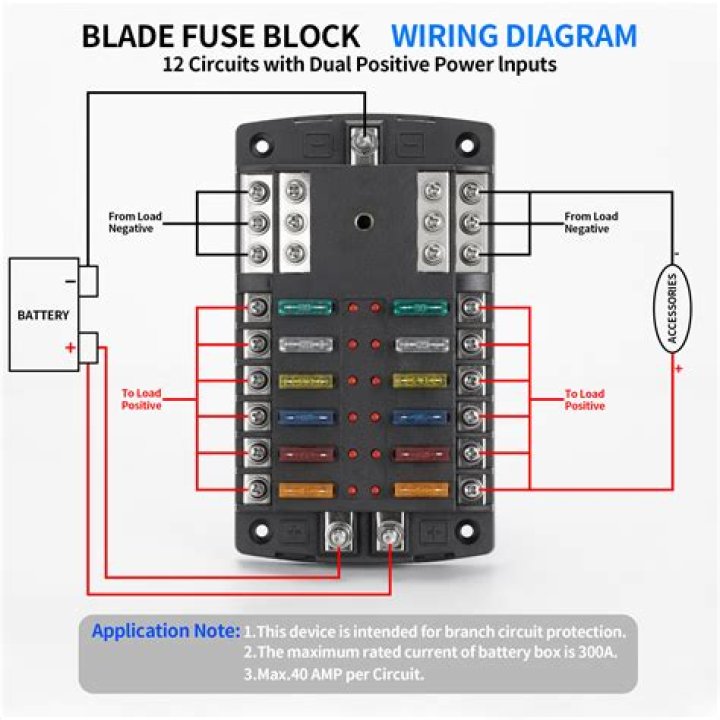

A fuse block provides multiple fuse circuits, usually 2 to 12 spaces. These circuits can be independent, with each having its own individual input and output wires, or ganged, with power shared across all circuits.

Are fuse boxes still legal?

Electrical codes change every three years to continually improve the safety of electrical systems that are installed. As a result no fuse panel currently in use in any home in the United States would comply with minimum code standards in effect today.

Can I sell a house with a fuse box?

Yes, you can sell a house with an old fuse box. But should you? Selling an older home that still has its original wiring and an old fuse box may not be easy, but it’s definitely doable.

How do you check a fuse to block?

Locate the small holes on each end of the blade-type fuses; those holes give you access to the blades inside the fuse. Insert the pointed tip of the red test lead first in one hole and then in the other. If you read 12-volts to ground on one end but not the other, the fuse is blown and needs to be replaced.

Does a 1950s house need rewiring?

Unless the wiring is the modern PVCu coated type, then a rewire is likely to be necessary. If you see any old rubber insulated cabling, fabric insulated cabling (used until the 1960s), or lead insulated cabling (1950’s) then it needs replacing as the insulation just crumble.

How do you tell if a fuse is blown without a multimeter?

To test a fuse without multimeter, take a flashlight equipped with a flat battery. Unscrew the bulb and get the battery. Place the fuse of one of the battery “blades” and the base of the bulb on the other side of the fuse. Put the bulb pad in contact with the second “blade” of the battery.

Does my fuse box need to be metal?

Do consumer units have to be metal? Since regulations changed in 2016, all domestic consumer units must be either enclosed in a non-combustible material or housed in a cabinet made from a non-combustible material.

Can you test fuses with a multimeter?

Test the fuse. If you’re using a digital multimeter set to measure resistance, touch the probes together to get an initial reading. Then put the probes on either side of the fuse and check if the reading is similar. If it is, then the fuse works properly. If you get no reading or “OL”, then the fuse has blown.

How do you tell if a fuse is blown with a multimeter?

Place the multimeter on the ohmmeter setting and place the probe leads across the 2 ends of the fuse. If the reading you get is very low, a few ohms, then the fuse is continuous and, thus, good. If the reading is get is very high, such as severeal Megohms, the fuse is broken and, thus, bad, and should be replaced.

What does OL mean on a multimeter?

Infinite resistance (open circuit) is read as “OL” on the Fluke meter display, and means the resistance is greater than the meter can measure. Resistance measurements must be made with the circuit power off – otherwise, the meter or circuit could be damaged.

Article first time published on

What is the symbol for continuity?

Continuity: Usually denoted by a wave or diode symbol. This simply tests whether or not a circuit is complete by sending a very small amount of current through the circuit and seeing if it makes it out the other end.

Is it illegal to have an old fuse box?

Are old fuse boxes illegal No, old fuse boxes are not illegal. However, if you do have an old fuse box in your property please consider health and safety. It might not be compliant with current regulations and won’t have the latest RCD protection which could save your life. Consider upgrading it to a newer model.

How much does it cost to change a fuse box to a breaker box?

Replacing a fuse box with a breaker box runs $1,000 to $2,000. It may cost more if the wiring needs a complete overhaul. Some older houses have a fused electrical service. There are positive aspects of both, but a modern circuit breaker usually offers the most flexibility for future home improvements.

How long do fuses last in home?

Some manufacturers say 20 years, others say 30, and still others recommend replacement after 40 years. In fact, these devices can continue to function reliably long after they reach those ages; just replace them (or have them replaced by a licensed electrician) whenever they fail to reset after tripping.

How much would it cost to rewire a house?

Most homeowners pay an average of $2,100 to rewire their homes, although prices can range from $1,500 to $10,000 with labor and materials, according to Thumbtack, a third-party service that pairs homeowners with professional service providers.

How much does a full house rewire cost UK?

Size of HouseAverage Cost (plus VAT)Job DurationCost to rewire 2 bedroom house£1,500 – £3,0003 – 4 daysCost to rewire 3 bedroom house£3,000 – £5,0005 – 7 daysCost to rewire 4 bedroom house£5,000 – £7,0007 – 10 daysCost to rewire 5 bedroom house£7,000 – £9,00010 – 14 days

How much does it cost to rewire a 2000 sq ft house?

The average cost to rewire a 2,000 sq. ft. home is between $12,000 and $20,000. These costs include the removal and replacement of all wiring and the installation of a new circuit board.

Are wired fuse boxes legal?

The consumer unit (colloquially known as the fusebox) must meet the legal requirements from the time it was installed, even if that was some years ago. Therefore if you do have such a fuse box present, then there’s not necessarily a specific legal requirement to replace it with a modern electrical consumer unit.

When did metal fuses become law?

17th Edition Amendment 3 of BS 7671:2008 came into effect in July 2015 and stressed the importance of enhanced fire risk protection. 1st January 2016 marks the implementation of the switch to metal clad consumer units for all new electrical installations and designs.

Does my fuse box need an RCD?

Many electricians will tell you that having a RCD is essential and is not usually present in older fuse boxes. It is a potential life saver as it can detect small leakage currents in the range 5–30 mA and can disconnect in less than 300ms which may prevent electrocution and injury.

How do I know if a fuse is burnt?

Remove the fuse from its holder. In some cases you may need a small screwdriver to unscrew the fuse holder cap. Look at the fuse wire. If there is a visible gap in the wire or a dark or metallic smear inside the glass then the fuse is blown and needs to be replaced.

Can a fuse test good but be bad?

The only way to tell if a fuse is good or bad is to remove it from the circuit and test it with VOM meter on the resistance scale. A good fuse will have no resistance whereas a bad fuse will read infinite resistance.

Can I change a fuse with the power on?

With the main power still off, unscrew the blown fuse and remove it. It’s important to replace the fuse with another of the same size, type, rating, and amperage. Never replace a blown fuse with one of a higher amperage, which can be dangerous or can cause damage to your electrical panel wiring.

What does it mean if no voltage is present on either side of a fuse?

Across the fuse, 0V indicates a good fuse and Source voltage indicates a bad fuse. From fuse to ground (or return), Voltage on the source side and voltage on the load side indicates a good fuse. Voltage on the source side and no voltage on the load side indicates a bad fuse.

Does a flat screen TV have a fuse?

In the U.S., there is only one fuse required for TVs; the AC line fuse. Most of these are type F or GMA fuses. Some are in holders and others have pigtail leads which are soldered into the boards. There are other less often used types but in every case they are on the board where the AC cord connects.

Can a fuse go bad without blowing?

Due to the way fuses are engineered, the likelihood that a fuse would become faulty without blowing is pretty slim, but there are rare instances in which a fuse might appear completely fine, even though no current runs through it.

Should a fuse have continuity?

A good fuse, for example, should have continuity. A DMM emits an audible response (a beep) when it detects a complete path.

What are the symbols on multimeter?

VariableSymbolSymbolVoltageVVCurrentIAResistanceRΩ

What is ceramic fuse?

Ceramic fuses protect against overcurrent in high-current circuits found in AC or DC electronics, appliances, and electrical equipment. They have higher interrupting ratings and withstand higher temperatures than glass fuses.

What does ghost voltage indicate?

If the measurement points are energized with a hard voltage, the meter will simply display the voltage reading. If the measurement points contain a stray or ghost voltage, the meter will read very close to zero volts, indicating the circuit or connection is not energized.

What does a 0 ohm reading mean?

‘0’ reading on an ohmmeter means there is “no resistance” being detected.
