How does a EGR valve work

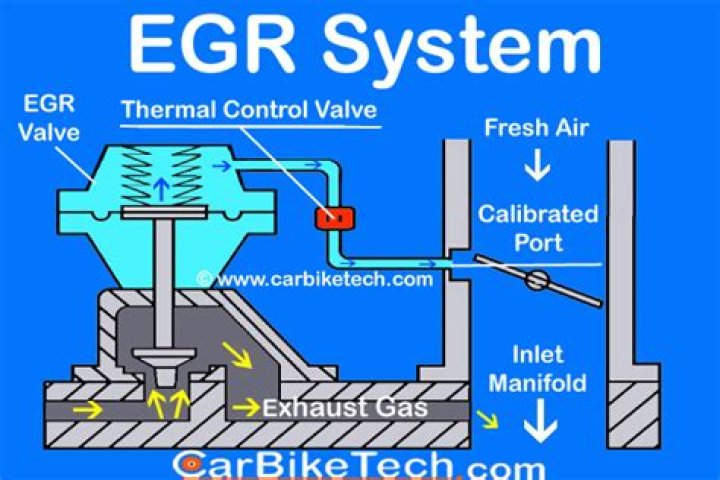

The EGR system works by returning a small portion of exhaust gas to the engine’s combustion chambers through the intake manifold, lowering combustion temperatures and therefore reducing the amount of NOx emitted. The EGR valve is the main component of the EGR system and it’s normally closed.

What are the symptoms of a failing EGR valve?

• Your engine has a rough idle. …
• Your car has poor performance. …
• You have increased fuel consumption. …
• Your car frequently stalls when idling. …
• You can smell fuel. …
• Your engine management light stays on. …
• Your car produces more emissions. …
• You hear knocking noises coming from the engine.

Should EGR valve be open or closed?

The EGR valve has two primary settings: open and closed, although the position can vary anywhere in between. The EGR valve is closed when the engine is starting up. … However as more torque and power is required, for example during full acceleration, the EGR valve closes to ensure as much oxygen enters the cylinder.

What activates the EGR valve?

When the engine is idling, the EGR valve is closed and there is no EGR flow into the manifold. The EGR valve remains closed until the engine is warm and is operating under load. As the load increases and combustion temperatures start to rise, the EGR valve opens and starts to leak exhaust back into the intake manifold.

What happens if EGR valve is stuck open?

If the EGR valve is stuck in the open position, the vehicle will experience a rough idle or frequently stall. If the valve is not completely stuck open but never achieves a tight seal when it closes, the engine can “miss” or shudder because of the improper mixture of the combustion elements.

Can car run without EGR?

It might affect the environment but it is not harmful to the engine. Some people are running for more than 50k km without EGR. The EGR is disabled in all remapping.

Will a bad EGR valve throw a code?

In modern cars plugged EGR or Stuck open EGR can throw a code. Stuck shout EGR may not cause any running problems but EGR FLOW is monitored the ECU with by either Maf,map,temp sensor or some feed back circuit then it will throw a code. but in older cars it may not throw code.

Will a bad EGR valve cause a misfire?

EGR valve can cause a misfire A faulty EGR valve can cause a misfire all too often. It is usually caused by clogged passages inside your car’s intake. It will also diminish your vehicle’s power output.

At what temperature does an EGR valve open?

DieselGasoline (direct-injection engine)Exhaust gas temperature when the EGR system is active450°C450°C to 650°CWhy is an EGR system used?To reduce nitrogen oxide, soot particles, and noiseTo reduce nitrogen oxide and fuel consumption

Where is EGR sensor located?

Mechanical EGR valve position sensors are mounted on the top of the EGR valve. EGR pressure sensors will be located close to the EGR valve as the exhaust gas hose must be connected to the sensor as well as the valve.

Article first time published on

Can I clean EGR valve without removing?

One of them is the EGR valve cleaning product. I personally have used this product for cleaning my EGR valve without removing it. The canister is 500ml and you can use it to clean your EGR valve twice. The Liqui Moly EGR valve cleaning product will not damage any seals on the engine.

Is there a fuel additive to clean EGR valve?

STP® Professional Series Diesel EGR Cleaner Cleans air intake system inlet valves and EGR valves. STP® Professional Diesel EGR Cleaner is designed to quickly dissolve gum, lacquer, carbon and tar like deposits from the air intake system.

Can a bad EGR valve cause hesitation?

A clogged or malfunctioning EGR valve can disrupt the vehicle’s air-fuel ratio, which can cause engine performance issues such as a reduction in power and fuel efficiency. The vehicle may also stall or hesitate while accelerating.

Can a bad EGR valve cause o2 sensor code?

Any vacuum leak, including the leak in the EGR valve control system that you described, could cause the P0153 code. If the two codes do not recur, you should still check the output of the oxygen sensor for correct waveform and output (switching between 0.2 to 0.9 volts).

Can a blocked EGR cause limp mode?

A faulty EGR can result in excessive carbon/soot at the turbine end of the turbo charger. This could cause the VNT mechanism to become clogged and stick which in many cases will cause engine management lights to appears along with reduced performance known as “limp mode”.

Does removing EGR increase power?

Does removing EGR increase power? – Quora. Yes, it does. You’re looking at increase around 1%, which is not significant enough to notice. By EGR removal, you not only increase oxygen density in air/fuel mixture, but saving inlet manifold from becoming dirty.

What is a good indicator of rich or lean conditions?

Taken with the CO2 maximum, the oxygen content is a clear indicator of the transition from rich to lean mixture range, or leaks in the manifold or exhaust systems or combustion failures. With rich mixture most of the oxygen is burned during combustion.

Does EGR valve affect starting?

The exhaust gas recirculation (EGR) valve introduces a measured amount of exhaust gases; into the intake manifold to get re-burned. … When the valve sticks open it may prevent your engine from starting. Other symptoms of a stuck-open (EGR) valve include rough idle and stalling.

What sensors control EGR?

• Temperature Sensors. Intake manifold and EGR temperature can be measured with commonly available temperature sensors. …
• Pressure Sensors. …
• Flow Sensors. …
• Position Sensors. …
• Gas Composition Sensors.

Do petrol cars have EGR valves?

EGR stands for Exhaust Gas Recirculation and virtually all modern cars, petrol or diesel, employ this technique to control pollutants in the exhaust via an EGR valve. Some use what’s called ‘internal EGR’, where there is no EGR valve as such.

Is EGR valve part of the engine?

Integral to the vehicle’s engine management system, the aptly named exhaust gas recirculation valve, or EGR valve for short, recirculates finely metered quantities of exhaust gas to the engine intake system for increased engine efficiency, reduced fuel consumption and lower NOx emissions.

Is it worth cleaning EGR valve?

Cleaning your EGR valve will solve your car’s engine performance issues related to any clogging or system passages problem with the valve. Even more importantly, it’ll prevent serious engine damage and expensive repairs. … In severe cases, this develops into violent detonations that will seriously damage your engine.

How do you clean a PCV valve without removing it?

Oftentimes, you’re better off simply replacing the valve which is difficult to clean even when removing it. However, there is one option you can try. While the crankcase tube is disconnected, you can attempt to spray WD-40 down into the tube. Leave the tube up to get the penetrator to the valve, thus cleaning it.

How much does it cost to get EGR valve cleaned?

The cost of parts will be somewhere around $190 to $270, while the cost of labor will be anywhere from $60 to $80.

Can I use carb cleaner on EGR valve?

To clean your EGR valve, start by cleaning the vacuum hose with carburetor cleaner or a pipe cleaner. Then, unbolt the valve, and clean the return tube and entry port using carburetor cleaner, and a toothbrush or pipe cleaner.

Does carbon cleaning clean EGR?

Your engine will be run on our unique fuel to clean both pre and post-combustion, providing all the same benefits. The TerraClean system will also clean through both Exhaust Gas Recirculation (EGR) systems and Diesel Particle Filters (DPFs), where fitted, providing there is adequate air flow.
