How does a dumbwaiter work

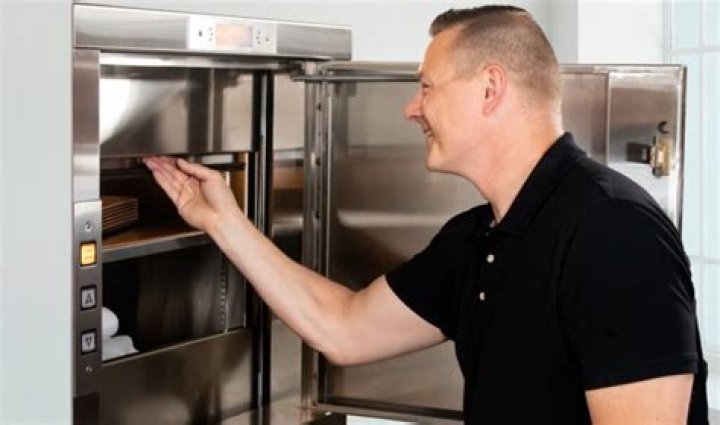

Manual dumbwaiters are operated by pulling on a hand rope to lift or lower the car. Although some manual models are still available, the predominant dumbwaiter is powered by electricity. Powered dumbwaiters require just a push of a button to raise or lower the car. The motor is usually mounted above or below the car.

How did a dumbwaiter work?

How does a dumbwaiter work? Early versions were simple human-powered devices, which looped a rope around a pulley or rafter controlled manually. Today, modern dumb waiters are powered electrically – so no hand-pulling is required!

Can a person fit in a dumbwaiter?

Whilst they vary in size themselves, an elevator is equipped to carry 5 to 50 people at any given time. On the other hand, a dumbwaiter is no bigger than a large cardboard box which means that it is unsuitable for people to use. In fact, they wouldn’t even be able to fit inside.

Are dumbwaiters legal?

While many dumbwaiters have either been walled up or converted into pantry nooks or decorative spaces, they are still legal, according to Buildings Departments, provided they have kept up-to-date with building codes, which specify fire resistance and proper venting of the shafts and the use of an approved safe …

Are dumbwaiters still used?

Today, homes with dumbwaiters tend to be newer: 45% of homes listed with dumbwaiters were built after 1999, while only 8% were built between 1850 and 1950, according to data from Realtor.com.

How much does it cost to install a dumbwaiter?

Residential Dumbwaiter CostAverage range$8,000-$12,000Minimum cost$3,000Maximum cost$20,000

How much weight can a dumbwaiter hold?

Weight capacity—Residential dumbwaiters usually have a weight capacity of 100 lb. to 200 lb. A commercial dumbwaiter may be purchased if a greater weight capacity is required.

How is travelator and dumbwaiter different from an escalator?

is that travelator is (british) a moving walkway; a slow conveyor belt that transports people horizontally or on an incline in a similar manner to an escalator while dumbwaiter is (obsolete) a table or set of trays on rollers used for serving food.

What are the different types of dumbwaiters according to their fixing location?

• Window Type Dumbwaiter – these are our most popular option. …
• Floor Type Dumbwaiter – these are installed where there are goods that need to be loaded onto a forklift, or pallet truck. …
• Goods Lift Dumbwaiter – this is a larger model, and it looks more like a traditional elevator.

What is a dummy elevator?

A dumbwaiter is a small freight elevator or lift intended to carry food. … When installed in restaurants, schools, hospitals, retirement homes or in private homes, the lifts generally terminate in a kitchen.

Article first time published on

How much does elevator cost?

ItemCost1. Elevator Unit$25,0002. Installation Labor$20,000-$30,000Total Cost$45,000-$55,000

How much is a residential dumbwaiter?

Residential Dumbwaiter Costs Residential dumbwaiters can range from $13,000 – $20,000. Both the cost of the dumbwaiter and the cost of installation contribute to this price range.

Where does the word dumb waiter come from?

From dumb (“unable to speak”) +‎ waiter, originally separate words and describing the portable table’s inability to relate gossip after the meal. By the use of the term to describe small service elevators in American homes in the 1840s, it simply meant dumb as “mechanical”, “unable to speak at all”.

What supports a hydraulic elevator?

Hydraulic elevators are supported by a piston at the bottom of the elevator that pushes the elevator up as an electric motor forces oil or another hydraulic fluid into the piston.

How big is a dumbwaiter?

Dumbwaiters are typically the most economical choice for a lift system. Available in any size configuration up to: 39″ deep x 39″ wide x 48″ high and usually carrying 100-750 lbs. Dumbwaiters can stop at counter height for hand loading or floor level for carts and hand trucks.

What is a dumbwaiter table?

An antique dumb waiter is basically a side serving table also known as a buffet which would be in a dining room for storing the food that is about to be served. Dumb waiters were often used in pairs in large houses from the mid-18th century.

What is the meaning of Rule 1220 standard?

(1) “Elevator” shall mean a hoisting and lowering mechanism equipped with a car or platform, which moves in guides in substantially vertical direction, serving two or more floors of a building or structure. …

What is the minimum depth of an elevator pit?

Lift pits: – Minimum depth of lift pit required is 1.5 meter. The lift pit should be completely watertight.

What do you call the steel track which controls the travel of the elevator?

Rail – The rail is the steel track that guides the elevator when it travels up and down the hoistway. Depending on the model, there may be one or two rails.

Who is the largest elevator company?

The world’s largest elevator and escalator makers Schindler, Kone, and Otis are ranked as the major elevator and escalator manufacturers worldwide.

How are elevators powered?

They are typically powered by electric motors that drive traction cables and counterweight systems such as a hoist, although some pump hydraulic fluid to raise a cylindrical piston like a jack.

Is escalator and elevator same?

Elevators, or lifts, carry passengers and freight up and down; escalators are moving staircases from one story of a building to the next; and moving sidewalks carry people horizontally or at a slight incline.

Does a 2 story building need an elevator?

Elevators are the most common way to provide access in multistory buildings. … ILLUSTRATION 1: A two-story office building has 40,000 square feet on each floor. Because the building is less than three stories, an elevator is not required.

Are elevators in homes safe?

The answer is yes, modern home elevators are very safe. With national safety codes, local building codes and extra safety measures, home elevators today are designed to ensure a high level of safety.

How much does it cost to put an escalator in your house?

Escalator Cost Installing an escalator costs $100,000 to $200,000, depending on size and whether you have to retrofit. Although small systems might technically fit in a house, their footprint is usually too large.

What is a food lift called?

SOMETIMES CALLED A MICRO LIFT, A SMALL SERVICE LIFT, A FOOD LIFT OR A KITCHEN LIFT, DUMBWAITER LIFTS ARE IDEAL FOR TRANSPORTING FOOD AND DRINK BETWEEN LOCATIONS OR FLOORS IN A RESTAURANT, BAR OR PUB.

What is another name for a dumb waiter?

elevatorhoistdumb waiterpaternoster liftplatformcompartment
