How does a deep well work

Deep-well jet pumps are also above the ground, but they draw water by using two pipes. One of these pipes draws water out of the well, while the other pushes the water up. A deep well jet pump sucks up water from depths as great as 110 feet, and a foot valve is necessary for priming the pipe.

How long does a deep well last?

The average lifespan for a well is 30–50 years.

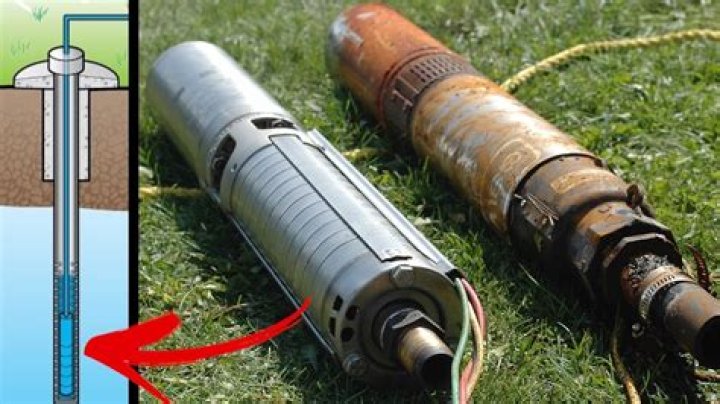

How does an underground well pump work?

A submersible well pump is designed to operate beneath the earth’s surface. … When a pressure switch is turned on, the impeller begins to spin drawing water into the pump. The water is then pushed through the pump body and brought to the surface.

How does a well fill with water?

If you dig a hole into the ground that ends above the water table, most of the water at this depth is stuck to bits of soil and rock, so that little water empties out into your hole. … A “well” is simply a hole dug deep enough that it penetrates below the water table and therefore fills up with water.

How deep in the ground is a well pump?

Deep well pumps can be used in wells as deep as 90 – 300′ below ground. Unlike shallow well pumps, deep well pumps are submerged inside your well. Considering these pumps can be several hundred feet below ground, a 3-wire model makes maintenance easier.

Does a well need maintenance?

Regular maintenance of your well is required to ensure the continued safety of your water and to monitor for the presence of any contaminants. … All hazardous materials, such as paint, fertilizer, pesticides, and motor oil, should be kept far away from your well.

Does a deeper wells mean better water?

In general, when it comes to water quality and well depth, there’s one golden rule: the deeper the well, the better the water quality. As you go deeper down, there’s a higher chance that the water you encounter will be rich in minerals.

How deep should a well be for drinking water?

For drinking water wells it’s best to be at least 100 feet deep so that surface contaminants cannot enter the well. The average well depth for private homes is between 100 to 800 feet [2]. You may need a deeper or shallower well if your area has different geology than another region of the country.

Does rain fill your well?

YES! Rainfall has a direct impact on the local water table, which may immediately impact your residential well if it is supplied by shallow aquifers. … Your well may not ‘fill up’ when it rains, but it does reap the indirect benefits.

How fast do wells refill?

Well water can replenish at a rate of 5 gallons per minute on average, but it will vary. It depends on the age of your well, how long you’ve been using it, the well’s location or geology, and the aquifer the well taps into to replenish its water level.

Article first time published on

Does a deep well pump need a pressure tank?

While there are automatic pumps that do not need pressure tanks, it is recommended that you have a pressure tank for normal pumps. The pressure tanks will extend the lifespan of your well pump and also maintain water pressure throughout your home. It is also a necessary tool to avoid burning the pump.

Does a well pump need to be submerged in water?

For a submersible pump to operate, it must first be fully submerged in water. Then you can turn on the pressure switch for the impeller to start moving water into the pump. The water collected in the pump is then moved to the surface and stored in a water storage tank.

What does it cost to dig a well?

A 20-feet-deep well costs Rs. 15,000 to dig. If special rings are used, the cost can go up to Rs. 35,000 for the same depth.

What depth is considered a deep well?

Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but… When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area.

How far from the bottom of a well should the pump be?

Pumps should never be set directly at the bottom of a well. It is usually best to place the pump 10 to 20 feet up from the bottom of the well.

How often should you treat well water?

Homeowners with private wells should have their well water tested every 3 to 5 years for some contaminants, including bacteria. If these tests turn up positive for bacteria, chlorinating the well may be a way to resolve the problem.

Can you drink well water?

Well water can be safe for drinking and all other household needs, as long as you make sure to test your water supply regularly and select treatment solutions in line with your results. Learn more about the well water treatment options that are available for your specific needs.

How do you maintain a deep well?

Keep hazardous chemicals, such as paint, fertilizer, pesticides and motor oil away from your well. Periodically check the well cover or well cap on top of the casing (well) to ensure it is in good repair. Always maintain proper separation between your well and buildings, waste systems, or chemical storage facilities.

Does water rise in a well?

Water levels fluctuate in response to changes in the quantity of water stored in that particular area of the aquifer. When the quantity of groundwater in an aquifer increases, water levels in wells rise.

How long can I run my well to fill a pool?

Even if your well has a high flow rate, we recommend filling your swimming pool slowly over the course of a day or two – or longer if you’re filling an extra-large pool.

How can you tell if your well is low?

Low Water Table – If you have experienced a drought or dry spell, there may be a lack of water in your well. The main signs of this would be sputtering or spitting of water from the tap, muddy and murky water or a noticeably off taste to your water.

How far away from your house can your well be?

Any contamination in your neighbor’s well can travel into your well. Some activities legally require more than a 50-foot zone of protection. As a general guidance, personal drinking water wells should have a minimum horizontal distance of at least 10 feet and preferably 25 feet from such boundaries.

Can you drill an existing well deeper?

This is the process of re-drilling a well that already existed, and it helps to create, more space for water that springs from underground. Before the deepening process, the casing might also need to be extended over the ground, which makes it easier to reach the surface.

What will happen to a well if the water table drops below the bottom of the well?

When water levels drop below the levels of the pump intakes, then wells will begin to pump air – they will “go dry.” Pumping a well lowers the water level around the well to form a cone of depression in the water table.

How can I tell how much water is in my well?

To determine the amount, you must measure the depth to water and the total well depth. Subtracting the depth to water from total well depth will give you length of the water column. Multiply the length of water column in feet by the gallon volume per given diameter.

What happens if your well runs out of water?

If your private well is running low on or has run out of water, you have a few options to consider. Possible solutions include lowering the water pump, deepening the well and drilling a new one. … Depending on your location, drilling can also be performed to deepen your well and reach more water.

How much water can a well produce per day?

Dealing with low-yielding wells requires an understanding of peak demand. A well that yields only 1 GPM of water can still produce 1,440 gallons of water in day. However, water use in a home or farm does not occur evenly during the day.

Is a 20 gallon pressure tank big enough?

A 20 GPM pump needs a tank with 20 to 40 gallons of storage. Almost 2/3s or more of a tanks volume is filled with compressed air, it takes a very large tank to hold 10 to 40 gallons of water. The higher the pressure switch setting, the less water volume a tank can store.

What is a bladder tanks for Wells?

How does a well pressure tank work? A well pressure tank uses compressed air to push pressurized water out of the tank and into your home. Pressure tanks have a diaphragm, also called a bladder, that separates a chamber of air from the water. As the tank fills with water, it compresses the air chamber.

Can a pressure tank be too big?

The downsides to a larger tank are simply that it costs more and takes up more space. The only real problem is if you have too small of a tank you’ll cause the pump to cycle too quickly which wears it out faster.

What is deep well?

Definition of deep well : a well in which the water level is at a depth exceeding 22 feet beyond which the ordinary suction pump does not operate satisfactorily.
