How does a beer shank work

Shank: The shank is a thick, cylindrical chunk of metal with a thread pattern (7/8″-14) on the outside and a bore through the middle. Beer travels through the bore, and the external threads accept a lock nut (6) that keeps everything securely in place.

Are all beer shanks the same?

The shank connects the beer line and the tower to allow for a solid flow of beer. Though most shanks are pretty basic, their design can vary slightly depending on the type of Draft Beer Tower you plan on using. For faucets, you can choose from chrome, stainless steel, brass, or plastic to find the right look.

What thread is a beer faucet?

Beer thread is the standard threading used on commercial Sanke keg couplers and beer faucet shanks. It is commonly measured as 7/8″-14 or 29/32″-14 in the U.S. and 5/8″ BSP in Europe and other parts of the world.

How big is a beer Shank?

Bores – The drilled hole in the center of the shank the beer passes through is referred to as the “bore.” Most beer shanks are available with either 3/16” I.D. (inside diameter) bore or 1/4” I.D.bore.

What is the best beer tap system?

PRODUCTEditor’s Choice Perlick 630SS Standard draft beer faucet Most beers, may require adjustment Stainless Steel $$VIEW LATEST PRICE →Bev Rite Faucet with Lever Standard beer tap faucet Beer, wine, coffee, water, etc. Stainless Steel $VIEW LATEST PRICE →

What is a keg coupler?

Keg couplers, also known as keg taps or keg keys, attach to the top of your keg, connecting it to the gas line and the beer line and allowing CO2 to flow into the keg and delicious beer to flow out of it.

What are beer taps called?

While other kinds of tap may be called faucet, valve or spigot, the use of tap for beer is almost universal. This may be because the word was originally coined for the wooden valve in traditional barrels.

What do I need to build a keezer?

1. Chest freezer, minimum of 7.0 cu. …
2. Temperature controller such as an Inkbird.
3. Enough 2×6 (or 2×8 or 2×10) non-treated wood to go around the freezer’s top, called a “collar”
4. Enough taps, CO2 regulators, CO2 manifolds and lots of vinyl or silicone tubing.

How long of a beer shank do I need?

For instance, if you are mounting them to the wall of a walk-in cooler and the cooler has 6-inch thick walls you’ll need at least an 8-inch shank to go through the wall and have enough sticking out inside the cooler to connect the mounting nut and the beer line hose nut to.

What thread size is a beer tap handle?

All draft beer faucet handles and faucets manufactured for the U.S. market have the U.S. beer industry standard 3/8″-16 UNC threads. Those manufactured for markets outside U.S. have a European metric thread specification.

Article first time published on

Why does my beer tap stick?

Due to the piston type design of faucets, this is common and there is a simple solution to resolve this problem. When this happens, the faucet needs to be cleaned. Steps to Clean: Shut off the CO2 and remove the coupler from the keg to prevent beer from flowing when you disassemble the faucet.

Are sub kegs worth it?

Verdict. The Sub won’t appeal to everyone, but it works really well and allows you to enjoy as much or little fresh beer as you like, whenever you like. If you’re concerned about the lack of control over temperature, don’t be.

How can I buy a keg of beer?

Large liquor retailers like “Liquor Barn” are going to be the most inexpensive places to buy kegs, aside from the actual brewery (if they even sell on-site). If you can get a keg at a smaller retailer closer to you, you should consider it, though, because it will save you gas money.

How long does a keg of beer last?

For a properly stored keg in a kegerator, how long the beer will remain fresh will depend on the style of beer. Pasteurized beers can stay fresh from three to six months. For non-pasteurized beers, you can expect the keg to stay fresh approximately two months.

How do beer lines work?

Any draft system requires pressurized gas to propel beer from the keg to the faucet. When this pressurized gas is pushed into the keg through the coupler, it forces the beer out into the beer line where it eventually travels up to the tap so you can pour a pint on demand.

What is a beer fob?

First off, FOB stands for “Foam on Beer” but we like to call them profit enhancers. FOB’s are specifically designed for long draw beer systems to prevent the beer line from filling with air when a keg kicks. … The FOB’s shut off the flow of beer at the faucet which allows for keg changed with little or no waste.

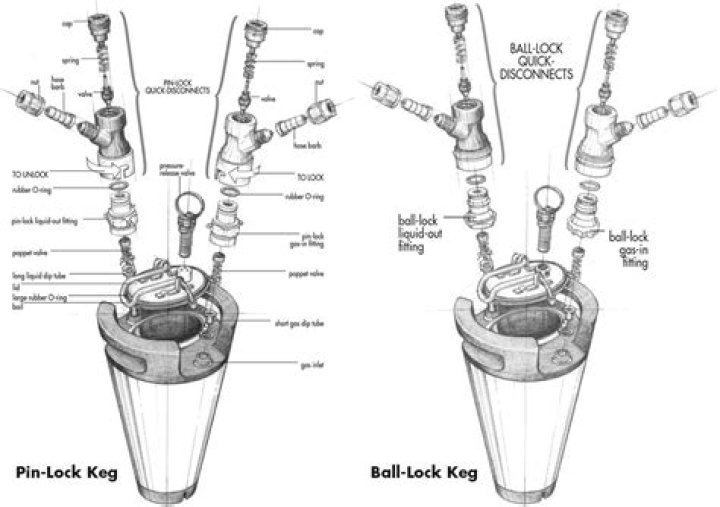

What are the different types of kegs?

There are three styles of kegs that you can use. There are Ball Lock, Pin Lock, and sankey kegs. Ball and Pin lock are very similar, but their small differences do set them apart. Sankey kegs are most used by commercial breweries, but can be used by a homebrewer just as well.

What coupler does GUinness use?

The U System coupler is often dubbed the GUinness/Diageo coupler. It is compatible with European “U” system kegs. This system takes its name from the English manufacturer UEC.

What type of coupler does GUinness use?

When the F1 silver handle is in upright position, the piston will have withdrawn into the coupler. The valve face on the keg neck will have two teeth which match up to the receivers on the coupler. Match it up, and the teeth sit into the groove of the coupler.

What tap does Stella Artois use?

Often referred to as the European Sankey coupler, the S-type keg coupler is used for popular European brews like Amstel, Pilsner Urquell, Newcastle, and more. Alternative names for this type include: Stella Artois keg coupler type.

What size shank do I need for keezer?

The 4 1/8” shank is the default because this will fit through the door of most refrigerators. Also, when working with shanks It helps to have a little extra shank inside the kegerator or keezer because it helps keep the shank cold so your beer is not hitting a warm shank and causing unnecessary foam.

Which is better keezer or kegerator?

The more customization involved in building a keezer, the higher the costs will be. However, a pre-built kegerator is much easier for many to own and maintain because it requires only simple assembly and the parts included are designed to perfectly dispense your beverage.

Can you use a freezer as a kegerator?

Commercial keg coolers with tap systems get pricey pretty quickly so I decided to convert an old chest freezer (donated from a friend) into a kegerator, otherwise known as a Keezer. These are perfect for home brewers and beer enthusiasts.

What are tap handles made out of?

Most tap handles today are made from molded resin that are hand painted, and with this process you can get achieve amazing detail. Tap handles can also be made from wood, acrylic, metal, porcelain, or a combination of materials.

What is a tap handle tool?

A tap wrench is a hand tool used to turn taps or other small tools, such as hand reamers and screw extractors.

How do you run a beer line through a wall?

Wrap the beer and glycol lines in mylar bubble wrap and then heavy foam pipe insulation. Insulation – a product that is a combination of mylar and air bubble wrap is a good choice for insulating beer lines for short runs. Double wrap this material around the beer line(s), with some foam pipe insulation around that.
