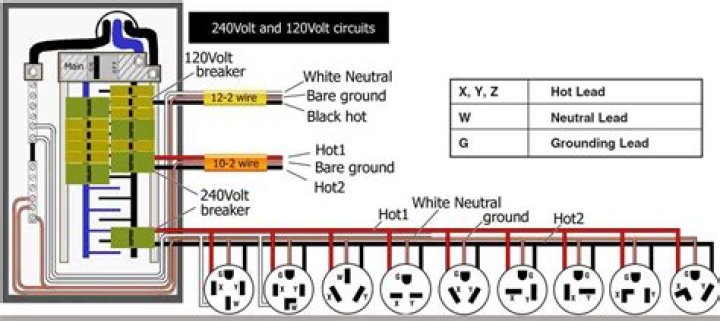

How do you wire 240 volts

A 20-amp 240-volt circuit calls for 12-gauge wire; a 30-amp circuit calls for 10-gauge wire; a 40-amp circuit calls for 8-gauge wire; and a 50-amp circuit calls for 6-gauge wire.

What wire do you run for 240 volts?

A 20-amp 240-volt circuit calls for 12-gauge wire; a 30-amp circuit calls for 10-gauge wire; a 40-amp circuit calls for 8-gauge wire; and a 50-amp circuit calls for 6-gauge wire.

Do you need a neutral wire for 240V?

For a 240V load, a neutral wire is not needed. Most 240V appliances, however, have some 120V loads such as timers or control circuits which is why the neutral is usually provided, “just in case.” The only time a 240V only load is commonly seen in a residential settings would be a well pump motor.

How many wires are needed for 240V?

120V and 240V need two wires to complete circuit, plus ground wire for safety. 120V requires 1 hot and 1 neutral. 240V requires 2 hots. Neutral is not needed for 240volt electric circuit, but is sometimes included on electrical device.

What size breaker do you need for 240 volts?

According to the National Electric Code heating circuits are considered a continuous load and therefore must be derated by 25%. (For example: a 20 Amp heating circuit cannot have more than 16 Amps of load connected.) 120 Volt heaters require 1-Pole circuit breakers; 240 Volt heaters need 2-Pole breakers.

Can you get 240V from a single pole?

Voltage from each pole to neutral is 120V. Voltage between any two adjacent breakers, on either side of the panel is 240V. 240V requires service from each panelboard bus, so there is no way to get that from a single breaker.

Can you get 240 volts from single phase?

In North America it is 240 V split phase, which is to say it is 240 V on two separate wires with 120 V each, which are 180 degrees out of phase, and a neutral wire at 0 V. Yes, it can. Our home emergency generator produces a single phase 240 Volts. Here you have no unbalance-load problem.

Is 220V the same as 240V?

In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. … With electrical loads, the voltage will drop, hence the common reference to voltages below 120 and 240, such as 110, 115, 220, and 230.

Why is there no neutral on 220V?

120 utilizes a neutral to complete that circuit back to source (and ground)… 220 doesn’t ‘need’ neutral because each pulse uses the off phase of the other side for this purpose and AC back and forth but where is the circuit since the power is only looping back to the hot bars.

How far can you run 240 volt wire?

14 AWG100 feet10 AWG128 feet8 AWG152 feet6 AWG188 feet

Article first time published on

Can you plug a 120V into a 240V outlet?

Yes you can, but only on a 120/240-Volt Outlet. The new outlets should be 3 prong. Hot + Neutral + Ground. If you have not done other simple wiring tasks about the home, this might not be for you.

What does a 240 volt outlet look like?

How to Identify 240-Volt Outlets? The 240-volt outlets are larger than 120-volt outlets, and they have rounded tops with three or four holes. The top hole of an older three-prong 240-volt plugs looks like a backward ‘L’and the other two holes are diagonally placed on the sides.

How many wires does 240V single-phase?

Residential 240V outlets usually have three or four connectors, which provide two hot 120V wires and either a ground wire, a neutral wire, or both (see Figure 3). The neutral wire provides a way for the appliance to use just one of the hot wires for 120V appliances like a clock or fan.

Can I use 208v instead of 240V?

In short, just because a 208v motor may be designed to run on 230v or 240v systems by using two power legs from the utility source, that doesn’t mean that it will provide the same output efficiency. You will see differences in performance if you try to use 208v when 240v is typically required.

Is there such thing as 240 3phase?

240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads.

Do I need a 2 pole breaker for 240V?

A single pole breaker is typically used with 120-volt circuits, 15-20 amps. … A double pole breaker is primarily used with a 240-volt circuit, 20-60 amps and consists of two hot wires.

Can a 20 amp breaker handle 240 volts?

20-amp 240-volt circuit: 20 amps x 240 volts = 4,800 watts.

What is 220 Singlephase?

Most single-phase 220-volt alternating current (AC) motors are used for residential applications in well-water pumping or air-conditioning applications. Single-phase 220-volt AC motors are really two-phase 240-volt motors, especially when compared to three-phase 208-volt motors and single-phase 120-volt motors.

How do you hook up a generator to a house without a transfer switch?

1. Step 1: Create a Place for the Outlet Utility Box.
2. Step 2: Drill a Hole for Running Your Generator Cables to the Outlet.
3. Step 3: Install the Waterproof Box Outside Your Wall.
4. Step 4: Connect the Wire Into the Outlet.
5. Step 5: Connect Generator to Outlet and Test it.

What color is the grounding wire?

A grounded wire is required by the National Electrical Code to be white or gray in color on the customer side of the meter. Grounded wires on the utility side of the system do not generally have insulation.

Should I have 240V between neutral and earth?

Ideally, Neutral is at 0V and Earth is at Earth potential, which is also more or less 0V. Thus potential difference between Live and Earth will be approximately 240V, and that between Neutral and Earth will be 0V, i.e., they will be equipotential.

What happens if you connect neutral to ground?

Connecting the neutral to the ground makes the ground a live wire. The neutral carries the current back to the panel. But the ground doesn’t carry a charge, not unless something has gone wrong (such as a short circuit) and it has to direct wayward electricity away from the metal case of an appliance.

Can I plug a 220 volts appliance to a 240 volts supply?

Yes, any device that is classified in 240 volts and can be used in a 220V socket. If the rated voltage is 240 volts, the boxes can have a power supply of 208V, 220V or 240V.

Can I plug a 220V into a 240V?

Generally, any 220v appliance is safe to use at 240v. There will be a fractional increase in performance of electric motors for instance, as 240 volts falls into the 60 Hz range -screw a generator’s speed from 220 volts out put to 240 volts, measure the frequency and you have gained 10 Hz.

Can you run a 230 volt motor on 240 volts?

Most electric supplies in various parts of Europe vary from 200 volts to 240 volts, all appliances used in these countries are designed to work over these ranges, so it is quite safe to used something marked 230 volts on 240 volts. Yes – you can.

What is code for buried electrical wires?

Low-voltage (no more than 30 volts) wiring must be buried at least 6 inches deep. Buried wiring runs that transition from underground to above ground must be protected in conduit from the required cover depth or 18 inches to its termination point above ground, or at least 8 feet above grade.

What size wire do I need to run 300 feet?

for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit, …

How deep do you need to bury electrical wire?

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

What can you plug into a 240 volt outlet?

• Oven, range, or cooktop.
• Clothes dryer.
• Water heater.
• Central air conditioner.
• Electric car Level 2 charger.

Will 110V work on 240V?

You can’t run a 240 volt appliance on 110 volts because it simply won’t receive enough power to operate properly and you can’t run a 110 volt appliance on 240 volts because it will burn up..
