How do you test an ammeter

In moving-coil ammeters, movement results from the fixed magnets that are set to oppose the current. The movement then turns a centrally located armature that is attached to an indicator dial. This dial is set above a graduated scale that lets the operator know how much current is moving through a closed circuit.

How do I know ammeter is working?

In moving-coil ammeters, movement results from the fixed magnets that are set to oppose the current. The movement then turns a centrally located armature that is attached to an indicator dial. This dial is set above a graduated scale that lets the operator know how much current is moving through a closed circuit.

How do you test a motorcycle ammeter?

As a first check to make sure the ammeter is working and wired in correctly, turn on the headlight without the engine running. The needle should read between about 3 and 6 Amps to the left (depending upon the wattage of the bulbs and whether the bike is running 6 or 12 volt electrics).

Why is my ammeter not working?

To clarify this: In a multimeter, the current measurement function requires that you move one of the leads to (one of) the current measurement jacks. That jack will have a fuse in series with it somewhere within the multimeter. If the fuse is blown, the ammeter function will not work.

What does an ammeter tell you?

An ammeter measures the electric current in a circuit. The name is derived from the name for the SI unit for electric current, amperes (A). In order for an ammeter to measure a device’s current, it must be connected in series to that device.

Do ammeters have resistance?

An ammeter usually has low resistance so that it does not cause a significant voltage drop in the circuit being measured. Instruments used to measure smaller currents, in the milliampere or microampere range, are designated as milliammeters or microammeters.

How do you find the ammeter in a series circuit?

V=IR, here V is the potential difference across a resistance R through which a current I is flowing. The ammeter is connected in series with the circuit. So its reading will show the value of the current flowing in the circuit. Hence, the reading of the ammeter is equal to 1A.

What happens when you put an ammeter across a battery?

the current that in series with an ammeter is measuring a very small voltage drop in the meter. If one put the meter in current mode across a large voltage, the current would blow an internal safety fuse on the meter.

Does ammeter require battery?

I had the concept that in order to check the maximum current a battery can supply, it is fine to connect an ammeter in series with battery because ammeter has low resistance in series and this will yield the maximum current a battery can supply.

Can you use an ammeter on a battery?

An ammeter is connected in series with the battery. You could connect one probe of the ammeter to the negative post on the battery and the other to the heavy negative connector of the ground or negative cable that you disconnect from the battery. All the current travels through the ammeter.

Article first time published on

How do you use an ammeter on a car battery?

Start hunting by putting your ammeter in series with the battery’s ground circuit. Disconnect the battery’s ground cable and wire the ammeter in series between the battery terminal and the cable. Start with the meter on the highest range, probably 10 or 20 amps. Warning!

What is digital ammeter?

A digital ammeter is an instrument that measures the flow of an electrical current in a circuit. The measurements are given in amperes, the unit for measuring electrical current. … PDUs with digital ammeter displays report the aggregate current load on the device. This load reading is displayed in real-time.

How do you measure voltage with an ammeter?

The ammeter passes current through a small shunt resistor and measures the voltage difference across the shunt. The measured voltage is then divided by the known shunt resistance to calculate the current flow. The voltmeter measures a voltage difference across two points.

How do you connect an ammeter to a power supply?

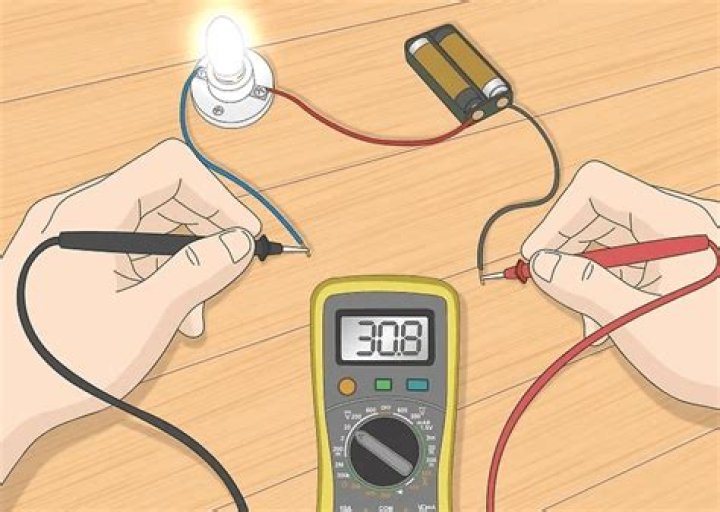

Connect the positive probe of the ammeter to the positive terminal of the power supply. Connect the negative probe of the ammeter to one end of a resistor. Finally connect the other end of the resistor to the negative terminal of the power supply.

What should be done if the ammeter reads in the reverse direction?

If the ammeter and voltmeter are showing deflection in a negative direction then the polarities are interchanged. So we to connect into proper terminal to get desired output.

What is hot wire ammeter?

Hint: Hot wire ammeter, as the name suggests, measures the value of current in a device based on the amount of heating it does. … The heat it produces is measured with the help of a wire; more the heat, more the current.

How do I know if my motorcycle battery is bad?

Visual Inspection. The most obvious warning signs can be found through a simple visual inspection. Signs of a bad battery include broken terminals, a crack or bulge in the plastic casing, as well as any leaking fluid or discoloration. Sometimes, battery terminals can become corroded.

How do you replace an ammeter with a voltmeter?

If you’re converting from an old ammeter to a voltmeter, you’ll need to wire it a bit differently. You can use the original wire by hooking it to the positive terminal on the voltmeter, but you must also run a wire from the negative terminal to a ground source.

What does an ammeter measure in a car?

Enterprises points out that amperage is a measure of current flow, so an ammeter is actually a “flow meter” that’s intended to measure current flow to the battery (under normal conditions) or discharge from the battery (in the case of alternator system failure).

Do I need an ammeter?

It needs to be accurate. An ammeter in the battery line indicates charging or discharging more assertively, and shows the important states clearly. Not charging, discharging or well charged (assuming the charge voltage is correct for the battery). With the engine/charger off it could show load current.

What if ammeter is connected in parallel?

When ammeter is connected in parallel to the circuit, net resistance of the circuit decreases. Hence more current is drawn from the battery, which damages the ammeter.

Who invented ammeter?

Ammeter was invented by Friedrich Dexler in the year 1884. An ammeter is used to measure the current in a circuit.

What is inside an ammeter?

Inside an ammeter there will always be a galvanometer and. A. A high resistance connected in series with it. … You have to apply the concept of parallel resistance and check the current flowing to which resistance and how it helps in the ammeter working.

How many terminals are in an ammeter?

Normally in a single range ammeter, there are two terminals. As per convention, the red terminal is positive and the black one is negative. If it’s a multi range ammeter, then the 0A side is positive and the other side is negative.

Which battery terminal do you remove to hook the ammeter in line?

It’s the same reasoning you employ when, while replacing the battery, you should always disconnect the negative terminal first and connect it last. For a current measurement, the meter will be in series with the circuit, so the probe leads are as live as any wire in the circuit.

What should a 12 volt battery read when fully charged?

When Fully Charged, How Many Volts Should A Car Battery Have? Fully charged automotive batteries should measure at 12.6 volts or above. When the engine is running, this measurement should be 13.7 to 14.7 volts.

How can you tell if your car battery needs replacing?

A slow starting engine. Over time, the components inside your battery will wear out and become less effective. …
Dim lights and electrical issues. …
The check engine light is on. …
A bad smell. …
Corroded connectors. …
A misshapen battery case. …
An old battery.
