How do you repack a spigot

You may find it wound around the valve stems on some compression spigots, such as your laundry taps or outdoor faucets, however. The graphite-impregnated string seals the faucet handle, so an indication that you need to repack the faucet is when water sprays from the handle when the faucet is open.

Can you repack outdoor faucet?

What is a faucet packing?

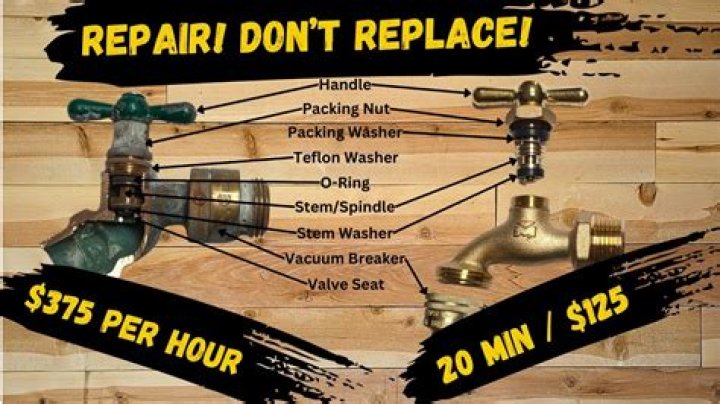

Typical outdoor faucet If a faucet leaks around the handle, you either have a loose packing nut or a bad packing washer. First try tightening the nut with a wrench or pliers. (The size and type of nut varies a bit with faucet styles.)

How do you repack a faucet valve?

Shut off the laundry faucet, then the street-side valve (in that order). Buy Teflon packing rope at any hardware store or home center. With the valve in the off position, loosen the packing nut and slide it toward the handle. Then repack the stem.

How do you seal an outside faucet?

Use caulk or canned spray foam to seal piping holes through the top plates, bottom plates, rim joists, and subfloor. …
For faucet pipes through exterior walls, install a rubber gasket or flashing around the pipe on the exterior wall, if possible, in addition to caulking.

What is graphite packing?

Graphite packing is a highly resistant sealant used in systems with valves, faucets, and stuffing boxes, as well as other machines with watertight mechanical parts. It can be applied either to static valve stems or to moving joints. … Its resilience makes it the perfect sealant for the fuel, chemical, and gas industries.

Which is better graphite or Teflon packing?

Graphite packings can be treated with PTFE to get better benefits such as preventing colour contamination, gaining better stability etc. Both graphite, as well as PTFE packings, are cost-effective as they bothare durable and require low maintenance.

What is Teflon packing?

PTFE Packing or Teflon Packing is braided with high purity PTFE (Polytetrafluoroethylene, Teflon) filament. … PTFE Packing can be used as a valve and pump packing material. It is especially good for corrosive media, high speed application, or applications that require clean and minimum contamination material.

What is valve packing material?

Valve packing is a string sealant that is used to prevent liquid leaks in valve stems and stuffing boxes. These strings are impregnated with PTFE ® or graphite to make them pliable, self-lubricating, and durable. … Aside from leakage prevention, valve packing protects valve stems and stuffing boxes from wear.

What is self forming valve packing?

Valve Packing is designed to put an end to leaky valves, which wastes both water and energy. … The self-forming packing will help return your valve to “like-new” condition. It has a universal design that can be used with many gaskets.

Article first time published on

How does a frost proof outdoor faucet work?

When a hose or other restriction is left attached, the water cannot drain from the faucet properly. As the temperature drops below freezing, the water in the faucet begins to freeze. The freezing conditions are applied from the outside of the house back toward the interior as the water continues to freeze.

What is faucet stem packing?

Simple! Bonnet packing is a ring shaped from fiber material, placed around a faucet handle stem to prevent and reduce leaks. If your faucet handles are leaking, you might need to replace your faucet stem packing.

Where is the packing nut on an outdoor faucet?

The packing nut is right beneath the handle of the faucet. If you turn the faucet handle so that water comes out of the faucet, the leakage around the packing nut will diminish or stop.

How do you seal a hose bib?

Dust the area around the pipe with an old paintbrush or handheld duster to remove dirt, dust and other debris.
Load a caulk gun with exterior grade caulking. …
Apply an even bead or cord of caulking material around the perimeter of the pipe.
Wipe the caulking smooth with your finger.

How do you seal an outside hole?

Step 1: Walk Around Your Home and Identify Problem Areas. …
Step 2: Use caulk to seal small cracks. …
Step 3: Fill larger gaps with steel wool and foam. …
Step 4: Use fine wire mesh to cover large openings.

Where do you find graphite?

Graphite is most often found as flakes or crystalline layers in metamorphic rocks such as marble, schist’s and gneisses. Graphite may also be found in organic-rich shale’s and coal beds.

What is the difference between Teflon and PTFE?

What’s the Difference Between Teflon™ and PTFE The simple answer is that they are the same thing: Teflon™ is a brand name for PTFE and is a trademark brand name used by the Du Pont company and its subsidiary companies (Kinetic which first registered the trademark & Chemours which currently owns it).

What is Rptfe?

Reinforced Polytetrafluoroethylene (RPTFE) is the standard seat used in most non-cavity Tru-Flo ball valves. … Polytetrafluoroethylene (PTFE) has excellent chemical compatibility for almost all applications.

How does a packing nut work?

A nut is a small piece of metal hardware, often hexagonal in shape, with a threaded hole in the center. A packing nut is a nut that is threaded onto a plumbing shaft. Its purpose is to hold packing in place, thereby creating a tight seal in the plumbing. Faucet leaks are often caused by loose packing nuts.

What is a globe valve?

A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.

How do you use valve stem packing?

Packing a valve stem requires as little as one or two rings in a rotating stem to as many as seven rings for a rising stem. The rings can be made from braided or a solid die-formed packing. Braided rings need to wrap around a mandrel and be butt-cut or diagonally cut (skive) at 45 degrees.

How does a stuffing box work?

All stuffing boxes work on the same basic principle: Rings of special wax-impregnated flax packing are wrapped snugly around the prop shaft and stuffed into a hollow packing nut that is screwed to the outside of the stuffing box housing. … Extend shaft life. Less opportunity for crevice corrosion.

What are graphite seals used for?

It’s possible to buy graphite for use as a gasket or seal. It’s also used as a coating for some metal gaskets, (Kammprofile gaskets are an example,) where it provides excellent sealing performance along with temperature and chemical resistance.

Do all valves have packing?

Regardless of type, all valves have the following basic parts: the body, bonnet, trim (internal elements), actuator, and packing.

What is a gland packing?

A stuffing box or gland package is an assembly which is used to house a gland seal. It is used to prevent leakage of fluid, such as water or steam, between sliding or turning parts of machine elements.

What is Teflon rope?

PTFE expanded Gasket Rope is a form of gasketing material. It is soft “marshmellowy” like cord that compresses to a thin, wide ribbon under pressure. … Pipe flanges part freely and surfaces need no scraping when the gasket is removed. No age deterioration. Resistant to all common chemicals and non-contaminating.

What is PTFE graphite?

PTFE graphite with a hardness of 60 shore D compounds of 15% graphite and 85% PTFE virgin and is available in dark grey colour. PTFE graphite has one of the lowest coefficient of friction and an improved conductivity. The wear properties are particularly excellent in operation with soft metals.

How do you tighten a spigot packing nut?

Tighten the packing nut on the spigot with an adjustable wrench until snug. Turn the faucet handle clockwise to close it off. Use the cut-off key to turn the water back on at the meter. Turn it slowly about 180 degrees anti-clockwise to turn the water supply back on.
