How do you read sparkplugs

The terminals are numbered either clockwise or counterclockwise, depending on which engine you are working on. For example, on a Chevy, the No. 1 terminal is at approximately 5 o’clock, and the No. 2 terminal is to its left, then the No.

How are the spark plugs numbered?

The terminals are numbered either clockwise or counterclockwise, depending on which engine you are working on. For example, on a Chevy, the No. 1 terminal is at approximately 5 o’clock, and the No. 2 terminal is to its left, then the No.

What do the numbers and letters on a spark plug mean?

The heat rating is a measure of the amount of heat dissipation. The heat range of a spark plug is the range in which the plug works well thermally. The heat rating of each NGK spark plug is indicated by a number; lower numbers indicate a hotter type, higher numbers indicate a colder type.

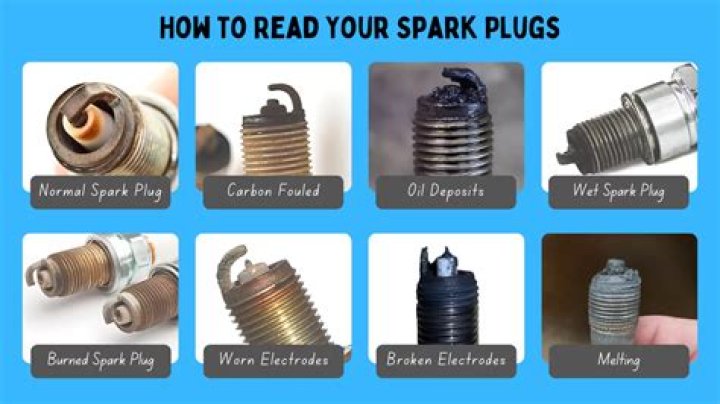

How do you read a lean or rich spark plug?

Good running conditions: If everything is good, the spark plug should have a tan/light brown color. Rich running conditions: If your engine is running too rich, the spark plug will be black and sooty. Lean running conditions: If your engine is running too lean, the spark plug will be white.

How can you tell a spark plug is bad?

1. Your car is a rough starter. …
2. Your car is a rough idler. …
3. Your engine will sometimes misfire. …
4. Your engine surges. …
5. Your fuel consumption is higher than usual. …
6. Your car isn’t accelerating as it should.

What does the R stand for in spark plugs?

[R] Resistor – If an R is present, this indicates a resistor type spark plug. Resistor type spark plugs reduce the amount of radio frequency interference (RFI) that can cause ignition misfires and static on the radio. [V] Shell Design – This refers to the thread size and reach of the spark plug.

How do you read a spark plug heat range?

The heat range of a spark plug is the range in which the plug works well thermally. The heat rating of each NGK spark plug is indicated by a number; lower numbers indicate a hotter type, higher numbers indicate a colder type.

What does NGK stand for?

NGK Spark Plugs was founded as a spin-off of the spark plug division of NGK Insulators. Originally, NGK supplied most of its products to Japanese automakers. In 2018 the company became a shareholder of aftermarket data firm TecAlliance. NGK stands for Nihon Gaishi kabushikigaisha, the Japanese name of NGK Insulators.

What thread pitch is a spark plug?

LetterThreadPitchA18mm1.50mmB14mm1.25mmC10mm1.00mmD12mm1.25mm

Are spark plug wires numbered?

First, lay out your new spark plug wires according to length if they’re not numbered (most will be numbered and most come in black, though you’ll also find them in blue, red, orange or yellow.

Article first time published on

How do you know which cylinder is number 1?

Most Common. In the most common method for cylinder numbering of a V8 engine, when facing the engine from the front of the car, the cylinder on your actual right side and closest to you is the number one cylinder. Then jumping to your actual left side, the closest cylinder to you is the number two cylinder.

How do I know if my spark plug wires are crossed?

When one or more spark plug wires are crossed, the engine may not run, or runs roughly as the timing of fuel/air compression does not align with the delivery of the spark.

Do I need a hotter or colder spark plug?

For NGK, Denso and Pulstar, the higher the number, the colder the plug. … When making spark plug heat range changes, it is better to err on the side of too cold a plug. Running too cold a plug can only cause it to foul out, whereas running too hot a plug can cause severe engine damage.

What a fouled plug looks like?

Oil fouling of a spark plug typically results in a shiny, black appearance. If enough oil is in the combustion chamber, the deposits can build up on the tip, porcelain or shell. If you can’t determine if it is carbon or oil fouling, smell the plug; it will smell like engine oil.

What number is a hotter spark plug?

The higher the number, the hotter the plug. The lower the number, the colder the plug. Starting with part # 24 (heat range 4), if you want a colder plug you would use part # 23 (heat range 3), for a hotter plug you would use part # 25 (heat range 5).

What is the difference between NGK and NGK R spark plugs?

Not sure if this has been answered but the only difference between the NGK and NGK-R is the R stand for resistor. It will supress electrical interference with electronics.

What is the difference between a hot and cold spark plug?

A spark plug is said to be “hot” if it is a better heat insulator, keeping more heat in the tip of the spark plug. A spark plug is said to be “cold” if it can conduct more heat out of the spark plug tip and lower the tip’s temperature. … A cold plug will not materially cool down an engine’s running temperature.

What is the difference between RC12YC and rc14yc spark plug?

Difference… the “14” is a bi… see more. Generac revised the “recommended plug” to this one from the RC12YC a while ago, hence it is included in their kits. Difference… the “14” is a bit hotter for easier starts, faster warm up, etc., with a larger center copper wire electrode.

How do you measure a spark plug thread?

1. M18 x 1.5.
2. M14 x 1.25.
3. M12 x 1.25.
4. M10 x 1.0.

How do I know what size spark plug I need?

The different types of spark plugs can seem overwhelming at first, but the simple way to find out what kind of spark plug you need is by checking your owner’s manual. The manual will specify the right plugs for your vehicle.

What does MP mean on a spark plug?

SparkPlugs.com: Manufacturer’s Numbering Systems.

Is NGK an OEM?

We partner with OEMs to develop the latest innovations, making NGK/NTK the supplier of choice for nearly every manufacturer. … NGK has built a reputation for quality and reliability with state-of-the-art facilities across the country.

Are NGK Spark Plugs made in France?

2015 – NGK Spark Plug has achieved a major milestone in its production facility in Meung sur Loire, France. The world’s leading manufacturer of spark plugs, glow plugs and Lambda sensors announced that the number of spark plugs produced in France since the inauguration of the plant exceeded 500 million units in June.

Are NGK Spark Plugs Made in USA?

In fact, a substantial number of NGK Spark Plugs and oxygen sensors sold in the United States are made right here in America. … With state-of-the-art manufacturing, inventory and distribution facilities, NGK is dedicated to providing our customers with the finest products and service possible.

How are the cylinders numbered?

Numbering systems for car engines The numbering system for cylinders is generally based on the cylinder numbers increasing from the front to the rear of an engine (See engine orientation below). … Cylinders numbered from front (#1 cylinder) to rear.

How do you determine which cylinder is which?

on an inline engine: the number one cylinder is located at the front of the engine, closest to the timing cover. on a v type engine: one cylinder head is slightly forward of the other, toward the front of the engine. cylinder number one is the forward most cylinder in that bank.

How do you tell the number 1 on a distributor cap?

1. Look on the distributor cap. Some manufacturers label the number one terminal.
2. Follow the wire from the number one cylinder to the distributor cap. …
3. You can also find the number one terminal by turning the engine manually until the timing marks on the camshaft and crankshaft are lined up.

What can faulty spark plug wires cause?

Bad spark plug wires can interfere with the electrical current flowing to the engine, making it difficult for the engine to complete the combustion cycle. An incomplete combustion cycle can cause an engine to misfire, which means your car may jerk, stumble, or briefly lose power.

What causes a high firing line?

6 on page 41 is a parade pattern that shows firing lines (spikes) much higher than normal. Electrically, this indicates high resistance that requires higher voltage to bridge the plug gaps. The cause could be worn or wide-gap spark plugs, a wide rotor air gap or a break in the coil lead.
