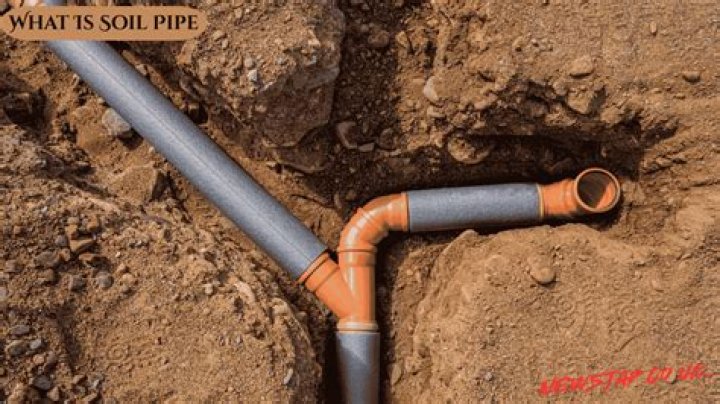

How do you lay a soil pipe

The trench specification shall be either: Trenches shall be excavated to a sufficient depth to allow a 100mm minimum bed below the underside of the pipe. Trench width shall be not less than the outer diameter of the pipe plus 300mm and not wider than necessary.

How deep should a soil pipe be buried?

The trench specification shall be either: Trenches shall be excavated to a sufficient depth to allow a 100mm minimum bed below the underside of the pipe. Trench width shall be not less than the outer diameter of the pipe plus 300mm and not wider than necessary.

Do you have to vent a soil pipe?

Soil vent pipes are a critical part of any drainage system. Without a vented pipe, a vacuum would build up behind the waste water as it moves down the pipe. This would force the water out of u-bends, in turn allowing foul odours and gases to enter the property.

What is the minimum fall for a soil pipe?

The most important bit of obvious advice ever: soil and waste pipes need to be on a downhill gradient! The “fall” or “drop” should be between 1/40 (1cm down for every 40cm across) and 1/110. Too steep (1/10) then the water runs quicker than the solids so doesn’t wash them away (ugh!).

How deep do drain pipes need to be?

Maintaining a depth of 12 to 18 inches is best for drain pipes, but the depth of the pipe may vary in order to maintain a downward slope, which is critical for proper drain functioning.

How many bends can you have in a soil pipe?

Bends. Bends at the base of stacks should be of long radius. Two 45° bends may be used as an alternative.

What is the difference between waste pipe and soil pipe?

At a very basic level, waste pipes are designed to carry just water and other liquids out of your home. … Soil pipes are pipes that are designed to carry “soiled” water from your home – that means any water, or substances, that were in a toilet, bidet or urinal.

Can bath waste go into soil pipe?

Both soil and waste pipes will run from your toilet, sinks, shower, washing machine, urinal, bidet and any appliance that voids water and join the soil stack. The stack will run directly into your underground drain.

What's the difference between GREY and brown soil pipe?

Grey pipe is UV stabilised so can be used where it is exposed to daylight. Brown is intended for undergound use.

How far can a soil pipe run?

longest run for horizontal soil is 6 metres, but what about when u add bends.

Article first time published on

Do you need planning permission to move a soil pipe?

Fitting, altering or replacing an external flue, chimney, or soil and vent pipe is normally considered to be permitted development, not requiring planning consent, if the conditions outlined below are met: … In a designated area the flue should not be fitted on the principal or side elevation that fronts a highway.

How high should a soil vent pipe be?

Soil pipe installation regulations Soil pipe Building Regulations state that the soil pipe is always placed above the highest water inlet into the pipe, and that the opening of ventilating pipes should be at least 900mm above any window in a dwelling that is within three metres of the pipe.

Can a soil pipe be inside house?

Soil vent pipes can be installed inside structures. With modern housing low-rise housing they are more often attached to the outside wall. In older properties, soil vent pipes were often made from cast iron, and some even contained asbestos, which now requires very careful handling during their maintenance.

Does every toilet need a soil stack?

As the new w.c. appears to be at the head of a single line the answer is yes. The purpose of a vent stack is to save the trap from being pulled out with the outflow with the resulting problem of drain stench in the toilet. It stops a syphon from forming.

Does a soil pipe have to be vertical?

A soil vent pipe (SVP), also known as a soil stack pipe, drain-waste-vent or ventilated discharge pipe, is typically a vertical pipe that removes sewage and greywater from a building. … SVPs must maintain sufficient downward slope along their length to keep liquids and entrained solids flowing freely towards the drain.

Do you need a stink pipe?

2 Answers from MyBuilder Plumbers. All bathrooms need a vent pipe otherwise there will be a possibility that the traps will be pulled when things like the toilet is flushed or the bath emptied. A Durgo valve can be fitted internally instead of having to extent the soil pipe outside.

How do you lay drainage pipe?

Step One: Mark Installation Area. Before you begin, clearly mark the path for the installation of the drainage pipe. …
Step Two: Dig a Trench. Dig a deep trench where you plan for the drainage to end. …
Step Three: Attach Pipe. …
Step Four: Fill Trench.

Which pipe is best for underground drainage?

Plastic pipes are the preferred drainage pipe due to its versatility and availability. It is lightweight and easy to use for installation. There are several plastic drainage pipes to serve different purposes and they come in various diameter sizes to accommodate different amounts of water.

How much slope do I need for drainage?

How Much Slope? The standard slope for proper concrete drainage is a one-quarter inch drop for every foot of length. So, to calculate the difference in height between one end of a patio or walkway and another, simply multiply the length by one-quarter.

Which pipe is used for soil pipe?

A soil vent pipe (SVP), also known as a soil stack pipe, drain-waste-vent or ventilated discharge pipe, is typically a vertical pipe that removes sewage and greywater from a building. Traditionally, soil vent pipes were made from cast iron; however, today they are most commonly made from uPVC.

What is a soil pipe used for?

Soil Pipes are designed to transport the soiled water (blackwater) from your toilet, urinal, or bidet (if you’re fancy). Waste Pipes are designed to transport the wastewater (greywater) from your sinks, shower, bath, washing machine, or dishwasher.

Can a drain pipe have too much slope?

The ideal slope of any drain line is ¼ inch per foot of pipe. … That’s right, it is possible to have too much slope in your drain lines. According to Redwood Kardon, a former plumbing inspector, “Oversloped pipes (greater than ½ in.

Why are soil pipe bends 92.5 degrees?

This 92.5 degree bend is used to change the direction of a PVC soil pipe. Most commonly used in a horizontal plane, the 92.5 angle gives a slight fall which creates a self-cleansing flow within the soil pipe.

Can a soil pipe have a bend?

as long as it has an adequate fall on it to the soil stack.

Can you run soil pipe above ground?

Soil and waste pipe is for gravity draining only, and is so tested to only 0.5 bar. Can above ground PVCu drainage pipe or fittings be installed underground? Above ground PVCu drainage pipe and fittings can only be used above ground.

Can you use black drainage pipe underground?

Black soil pipe will be fine mate, just ensure you use a slow radius bend at the base of the new SVP.

Why does my soil stack smell?

It is quite possible that the problem is a leak below ground level. Water from the drain leaks into the soil and your are smelling the results – mud mixed with sewage rotting. Such smells do come and go depending on things like temperature and air pressure/wind direction.

Does toilet waste and sink use same drain?

How sewers and drains work together. Your water system also has pipes and drains to take away waste. This includes the toilet waste pipe and pipes connecting to your sinks, baths and showers.

Can GREY water go into soil pipe?

If your soil pipe is already under the floor boards, then you should be able to connect your 40mm grey water pipes into it internally, i.e. you don’t have height/fall limitations.

How far can the toilet be from the soil stack?

Tie the waste line from the new toilet directly into the stack if the toilet is within six feet of the stack and the waste line is 3 inches in diameter. If the waste line is 4 inches in diameter, the toilet can be as far as 10 feet from the stack.

How long can a toilet pipe be?

The Toilet’s Trap Arm Length (aka Trap To Vent Distance). That’s right, no limitation! That means your fixture drain can have an unlimited distance (909.1). Keep in mind your toilet still needs a vent, but your trap arm can be as long as necessary.
