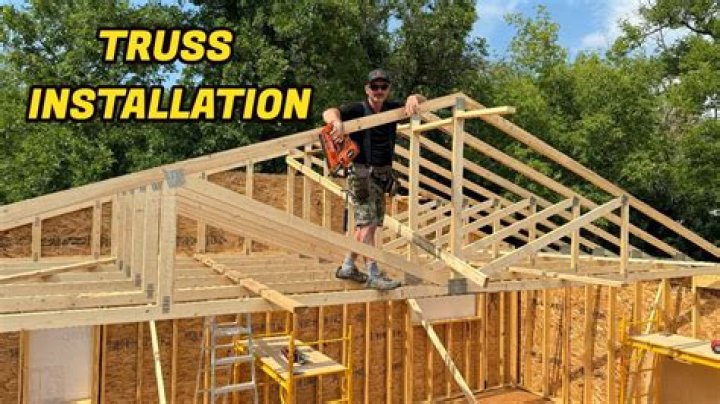

How do you install a truss

Typically, the contractor sets most, or all, of the trusses on the side of the roof opposite the location of Truss Number One. … Once in place, the workers nail the truss to the wall plate on both sides and attach temporary braces to hold the truss upright.

How are trusses attached?

Typically, the contractor sets most, or all, of the trusses on the side of the roof opposite the location of Truss Number One. … Once in place, the workers nail the truss to the wall plate on both sides and attach temporary braces to hold the truss upright.

How do you layout roof trusses?

Set the first truss, aligning with the outside edge of the wall and nail in temporary 16 penny nails through the truss and into the wall plate on each side. Have a helper hold the first truss in place and lay down two 22.5-inch 2-by-4 blocks, one on each end of the truss where it attaches at the wall plate.

What does a roof truss sit on?

The trusses are fist stacked on top of the walls, either by hand or with a crane. These trusses went up in about four hours. They are on 24-inch centers. The trusses are tied to the walls with small metal plates.

Can you screw into roof trusses?

It is possible to screw into your truss, but it’s risky. … However, only screw into your truss if it’s absolutely necessary, and consult the engineer who designed your attic before you do. You can remove a screw, but its mark will be there forever.

How do you reinforce roof trusses?

Apply construction adhesive along the edge of the truss to strengthen the connection to the plywood roof deck. …
Stiffen trusses by joining them with 2x4s running from one end of the house to the other.
Brace gable ends with diagonal 2x4s.
Connect trusses to walls with hurricane tiedowns.

Do roof trusses need support in the middle?

Generally, you don’t need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.

How do you install a truss connector plate?

Arrange the truss members on the ground. …
Lay the plywood truss plates at the connection of each truss. …
Hammer the truss plates into place with five 6 d nails on each connecting member.
Repeat the procedure for all connections on one side of the truss.

Are 2x4 trusses OK?

2×4 rafters are not strong enough for low pitched roofs under any circumstance, so avoid if you are building a shed with a flat or very shallow roof. … Lastly, remember that we are not talking about trusses in this article – just rafters. Trusses only use 2×4 lumber and are constructed using a “web” of 2x4s for strength.

How do trusses sit on a wall?

Stand the first truss on the end of the wall, flush with the outside end of the wall. Center the truss side to side so that the ends overhang evenly on each side. Nail through the bottom horizontal board of the truss on an angle into the top plate on each wall to hold it in place.

Article first time published on

What is the cut on the rafter that sits on the top of the wall?

What is a Birdsmouth joint or Cut? The Birdsmouth Joint (also called the birds beak cut or birds beak joint) is a small triangular shaped cut out at the base of a roofing joist that allows the joist to sit nicely on top of the wall plate (top of the wall before the roof starts).

How long does it take to install roof trusses?

In most cases, manufactured roof trusses can be installed within just one day. However, if you’re new to the process, it may be a bit of a learning curve.

Do I need a crane for roof trusses?

Lifting of trusses onto the wall plate In the majority of circumstances lifting of roof trusses should be undertaken by a mobile crane where a full pack can be lifted directly on to the wall plate. A lifting plan completed by an appropriately trained appointed person would be required for the lift.

Can you drill holes in trusses for wiring?

A truss cannot be drilled without authorization of a licensed professional engineer or the truss manufacturer. ”Truss members shall not be cut, notched, drilled, spliced or otherwise altered in any way without the approval of a registered design professional,” according to the International Residential Code (IRC R802.

Can you nail into trusses?

Trusses or rafters may be attached to walls with a minimum of three of any of the nails shown in the adjoining table as long as the uplift does not exceed 200 pounds. If you are using gun nails, you must use a minimum of a 16d gun nail. allowed provided the nailing does not damage the metal plates.

Is it bad to drill into shingles?

A shingle needs to lay flat against the roof to work properly. Even an underdriven nail, which is a nail that was not driven deep enough into the shingle, can cause problems. … A roofing professional will choose corrosion-resistant screws for this job, not just nails.

Is Birdsmouth cut necessary?

A lot of force is transferred down the length of the rafter, and the seat cut on the birdsmouth transfers that force directly to the top plate. … In general, while the ripped-strip installation does eliminate the need to make two cuts for the birdsmouth, it’s debatable whether there are any real labor savings.

What is a truss clip?

Truss Clip attaches girders, trusses and rafters to wall plates to provide wind restraint. They are used as allpurpose ties wherever one member crosses another. … They are especially designed for supporting trussed rafters.

Do I need blocking between trusses?

Blocking is not typically installed in most interior parts of the country because the truss-to- bearing connections and the relatively close roof sheathing attachment is assumed to be sufficient to prevent any movement. – A block may not be required in every space between trusses.

How far can truss go without support?

A roof truss can span up to 80′ without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40′ are the most common in today’s homes.

How far can you span a 2x4 truss?

A 2×4 can span a maximum of 6′ 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7′ 3” spaced at 16”, and 6′ 4” when spaced 24” apart.

What is the difference between roof trusses and rafters?

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

How do you add support to trusses?

Extra support for the trusses can be made by placing a 2-by-4-inch piece of lumber from each truss on one side to the truss on the other side, high enough to provide head room but low enough to provide support for the trusses. In this situation, the walls of a finished attic space or room would go with the roof line.

How much weight can roof trusses hold?

According to the IRC, the minimum live load capacity of a roof truss for non-sleeping areas should be around 40 pounds per square foot. Again, if it’s built for sleeping areas, it should be around 30 pounds per square foot.

How far apart should roof rafters be?

But they do tend to space rafters in one of several industry-standard increments, typically either 12, 16 or 24 inches apart. These spacing intervals are measured “on center,” meaning that the measurement is taken from the center of one rafter’s horizontal surface to the center of the next rafter.

Are trusses better than joists?

Floor trusses can span farther between bearing points than I-joists, allowing for larger open rooms. … Floor trusses can span farther between bearing points than I-joists, allowing for larger open rooms. This also reduces the need and cost for extra bearing posts, beams, and footings.

What is a Perling?

A purlin (or historically purline, purloyne, purling, perling) is a longitudinal, horizontal, structural member in a roof. In traditional timber framing there are three basic types of purlin: purlin plate, principal purlin, and common purlin.

Can floor trusses be used for roof trusses?

So “floor” trusses can be used in roof applications, and built on the same jigs as “normal” flatwise trusses, the only difference usually is that the end verticals are sloped and some kind of bearing block or other accommodation is made to allow the sloping truss to rest comfortably on the flat bearing surface.

What kind of nails do you use for trusses?

Use specified standard length common nails. 16d common and 10d common nails are 3-1/2″ and 3″ long respectively. 1-1/2″ slots allow for truss float. Do Not fully seat nails into truss when installing.

Are trusses cheaper than rafters?

Price: When the cost of a prefabricated truss package is compared to the material and labor costs to build rafters on site, the cost of trusses is 30% to 50% less.
