How do you fix a grab rail

Always mount grab bars into a stud that sits behind the wall. Or, if the stud can’t be located, use an anchoring device. Be sure there is adequate room within the hollow area behind the wall so an anchoring device will work. Grab bars can be placed vertically, horizontally or diagonally depending on your needs.

How should grab bars be installed?

Always mount grab bars into a stud that sits behind the wall. Or, if the stud can’t be located, use an anchoring device. Be sure there is adequate room within the hollow area behind the wall so an anchoring device will work. Grab bars can be placed vertically, horizontally or diagonally depending on your needs.

How high should grab bars be installed?

The ADA says that grab bars should be installed horizontally between 33 inches and 36 inches maximum above the finished floor to the top of the gripping surface (section 609.4). This is likely due to average height and common usage.

How do you find a stud in a fiberglass shower?

Use a stud finder to locate a stud on any wall that is drywalled in your shower room by placing the stud finder up to the wall, turning it on, and moving it slowly until it beeps. The stud finder will beep at the edges of the stud, so find each edge and mark the exact middle between the two edges.

How many grab bars are needed in a shower?

There should be a minimum of 3 grab bars in a standard shower stall. They should be position in the following spots: On the wall at the entrance to the shower stall. This is normally a small grab bar positioned vertically.

Do plumbers install grab bars?

ADA grab bars must be designed to have the ability to support 250 pounds of direct weight, and be installed by an experienced plumbing professional. The plumber must install the bar in such a way that it does not rotate or move, and provide continuous sturdy support for the individual that is using it.

Where do grab bars go in a shower?

Grab bars can be installed on the back wall and control wall of the shower stall. The ADA recommends that two bars be installed on the back wall, one 8 to 10 inches from the rim of the tub and the other parallel to it 33 to 36 inches from the base of the tub.

How do you find studs behind tiles?

1. Use a standard stud finder above the tile, and plumb down from it.
2. Use a special deep sensor stud finder than can go through tile.

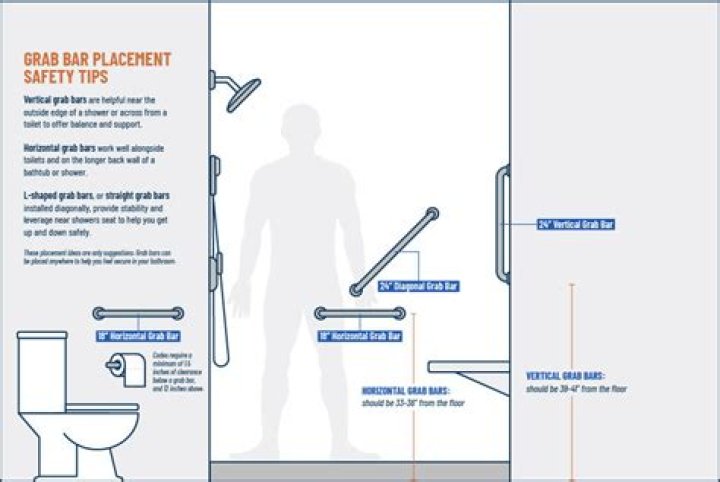

Where is the best place to put grab bars in the shower?

Shower Stall Grab Bar Placement Here are a few rules of thumb for where to place grab bars in your shower. Vertical entrance bar should go close to the shower door jamb. Horizontal bar should go along the side wall, 34-36 inches above the floor. Vertical bar on the faucet end wall should go near the faucet handles.

What type of drill bit is needed for ceramic tile?

What is the Best Drill Bit for Tile? A carbide-tipped masonry bit is the best drill bit to use for bathroom ceramic tile. Regular twist-drill bits can’t cut through the fire-hardened glaze.

Article first time published on

What makes a grab bar ADA compliant?

General Grab Bar Requirements Circular ADA approved grab bars have diameters of 1 ¼- 2 inches, and bars that are not circular have to have a cross-section of 2 inches and a radius around the bar of 4-4.8 inches.

How do you reattach a towel bar?

1. Remove the exiting towel bar from the wall.
2. Widen the holes in the wall to accept toggle bolts.
3. Insert the toggle bolts in the holes in the wall.
4. Tighten up the toggle bolts using a screwdriver.
5. Reattach the towel bar on the hanging hardware.

Can I glue a towel rack to drywall?

Whether your bathroom walls are drywall or tile, drilling new holes in them will only add to the damage. … Measure and mark the walls where your new rack will go. Apply glue to the back of the towel rack or its mounting brackets and press the rack firmly into place. Clean up any glue that seeps out before it dries.

Can you screw into a fiberglass shower?

If you strike plywood behind the fiberglass, you can drive in stainless steel screws instead of using toggle bolts. If you don’t hit plywood, drill 3/8-in. holes. When you’re drilling through the side of the surround where the shower valve is mounted, apply only light pressure as you drill.

Can you install grab bars on a fiberglass shower?

Molded fiberglass showers are not the easiest place to install a grab bar, they have space between the shower itself and the wall frame. … Once secured the mounting assembly attaches directly to the stud leaving a surface to which a standard grab bars can be attached.

How far should grab bars be from toilet?

A grab bar at least 36 inches long should also be installed behind the toilet on the rear wall. When installing the rear grab bar, it should extend at least 12 inches from the centerline of the toilet on the side closest to the partition and at least 24 inches from the toilet centerline on the open/transfer side.

What is the minimum turn around space for a toilet?

Most codes require at least 15 inches (measured from the center of the toilet) from any side wall or obstruction and not closer than 30 inches center to center to any other sanitary fixture. (The NKBA actually recommends 32 inches.) There should be at least 24 inches of clear space in front of a toilet or bidet.

How high should horizontal grab bar be in shower?

For horizontal grab bars, the ADA Standards require a height between 33 and 36 inches from the finished floor of the bathroom, shower or tub. It is helpful to use this range as a guide for placement, but the most important part is selecting a height that feels comfortable and secure for the person using them.

What height should shower grab bars be?

The grab bar(s) shall be mounted 33-36 inches (840-915 mm) above the shower floor measured at the entry. The controls shall be placed in an area between 38-48 inches (965-1220 mm) above the floor.

What is a ADA bathroom?

The Americans with Disabilities Act (ADA) has established minimum requirements for public restrooms and commercial bathrooms. … ADA bathroom layout guidelines are designed to protect people with disabilities and ensure that they have appropriate space in the public restrooms.

What is a transfer shower?

Transfer Showers Transfer type showers are a very specific type of shower defined by the 2010 ADA code as a 36″ by 36″ shower with a seat and grab bars and more specifically adhering to the following: Must be 36” from center points of opposing sides-no construction tolerance is stated in the code.

Is a vertical grab bar required for ADA?

Grab bars are required in accessible toilet rooms. The ADA Standards require horizontal grab bars on the rear wall and side wall of the water closet, but it does not specify a vertical grab bar. However, you will often see them while in a toilet room or in the accessible stall.
