How do you do scale factor

To find the scale factor, locate two corresponding sides, one on each figure. Write the ratio of one length to the other to find the scale factor from one figure to the other. In this example, the scale factor from the blue figure to the red figure is 1.6 : 3.2, or 1 : 2.

What does a scale factor of 2 mean in AutoCAD?

For example, a scale factor of 2 will increase the size to twice of its original value and a scale factor of 3 will increase the size three times.

How do you find the scale factor with coordinates?

In GPS, the Scale Factor is applied by dividing the distance between the coordinate and a base point by the Scale Factor. The coordinate is then set by starting from the base point and moving in the direction to the coordinate for the adjusted distance.

How are scale factor and scale different?

A scale factor is the ratio of the model measurement to the actual measurement in simplest form. Unlike a scale ratio, the scale factor does not compare different units of measurement.

How do I scale a drawing in AutoCAD 1 50?

Select the whole drawing.
Now select ‘Scale’ option.
In scale option, click reference.
Now for basepoint click the corner point and then for first point type 1 and press enter and then for second point type 50 and press enter.
Now your drawing is scaled to 1:50.

What does a 1/4 scale mean?

A 1/4″ scale means that each 1/4″ (inch) on the plan counts for 1′ (feet) of actual physical length. To scale a blueprint in imperial units to actual feet. multiply the measurement on the drawing (in inches decimal equivalent) with the denominator.

What is the scale factor of 1 4?

Drawing ScaleScale FactorViewport Scale1/4″ = 1′-0″481/48xp3/8″ = 1′-0″321/32xp1/2″ = 1′-0″241/24xp3/4″ = 1′-0″161/16xp

How do you find the scale factor of a triangle?

Divide one of the sides in the bigger triangle by its corresponding side in the smaller triangle to determine the scale factor for the smaller triangle to the bigger triangle. In the example, if you divided 40 by 20 you would get a scale factor of 2.

How do I find the scale factor of a dilation?

To find the scale factor for a dilation, we find the center point of dilation and measure the distance from this center point to a point on the preimage and also the distance from the center point to a point on the image. The ratio of these distances gives us the scale factor, as Math Bits Notebook accurately states.

What is a scale factor of 2?

For example, a scale factor of 2 means that the new shape is twice the size of the original. A scale factor of 3 means that the new shape is three times the size of the original.

Article first time published on

How do you scale a plot in AutoCAD?

Click Output tab Plot panel Plot. Find.
In the Plot dialog box, under Plot Scale, select the Fit to Paper option. The resulting scale is automatically calculated. The ratio of plotted units to drawing units in the custom scale boxes is displayed.
Click OK to plot the drawing.

How do I scale a drawing in AutoCAD layout?

Select the layout viewport that you want to modify.
Right-click, and then choose Properties.
If necessary, click Display Locked and choose No.
In the Properties palette, select Standard Scale, and then select a new scale from the list. The scale you choose is applied to the viewport.

How do I fix scale in AutoCAD?

With a calculator, divide the intended length by the measured length. Enter the SCALE (Command). Select a base point, such as 0,0,0. Enter the obtained scale factor to adjust all objects in the drawing model to their correct size.

What is a scale factor of 5?

The scale factor of 5 means that the new shape that is obtained after scaling the given (original) shape is five times the shape of the original shape.

What is the scale factor of 2 3?

The Scale Factor of 2/3 is the relative difference of one fraction or number (a) to another fraction or number prime (a′). In other words, 2/3 is what you multiply (number a) by to get (number a prime). In the calculator below, you can enter the multiplier (a) as a fraction.

What is the scale factor of 1 3?

A scale factor of 1:3 means that one triangle is 3 times bigger than the other, for example. So, if the small triangle has a perimeter of 27, the big triangle has a perimeter 3 times as big.

How do you calculate scale size?

To scale an object to a larger size, you simply multiply each dimension by the required scale factor. For example, if you would like to apply a scale factor of 1:6 and the length of the item is 5 cm, you simply multiply 5 × 6 = 30 cm to get the new dimension.

What is 28mm scale?

Figure heightScale footScale ratio20 mm≈4 mm≈1:76–1:7225/28 mm≈4.17 mm≈1:6430 mm5 mm≈1:61.032 mm≈5.33 mm≈1:57.2

What does scale 1.50 mean?

1:50 is a ratio. it means you’re scaling 1 unit to 50 units. that could be inches (1″=50″) or miles (1 mile=50 miles) or anything else, but it’s a direct scale.

How do you find the scale of a drawing area?

To calculate actual area based on a scale drawing, take each of the original dimensions and multiply them by the scale factor to get the actual dimensions. Then, use your knowledge of geometric figures to calculate the enlarged or reduced area.

How do you dilate by a scale factor of 2?

To dilate the figure by a factor of 2, I will multiply the x and y-value of each point by 2. I plotted all the new points to find the new triangle. To dilate the figure by a factor of 2, I will multiply the x-value of each point by 2.

How do you graph a dilation with a scale factor?

The scale factor, r, determines how much bigger or smaller the dilated image will be compared to the preimage. In order to graph a dilation, use the center of dilation and the scale factor. Find the distance between a point on the preimage and the center of dilation. Multiply this length by the scale factor.

What is an example of scale factor?

A scale factor is a number which multiplies (“scales”) a quantity. For example,the “C” in y = Cx is the scale factor for x. If the equation were y = 5x, then the factor would be 5.

What is the scale factor of triangle ABC?

For 2 similar triangles ABC and DEF, the scale factor of ABC to DEF is 2:3.

What is the scale factor of 10 cm 5m?

Application of the scale conversion calculator Estimate the scale factor, 10 cm / 5 m = 0.02 .

What does a scale of 2 1 mean?

A small object can be enlarged on the paper and drawn in 2:1 scale. This means the drawing of the object is twice as large as the object itself. Designers use an enlarged scale, such as double scale, on objects that are too small to draw full size with any meaningful detail.

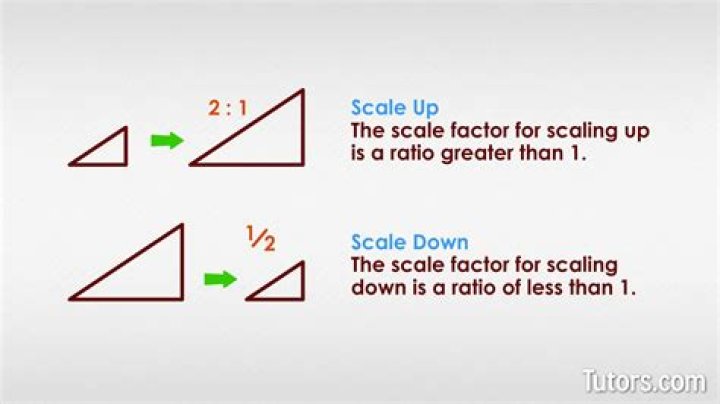

What happens if the scale factor is less than 1?

If the scale factor is less than 1, the dilated figure is smaller than the original, if it is greater than 1 the dilated figure is larger than the original.

How do I change the scale in AutoCAD?

Right-click the CAD drawing, point to CAD Drawing Object, and then click Properties. Click the General tab, and then select a scale setting using one of the following methods: If you want to drag shapes onto a CAD drawing, click Pre-defined scale, and then click Page Scale.

How do you scale a linetype in AutoCAD?

Use LTSCALE to change the scale factor of all linetypes for all geometry in a drawing. Changing the linetype scale factor causes a ‘REGEN’ so you can see the result of your changes straight away. If you only draw and plot from Model space, you can use LTSCALE to scale all your line types to suit your plot scale.

How do you scale and reference an object in AutoCAD?

Select the Scale command.
Select the desired object.
Specify the current distance.
Specify the new intended size.

How do you scale a drawing in layout?

Select Window > Scaled Drawing.
In the Scaled Drawing panel that appears, click Make Scaled Drawing.
Choose a scale.
(Optional) From the Length drop-down list, choose Decimal, Architectural, Engineering, or Fractional.
