How do you calculate PaO2

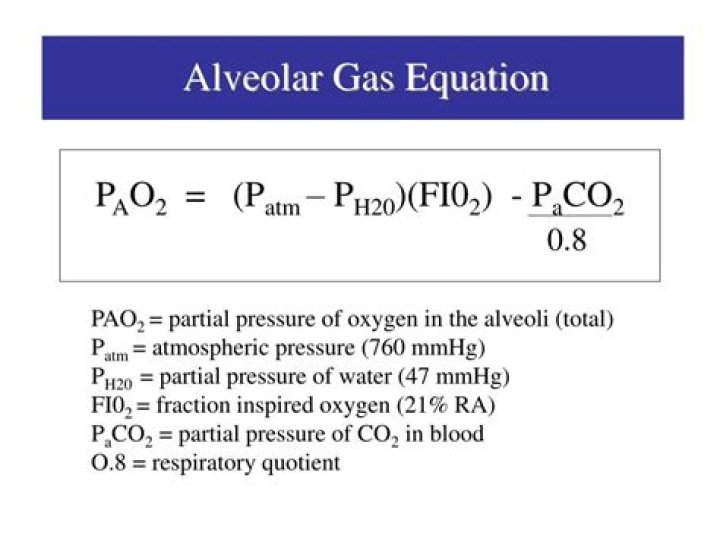

The alveolar gas equation is a formula used to approximate the partial pressure of oxygen in the alveolus (PAO2):PAO2=(PB−PH2O)FiO2−(PaCO2÷R)where PB is the barometric pressure, PH2O is the water vapor pressure (usually 47mmHg), FiO2 is the fractional concentration of inspired oxygen, and R is the gas exchange ratio.

Does pulse oximetry measure PaO2?

Pulse oximetry is one obvious monitoring tool to identify hypoxemia and hypoxia. I find that one frequent area of confusion relates to understanding the important difference between arterial partial pressure of oxygen (PaO2) and oxygen saturation (O2 sat).

Is SaO2 and SpO2 the same?

Conclusion: Oxygen saturation results determined of different ways are often not identical. The difference between SaO2 and SpO2 are often more 3 pp when SpO2 results obtained from fingertip less than 94%.

How do you calculate ABG from PaO2?

PaO2 should = FiO2 x 500 (e.g. 0.21 x 500 = 105 mmHg)
see caveats below.

How do you calculate PaO2 without ABG?

Look at your patient’s SpO2 > this will allow you to approximate both your patient’s PaO2 and P/F ratio. If your patient’s spo2 = 90%, your patient’s PaO2=60mmHg. If your patient’s spo2=99%, your patient’s PaO2=90mmHg.

What is the difference between ABG and pulse oximeter?

Arterial blood gas tests are invasive, requiring a blood sample, and provide information at a specific moment in time. Pulse oximetry is not invasive. It uses a sensor attached to the person’s finger. It can also provide continuous measurements of the amount of oxygen in the blood.

What should PaO2 be on 100 oxygen?

For example, at sea level with no additional supplemental oxygen and a normal physiological state, the PO2 inside the alveoli calculates at approximately 100 mm Hg. But, if a patient is given 100% oxygen in the same situation the PO2 can be as high as 663 mm Hg.

How do you calculate pO2 FiO2?

P divided by F = P/F ratio. Example: PaO2 = 90 on 40% oxygen (FIO2 = 0.40): 90 / 0.40 = P/F ratio = 225. A P/F ratio of 225 is equivalent to a pO2 of 45 mmHg, which is significantly < 60 mmHg on room air.

What is PaO2 SaO2 and SpO2?

SpO2 = oxygen saturation as measured by pulse oximeter. SaO2 = oxygen saturation as measured by blood analysis (e.g. a blood gas) PaO2 = partial pressure of oxygen in the blood, as measured by blood analysis. .dyspnea.

How do you calculate alveolar co2?

PACO2 = V’CO2/V’A
PACO2 = Alveolar Partial Pressure of CO2
V’CO2 = Metabolic Rate of CO2 production.
V’A = Alveolar Ventilation (ml/min)

Article first time published on

What is a PF ratio?

The P/F ratio is a simple way to assess the severity of hypoxemia. It’s the ratio of the PaO2 (arterial oxygen partial pressure obtained from an arterial blood gas) to the FiO2 (fraction of inspired oxygen expressed as a decimal).

Is PO2 the same as PaO2?

PO2 is just partial pressure of oxgen in a given environment, such as room air. … PAO2 is partial pressure of oxygen in alveoli. PaO2 is partial pressure of oxygen dissolved in (arterial) blood.

How do you calculate PaO2 SpO2?

Example: Suppose a patient on 40% oxygen has a pulse oximetry SpO2 of 95%. Referring to the Table above, SpO2 of 95% is equal to a pO2 of 80mmHg. The P/F ratio = 80 divided by 0.40 = 200. The patient may be stable receiving 40% oxygen, but still has severe acute respiratory failure.

What is pCO2 in ABG?

pCO2 stands for the partial pressure of carbon dioxide (acid). The normal range of pCO2 is 35 – 45 mmHg (with some variation for chronic CO2 retainers — think COPD). The HCO3 (bicarb) on an ABG is a calculated value.

How is venturi mask flow rate calculated?

Measure the total gas flow from a venturi mask. The amounts of air and oxygen that are mixed in a venturi to provide a specific oxygen concentration are expressed as a ratio (air:oxgen or a:o). The formula to determine the total gas flow from the device is: (a x L/min.) + (o x L/min.)

How do you calculate Aa gradient?

The A-a gradient has important clinical utility as it can help narrow the differential diagnosis for hypoxemia. The A-a gradient calculation is as follows: A-a Gradient = PAO2 – PaO2.

How do you calculate alveolar ventilation?

Alveolar ventilation is calculated by the formula: VA= R(VT-VD) where R is respiratory rate, VT is tidal volume, and VD is dead space volume.

What is PaO2 normal range?

Normal Results Partial pressure of oxygen (PaO2): 75 to 100 millimeters of mercury (mm Hg), or 10.5 to 13.5 kilopascal (kPa) Partial pressure of carbon dioxide (PaCO2): 38 to 42 mm Hg (5.1 to 5.6 kPa)

What is a good pO2 level?

Most healthy adults have a PaO2 within the normal range of 80–100 mmHg. If a PaO2 level is lower than 80 mmHg, it means that a person is not getting enough oxygen . A low PaO2 level can point to an underlying health condition, such as: emphysema.

Which is more important SaO2 or PaO2?

PaO2 is the most important (but not the only) determinant of SaO2. Other determinants of SaO2 for a given PaO2 are conditions that shift the position of the oxygen dissociation curve left or right, such as temperature, pH, PaCO2 and level of 2,3-DPG in the blood.

Is Sao2 or SpO2 more accurate?

ABGArterial Blood GasesSao2Saturation of Oxygen (arterial blood)Spo2Spot Oxygen Saturation

What is PA o2?

An ABG measures: Partial pressure of oxygen (PaO2). This measures the pressure of oxygen dissolved in the blood and how well oxygen is able to move from the airspace of the lungs into the blood.

What is pO2 and SO2?

It is important to understand the difference between the pO2, the oxygen saturation (often called SO2 or SaO2), the oxygen content and the oxygen delivery rate. The pO2 represents the partial pressure of oxygen or the gas tension.

What happens if PaO2 is high?

PO2 (partial pressure of oxygen) reflects the amount of oxygen gas dissolved in the blood. It primarily measures the effectiveness of the lungs in pulling oxygen into the blood stream from the atmosphere. Elevated pO2 levels are associated with: Increased oxygen levels in the inhaled air.

What is FiO2 on nasal cannula?

A traditional nasal cannula can only effectively provide only up to 4 to 6 liters per minute of supplemental oxygen. This equates to a FiO2 of approximately 0.37 to 0.45.

What is fi02 on a ventilator?

FiO2: Percentage of oxygen in the air mixture that is delivered to the patient. Flow: Speed in liters per minute at which the ventilator delivers breaths. Compliance: Change in volume divided by change in pressure.

How do you calculate AA ratio?

Information regarding the alveolar/arterial (A/a) gradient can be estimated indirectly using the partial pressure of oxygen (Po2) (obtained from blood gas analysis) in a simple mathematical formula: A/a gradient = Po2 in alveolar air (estimated from the alveolar gas equation) – Po2 in arterial blood (measured from a …

What is alveolar PO2?

1) PO2 in alveoli is 104 mmHg vs. 40 mmHg for the deoxygenated blood of the pulmonary arteries. … That means that PO2 in the pulmonary capillary blood = 104 mmHg. 2) PCO2 in alveoli is at 40 mmHg vs.

What is PAO2 and PACO2?

PaO2 = measured the partial pressure of oxygen in arterial blood. PaCO2 = measured the partial pressure of carbon dioxide in arterial blood.

What is FiO2 on Bipap?

FiO2 is defined as the concentration of oxygen that a person inhales. The air that we inhale on a day to day basis is made up of 21% of oxygen, 78% of nitrogen and 1% of trace elements such as argon, carbon dioxide, neon, helium and methane.

What is the normal range for PaO2 FiO2?

The New P/FP Ratio of 300 to 200 is mild, 200 to 100 is moderate and less than 100 is severe Adult Respiratory Distress Syndrome (ARDS) for all the different levels of PEEP values.
