How do I wire a dryer cord

Expose the Wire Connection Block. Locate the electrical cover plate on the back of the dryer. … Install the Cord. Insert the dryer cord into the hole near the terminal block. … Connect the Cord Wires. … Secure the Cord. … Reattach the Cover Plate.

What are the 3 wires on a dryer cord?

A 3-wire cord consist of 3 wires molded together. Looking at the cord end without the plug, the left and right wires are the hot wires and the middle wire is the neutral. In a 3-wire circuit, the neutral also acts as ground. The connections on your dryer should have three connection terminals.

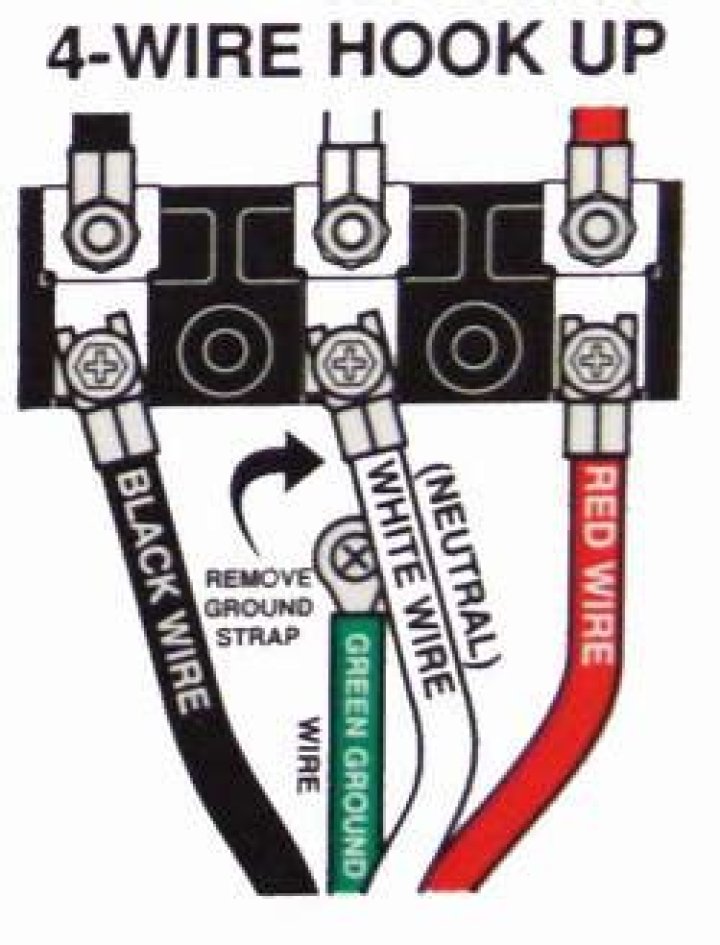

What are the 4 wires on a dryer?

In a 3-prong outlet, the ground and neutral wires are contained in the same prong. This has the potential to allow a current to find its way onto the ground wire. The 4-prong dryer cord is comprised of two hot wires, a neutral wire and a ground wire. This creates a separate return path for unused current.

Is there a wrong way to hook up a dryer cord?

The “definitively correct way” is to run a ground wire to the socket location (which you can, without needing to follow or replace the present Hot, Hot Neutral wiring, since the 2014 code cycle IIRC) and toss that 3-wire socket in the trash and use a 4-wire cord to a 4-wire plug to a correctly wired 4-wire socket.

Can you use a 4 wire on a 3 wire dryer?

Answer: You don’t. It is not possible to install a four prong outlet using only three wires either legally or safely. Put the three prong outlet back and install a new three-prong cord on the dryer.

How do you wire a 3 prong 220 plug?

Hold a three-prong 220 plug facing away from you with the two slanted prongs on top and the straight one on the bottom. Wrap the stripped end of the red, or hot, wire around the top left terminal and tighten the terminal screw firmly with all wire strands concealed under the screw head.

What wires go on a 3 prong plug?

Wiring a 3 Prong Plug The power cord has a white wire, green wire, and a black wire. The white wire is connected to the silver or light colored screw, the green wire is connected to the green screw and the black wire is connected to the gold or dark colored screw.

Are there different 4 prong dryer plugs?

But there are two different outlet styles and plug-in cord styles used for these 240-volt electric dryers. Some have three slots, designed to accept appliance cords with three prongs, while other outlets have four slots, designed to accept four-prong cords.

Where does the ground wire go on a 3 prong dryer outlet?

The screw on the top of the first picture was connected to a green wire on the cord. When touching the exterior of the dryer, this is used to ground the case and prevent shocks. There is no ground wire on the cord with the 3-pronged plug.

What happens if the dryer plug doesn't fit the outlet?

1. Replace the wiring from the dryer’s breaker to the receptacle with all new wires. 2. Replace the cord and plug for the dryer to match the outlet in the wall.

Article first time published on

Can you convert a dryer outlet to a regular outlet?

The answer is no in all likelihood. Most dryers use a 240 volt circuit, while the common domestic containers are 120 volts. If plugged into this outlet, the dryer does not work.

Where does the green ground wire go on a dryer?

Some dryers have a green ground screw in a different location, to the side of the terminal block or sometimes on the dryer housing. A green screw is for the ground wire, and that is where the green ground wire of the four-prong cord is connected.

How do you connect 4 wires to 3 wires?

Connect the ground wire of the 3-wire cable to the ground wire of the 4-wire cable. Connect the black wire of the 3-wire circuit to either the red or the black wire of the 4-wire circuit. The red and black wires are the”hot” wires. Either wire can be used to power a circuit.

Is it safe to change a 4 prong dryer to a 3 prong?

If you were to change from a four prong to a three prong and your dryer is designed to use 120 volts at some point, then that current will have to be returned on the ground leg. This is not acceptable by NEC code, nor is it safe.

Does 220 use a neutral?

120 utilizes a neutral to complete that circuit back to source (and ground)… 220 doesn’t ‘need’ neutral because each pulse uses the off phase of the other side for this purpose and AC back and forth but where is the circuit since the power is only looping back to the hot bars.

What are the Colours of wires in a plug?

WireColourLiveBrownNeutralBlueEarthYellow and Green

Which is neutral in 3 pin plug?

1. The LIVE wire is BROWN. This is connected to a fuse on the live pin. …
2. The NEUTRAL wire is BLUE. This is the route the electric current takes when it exits an appliance; it is for this reason the neutral wire has a voltage close to zero.
3. The EARTH wire is GREEN & YELLOW. and connected to the earth pin.

What wire should be used for 220?

A 30 Amp circuit is needed for most 220V tools. You will need to run a 10-2 to the outlet. 10-2 copper wire is usually good for up to 40 Amps on start loads and 35 Amps on constant load.

Do I need to ground a 3 prong dryer?

The old style of 3-prong dryer cords did not include a ground wire. Changes in the National Electrical Code now require dryers to be wired with a ground wire. … This is because you may have an old dryer and a new construction home or a new dryer and an old home.

Can I connect neutral and ground together?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.

What wire do you use for a dryer outlet?

The NEC requires that dryers have a dedicated circuit with a minimum of 30 amps. This calls for a 30-amp, double-pole breaker wired with 10 AWG wire.

Why do dryers not have power cords?

Power cords are sold separately from dryers and ranges because the electrical codes and outlets for these specific appliances vary to a high degree. There is no standard like there is for washers and refrigerators. ◾An electric dryer can use a 3-prong or 4-prong cord, while a gas dryer uses a 120 volt cord.

Can I use a 50 amp cord for a 30 amp dryer?

You should not use a device that requires 50 amperes on a circuit protected by a 30 ampere breaker. If you or the installers installed the wrong cord on the dryer, simply replace it with the proper cord.

Can you plug a dryer into a 110 outlet?

A 110-volt dryer plugs into any standard three-prong residential 120-volt outlet. … If you need more drying power than a 110V electric dryer can provide, but you don’t have a 220V outlet, consider a gas dryer.

Do you need a 220 line for an electric dryer?

The bottom line is that an electric dryer will need a dedicated 30-amp circuit that connects to either a 220, 240 or 250-volt outlet.

Can I use 220 wire for 110?

You can convert a receptacle from 220 volts to 110 volts in one of two ways. The first is to use a 220 to 110 adapter. The other is to rewire the receptacle or install a new receptacle next to the old one and connect it to the 220-volt wiring.

Where is the ground screw on a dryer?

Sometimes a green ground screw can be found on the side of the terminal block or on the dryer housing. The green ground wire of the four-prong cord is connected to a green screw.

Which is ground on 220 plug?

Connecting a 220-Volt Outlet All 220-volt outlets – no matter the current rating – have two hot terminals, which are brass, and a ground terminal, which is green. Most also have a neutral terminal, which is chrome. The black and red hot wires go on the brass terminals, and they are interchangeable.
