How do I measure pipe size

Many industrial pipe runs are long and varied. … Calculate the volume of one foot of 1-inch Schedule 40 steel pipe. … Calculate the length of the pipe by dividing its 9.24-gallon internal volume by 0.0449788-gallons/foot of pipe to yield 205.43-feet. … Define the pipe line in question.

What is the OD of 1/2 copper pipe?

Nominal Pipe Size inchesO.D.I.D.Type1/20.6250.5455/80.7500.6663/40.8750.785

What size is copper pipe in a house?

Copper pipe is commonly available in diameters ranging from ½ inch to 2 inches. Lengths of copper pipe are joined together with fittings, which come in many sizes and shapes, including: 90° elbows, 45° elbows, couplings, reducing fittings, and T-fittings. Fittings can be soldered or threaded onto the pipe ends.

Do you measure the inside or outside of a pipe?

When it comes to measurement of pipe, it is measure by the inside diameter, often called the nominal diameter. The difference between the inside diameter (ID) and the outside diameter (OD) is due to the thickness of the wall. … Wall thickness also determines the strength of the pipe.

How do you calculate number of pipes?

1. For a 1-inch pipe that measures 50-feet long:
2. radius = 1 inch ÷ 2 = . 5 inch. length = 50 × 12 inches = 600 inches. volume = π (pi) × radius squared × length. volume = 3.14159 × (. 5 x . 5) × 600. volume = 3.14159 × . 25 × 600. volume = 471.24 in³

What is the outside diameter of 2 and 1/2 inch copper pipe?

The tubing measures 2-1/2 Inches nominal size with an outside diameter of a 2-5/8 inches.

What is the outside diameter of three quarter inch copper pipe?

Copper 3/4-inch pipe, for instance, doesn’t measure 3/4-inch. Its outside diameter (OD) is 0.875 inch and inner diameter (ID) is 0.811 inches for Type M pipe (a designation that relates to wall thickness).

What is the circumference of a 1 inch copper pipe?

Nominal “1 inch” standard copper pipe has an outside diameter of 1.125″, which would make for a circumference of 3.534″. Nominal “3/4 inch” standard copper pipe has an outside diameter of 0.875″, which makes for a circumference of 2.749″.

Is copper pipe measured by ID or OD?

The nominal size of copper pipe is always smaller than the OD measurement. 1/2- inch pipe is the measurement of copper pipe that is 5/8 inch OD. The ID is affected by wall thickness.

How much water is in a 2 inch pipe?

Pipe SizeVolumeinin3/ftgallons/ft1 1/2“21.206 in30.0918 gal2″37.699 in30.1632 gal2 1/2“58.905 in30.255 gal

Article first time published on

How is pipe schedule measured?

1. Measure the outside diameter and the wall thickness of the pipe.
2. Refer to the pipe schedule chart and find the outside diameter.
3. Find the wall thickness in the corresponding column.
4. This will reveal the nominal pipe size and the schedule.

What is the standard pipe length?

Single random pipe length is usually 18 – 25 feet plain end or 18 – 22 feet threaded and coupled pipes.

How do you measure pipe diameter with a tape measure?

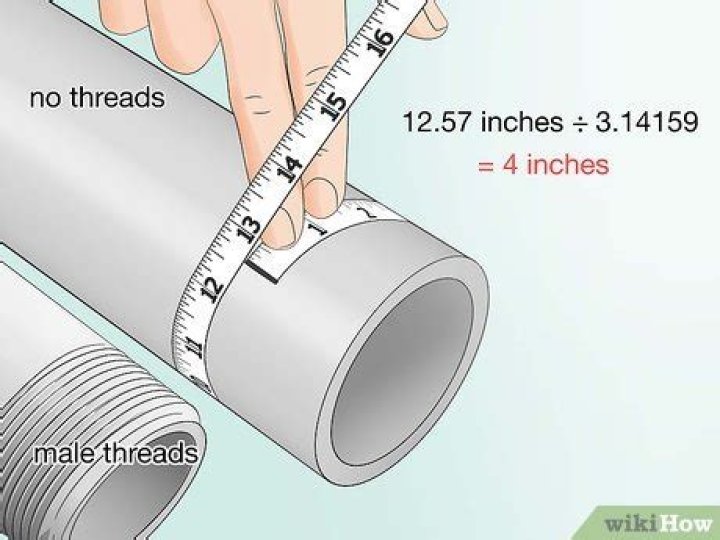

All you need to do is wrap a string or a flexible tape measure around the outside of the pipe. Now, take this measurement and divide it by pi (pi = 3.1415). This calculation is the plumbing pipe’s Outside Diameter that you can use to look up the Nominal Size.

What is the difference between copper pipe and copper tubing?

Tubing is usually more expensive than pipe due to tighter manufacturing tolerances. Interestingly, while the stated and measured OD’s of tubing are almost exact in most cases, copper tubing generally has a measured OD that is 1/8” larger than stated OD. As such, maybe it should be called copper pipe.

Is copper pipe measured inside?

The outside of the pipe is always larger than the inside. Therefore, a pipe is always measured from the inside.

How do I identify pipe threads?

Thread dimensions are based on the ID of the pipe. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. Measure the inner diameter (ID) of the female thread and the outer diameter (OD) of the male thread. This number will help determine the thread dimension.

How many gallons per minute can you get through a 2 inch pipe?

2-inch pipe: 850 gallons per minute. 3-inch pipe: 1,900 gallons per minute. 4-inch pipe: 3,400 gallons per minute.

How do you calculate how much water is in a pipe?

The formula for the volume of cylinder is: cylinder volume = π * radius² * height . For a pipe use its length instead of height: pipe volume = π * radius² * length , where radius = inner diameter/2 . The volume of a pipe is equal to the volume of a liquid inside (if a pipe is fully filled with it).

How many gallons is 8 pipe?

600 = 30,159.29 cubic inches. Hence the volume in US gallons is 30,159.29/231 = 130.56 gallons.

How do I know if my pipes are schedule 40 or 80?

Generally, schedule 40 pipe is white in color, while schedule 80 is often gray to distinguish it from 40. PVC is available in many colors though, so be sure to check labels when purchasing.

How is schedule 40 pipe measured?

PVC pipe sizes are given by the “ID” or Internal Diameter of Schedule 40 pipe. What does this mean? This means that for a standard, Schedule 40 PVC pipe, the PVC industry uses the measurement of the ‘hole’ inside the PVC pipe as its size. This is the measurement, from top-to-bottom of the inside of the PVC pipe.

What does Schedule 40 pipe mean?

Here are a few examples of this: Pipe size 1.000” Schedule 40 – The actual wall thickness is 0.133” or 3.378 mm. Pipe size 1.000” Schedule 80 – The actual wall thickness is 0.179” or 4.547 mm. Pipe size 2.000” Schedule 40 – The actual wall thickness is 0.154” or 3.912 mm.

How is metal pipe measured?

SIZE: And regardless of its material, steel tube is measured by its actual outside diameter (OD). For instance, the diameter of a 1 ¼” tube is a true 1.25″, while a 1 ¼” pipe is 1.625″. The wall thickness of thinner tubing is measured by gauge while thicker tubing is measured in fractions or millimeters.

What length is pipe sold?

The standard length for buying steel pipe is 21 feet. Anyone who works with steel pipe will be aware that it is generally sold in lengths of 21 feet. Although several theories exist as to why this is, the actual reason is most likely due to its manufacturing history.

What size should plumbing pipes be?

In most cases, the main pipeline from the street to your home is either 3/4 or 1 inch in diameter, supply branches use 3/4-inch-diameter pipe, and pipes for individual components are 1/2 inch. Remember that water pressure decreases by a half-pound per square inch for every foot pipes extend above your water supply.
