How do I import a MIB file

Import or, from the menu, click File > Import. In the Directory field, specify the location of the MIB modules that you want to import. To make MIB Manager parse all the MIBs found in available subdirectories, select the Traverse subdirectories check box. Click Import.

How do I update my SolarWinds MIB database?

1. Log in to your Orion Web Console.
2. Click Settings > All Settings > MIBs Management in the Details section. …
3. If an updated version of the MIBs database is available, click Download. …
4. After the download completes, run MIBs. …
5. Run the .

How do I save a MIB file?

1. Go to Administration → SNMP Service.
2. Click Smart Protection Server MIB to download the MIB file. A confirmation prompt displays.
3. Click Save. The Save As screen displays.
4. Specify the save location.
5. Click Save.

What is MIB in SolarWinds?

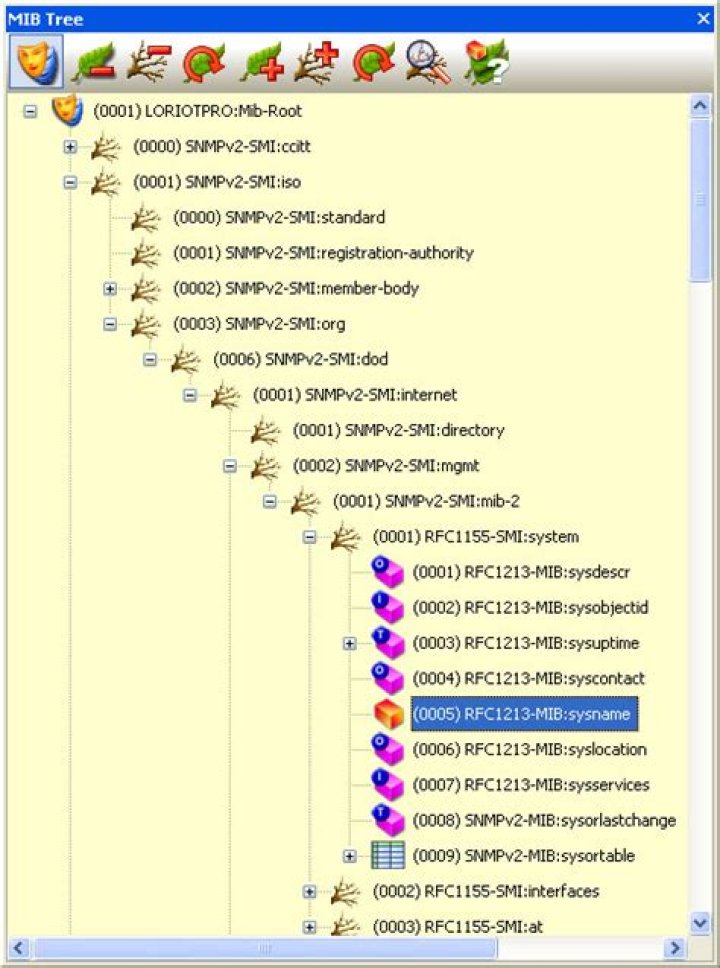

Management Information Base (MIB) is a structure that describes all objects a device can report on, such as CPU, fan, or temperature. MIB contains the name, datatype, and the object identifier (OID). MIB is a hierarchical structure, displayed as a navigation tree.

How do I add MIB to PRTG?

Choose the menu item “File | Import MIB File…” to load and convert the MIB file. the MIB file. Check the values that are displayed after the import. If everything is OK, then select the menu item “File | Save For PRTG Network Monitor” to save the new .

What is universal device poller in SolarWinds?

Universal Device Pollers allow you to create custom monitors for almost any statistic provided by SNMP based on the device’s MIB and OID that is outside of the standard monitoring parameters. Management Information … Get SolarWinds Orion Network Performance Monitor now with O’Reilly online learning.

What is a Sonicwall MIB file?

The MIB (Management Information Base) is a network standard based on vendor specific data catalogued and indexed for SNMP servers to understand the alerting and logging messages set for a specific vendor.

What is the difference between OID and MIB?

The raw data (e.g. hardware temperature) is called an ‘object’ that resides within the device in a database, i.e. Management Information Base (MIB), and every object (the device statistics that you are trying to poll) is uniquely identified with an object identifier i.e. OID.

What is an MIB number?

A mebibyte (MiB) is a unit of measurement used in computer data storage. The prefix mebi comes from the binary system of data measurement that is based on powers of two. A mebibyte equals 220 or 1,048,576 bytes.

How do I compile a MIB file in Windows?

To compile a single MIB file or module: Compile button in the Toolbar, or right-click on the file in the Project Tree and select ‘Compile’.

Article first time published on

How do I get MIB?

(Medical Information Bureau), complete one of the following options: (1) Call the MIB, Inc. toll-free telephone number at 1-866-692-6901 to make your request. OR, (2) Download this free MIB request form. Then mail the completed and signed form to “MIB, Inc.

Where can I find OID from MIB file?

1. Open an MIB browser, configure SNMP, and fill the required fields as in this document.
2. Click File > Load MIB.
3. In the Load a MIB File dialog box that opens, select the MIB file that contains the required tabular SNMP OID and click Open.

How do I download MIB files from Cisco?

You can download Cisco UCS MIB files in either of the following ways: • Using the file save feature in your browser from the list on cisco.com. Using passive FTP to access the MIB files on ftp://ftp.cisco.com. The SNMP support page provides a list of supported MIBs for each UCS release.

How do I convert MIB to OID?

1. Select ‘Import MIB File’ and import the downloaded Fortinet-Core-MIB and Fortinet-FortiGate-MIB files.
2. Once the files are imported successfully on paessler monitoring applications, the below message will appear. …
3. Then select ‘expand’ the MIB file and select the object to get OID from the list.

What is SNMP walk?

SNMPWALK is a Simple Network Management Protocol (SNMP) application present on the Security Management System (SMS) CLI that uses SNMP GETNEXT requests to query a network device for information. An object identifier (OID) may be given on the command line.

Where can I download MIB files?

Here, on the BestMonitoringTools.com you can download almost any SNMP MIB file from any vendors (Cisco, Juniper, HP, Mikrotik, Palo Alto, CheckPoint, Aruba, Fortinet/FortiGate, Synology, ZTE, VMware, etc.) and you can view 13 037 valid SNMP MIB files.

How do I enable SNMP on SonicWall?

1. Login to the SonicWall management GUI as admin.
2. Click on MANAGE, navigate to Appliance| SNMP.
3. Check the box Enable SNMP.
4. Click Configure button and supply the parameters for SNMP or keep the defaults for general configuration.
5. Click OK .

What is SNMP in SonicWall?

SNMP (Simple Network Management Protocol) is a network protocol used over User Datagram Protocol (UDP) that allows network administrators to monitor the status of the SonicWall security appliance and receive notification of critical events as they occur on the network.

How do I create a custom poller in SolarWinds?

Go to Settings > All Settings > Node & Group Management > Manage Pollers then click Create New Custom Poller. For Technology, select Node Details. For Vendor, select the vendor of the product that you want to add more data to. Select one of your nodes from that vendor.

How do I add a group in SolarWinds?

1. Click Settings > All Settings in the menu bar.
2. In the Node & Group Management grouping, click Manage Groups.
3. Click Add New Group.
4. Click Advanced to set the Status Rollup Mode, how often objects refresh in the group, or any custom properties. …
5. Manually or automatically select objects for this group.

What is UnDP in SolarWinds?

Create a Universal Device Poller (UnDP) to define a custom statistic to monitor. … On the Orion server, click Start > All Programs > SolarWinds Orion > Network Performance Monitor > Universal Device Poller to open the Orion Universal Device Poller.

How do MIB files work?

How Does MIB Work? The manufacturer of your device will supply you with a MIB file. You’ll load that file into your SNMP manager through the interface it provides. Your SNMP manager will use the provided MIB data to interpret the incoming messages from your new device.

What is a MIB report?

An MIB report includes information about your life insurance applications over the last three to five years. Information found on an MIB report includes: Date of any previous life insurance applications. Date of diagnosis or treatment for an illness. Known medical conditions.

Why MIB file is required?

Why do I need the MIB? Your SNMP manager needs it in order to process messages from your devices. Without the MIB, the message is just a meaningless string of numbers.

How do I read a SNMP MIB file?

1. Go to the MIB Compiler page (System > Tools > MIB Compiler).
2. In the MIB Compiler page, find the MIB you want to view. Select its information icon ( ).
3. The MIB Viewer modal page appears and displays the contents of the MIB file.

What does SNMP MIB stand for?

Each management station or agent in an SNMP-managed network maintains a local database of information relevant to network management, known as the management information base (MIB). The relationship between the management station, the agent, and the MIB is shown in the following figure.

Where is SNMP data stored?

SNMP data is stored in a highly structured, hierarchical format known as a management information base (MIB). The MIB structure is based on a tree structure, which defines a grouping of objects into related sets. Each object in the MIB is associated with an object identifier (OID), which names the object.

How do I get a MIB device?

1. Launch MIB Browser.
2. Enter the device’s Address.
3. Click Advanced. Populate the Read Community with the string in use on the device. …
4. Ensure the OID is set to start at .1.3 to capture all entries.
5. Change the Operations to Walk. This populates the Result Table.

How do you do a MIB walk?

1. Specify the host name or IP address for the device.
2. Specify the SNMP community string.
3. Select the SNMP tree to walk: Standard starts the SNMP walk from 1.3. 6.1. Private starts the SNMP walk from 1.3. 6.1. …
4. Click Walk.

How do I use Snmpwalk on Windows?

1. Download the tool.
2. Now extract the SNMPwalk software from the archive.
3. Open the command prompt.
4. Find the snmpwalk.exe file and drag it into the command prompt window.

Where are MIB files stored in Windows?

They are installed with the SNMP service in the %systemroot%\system32 directory. For a complete listing of MIBs, refer to the Windows Resource Kit.
