How do garage springs work

Torsion springs are typically mounted horizontally above the door opening. As the door comes down, cables that are attached to the bottom corners of the door cause the springs to wind up and this winding creates stored energy. When the door is opened, the springs unwind and the energy helps lift the garage door.

Can a garage door work without springs?

These springs are essential for opening and closing your garage smoothly, especially if you have two. This means that you shouldn’t use your garage door opener without any springs since residential openers don’t typically have much horsepower.

How do you know if your garage spring is bad?

1. Your Garage Door Won’t Open All the Way. A little troubleshooting can often solve this problem. …
2. Door Slams Down Quickly. Torsion springs balance the weight of your garage door, preventing it from closing too quickly. …
3. Appearance Changes in Springs.

Can you over wind a garage door spring?

To know how many times to wind a garage door spring, you need to use an exact formula. … Instead, they end up either overwinding or underwinding the torsion spring. Big mistake! Doing so will eventually ruin your garage door opener.

How do I raise my garage door with a broken spring?

1. 1 – Grab a Partner. …
2. 2 – Use Extreme Caution. …
3. 3 – Do Not Use the Opener. …
4. 4 – Disengage the Door from the Opener. …
5. 5 – Place Two Crowbars Under the Garage Door. …
6. 6 – Lift the Door. …
7. 7 – Clamp the Door. …
8. 8 – Use Ladders To Hold the Door Up.

How many times do I wind my garage door spring?

A rule of thumb with springs is that four quarter turns equals a full revolution and the spring needs to be tightened a full revolution for every foot of door height (e.g. 7-1/2 foot door = 7 revolutions +2 (30 quarter turns).

What does a spring do on a garage door?

Regardless of the type, your garage springs are responsible for helping the door raise and lower. When the garage door is lowered, the springs gain tension. When raising the garage door, tension is released and the spring assists with the lifting.

What happens if you put the wrong spring on a garage door?

When torsion springs are sized incorrectly, they can lead to safety issues. The garage door will not work as it should, and that could lead it to malfunction and potentially endanger users.

Which way do you wind a garage door spring?

This is pretty easy to determine. Basically, door springs can either wind to the left or to the right. Right-hand winding springs wind in a clockwise manner with the end wire on the right, while left-hand winding springs go anticlockwise with their end wire on the left.

What happens when a garage door spring breaks?

If the spring on one side of the garage door is broken, this might cause the door to become crooked as it moves up and down on its track. When the spring breaks, the entire system is thrown out of sync. The pulleys and cables might become loose and be left hanging down from the ceiling.

Article first time published on

How long does a garage spring last?

How long do garage springs last, typically? The average garage door spring, if correctly installed, should last about 10,000 cycles of opening and closing. If you only go in and out of your garage once a day, that means you should expect a broken garage door spring around 14 years after the spring is first installed.

How often should you change garage door springs?

A standard garage door spring should last between seven and 12 years before the stress it experiences through usage requires it to be replaced. You can reduce the risk of garage door spring damage by applying a small amount of spray lubricant to the garage door’s components twice a year.

How do I know if my torsion spring is broken?

1. Usually the automatic garage door opener will not open the door.
2. When you disconnect the opener and raise the door manually, the door won’t stay in the up position.
3. You will see the split in the spring when viewing it.

Can I manually open my garage door if the spring is broken?

If your garage door has a broken spring and you must take your cars out of the garage or open it for any reason, the best and safest thing to do (although not recommended) is to open it manually. Use Extreme Caution! Disengage the door from the opener, and carefully lift the door up.

Is it hard to replace a garage door spring?

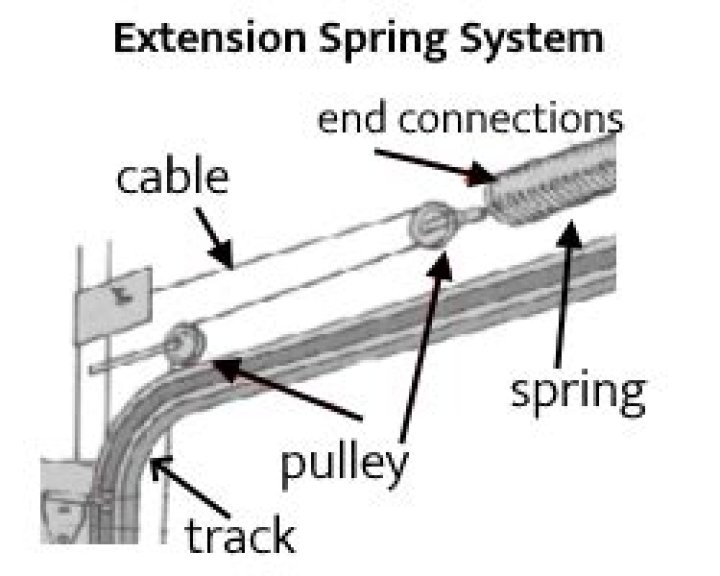

Extension springs are generally considered much easier to replace. You can completely remove and replace the springs on your door without dealing with any amount of dangerous tension. Once you open the door, the springs will lose most of their tension and should be safe to work with.

Can I replace just one garage door spring?

Yes. You may be tempted to save money on parts and labor by replacing just one spring, but you’ll likely need to replace both when one spring breaks. Garage doors have two springs, one on either side of the door. The springs exert the force that makes the door light enough to be lifted.

How do you stretch a garage door spring?

Wind the spring as many turns as is recommended by the supplier. Using a hammer, tap the winding bar to stretch the spring out ¼-inch. Tighten the set screws on the winding cone. Lubricate the spring with garage door lubricant, then remove the clamp from the garage door.

What does it cost to repair a garage door spring?

Garage Door Springs Cost Garage door spring repair costs an average of $250 for both materials and labor with a typical range between $150 and $350 which includes replacing two springs. For multi-door garages or installs needing other components replaced, you might pay up to $500.

Is the spring part of the garage door track assembly?

Spring Assembly Hardware used to make up the garage door counterbalance assembly. WARNING: Springs are under extreme tension. We strongly recommend leaving any necessary repairs to trained professionals. Spring Balance The amount of turns necessary to counterbalance the weight of the garage door.

Why does my garage door pull to one side?

If you’re wondering why your garage door shifted to one side, the probable reason is you have a rusted or broken spring. This problem can happen due to misaligned rollers, heavy rain, and worn cables. When you realize that your garage door is shifted to one side or crooked, you should repair the door right away.

Why is my garage door not level?

The most common cause of an uneven garage door is worn out cables that sag, so checks to make sure your cables are still in good condition. If not, you may need to call a professional to replace them.

How do I know if my garage door is balanced?

1. Close the door from the inside.
2. Detach the garage door from the opener using the red manual release rope.
3. Move the door open and closed manually.
4. Then lift the door halfway and release. If it stays in one place, it is properly balanced. If it closes or snaps open, the door is off-balance.

Why does my garage door only have one torsion spring?

If you only had one, the door would be lifted unevenly. In short, order that uneven pressure would create all kinds of problems. But because the torsion spring sits on the wall above the center of the door and runs parallel to the door, you really only need one.

Can I use a larger torsion spring on my garage door?

If your garage door springs have lasted less than five years, or if you plan to live where you are for many years, you may want to try the extra long life torsion springs. By using larger springs, you can, in most cases, quadruple your spring life while only doubling the cost of the springs.

How do you tell if a garage door spring is left or right?

In most cases, you can determine the wind of your garage door torsion spring by using the color-coded system on the cones at the end of the spring. Usually, you will have two springs on your door, which will be color-coded. In MOST (not all) cases, the end on the right hand wind is red and the left hand wind is black.

Do torsion springs work in both directions?

Torsion springs are helical springs that exert a torque or rotary force. … Depending on the application, a torsion springs can be designed to work in a clockwise or counter-clockwise rotation, thus determining the direction of the wind.

Which way do you turn torsion springs?

For a correct solution, a right-hand wound torsion spring should be mounted on one side, and a left-hand wound one on the other. A torsion spring must always be loaded in the direction of the spring wire so the spring body closes.

How much force should it take to open a garage door?

A 1/2 horsepower garage door opener can lift approximately 300 pounds, which is the average weight of a two-car steel door. A one-horsepower opener can easily lift approximately 400 pounds. The greater the horsepower, the faster the opener can lift the door, although some are designed to lift faster than others.

Why does my garage door have 2 different size torsion springs?

At times the garage door may be designed to take advantage of two different size springs which ensure optimal balance. … If the springs aren’t exerting enough tension, then the door is way to heavy to open, and it will slam shut each time.

What does it sound like when a garage door spring breaks?

Loud Breaking Noise One of the most alarming noises you can hear is the unmistakable sound of a torsion or extension garage door spring breaking in your garage. It can be best described as sounding like a shotgun going off. The best way to determine that your garage door spring has broken is hearing the loud noise.

Do torsion springs wear out?

There is no hard and fast rule for how long torsion springs will last. … But if you have a very heavy garage door, the springs could wear out after only four years. You can check the springs themselves for signs that they are weakening. If you notice gaps between the coils of the springs, they may need replacement.
