How do duplex outlets work

A duplex outlet has two receptacles to use for power. A duplex receptacle outlet is very similar to a single outlet where it can be TR, WR, or both! … A duplex outlet can also handle different voltages (V), whether you need 125V for your washing machine or 250V for your electric dryer.

Is a duplex outlet considered 2 receptacles?

Although a duplex receptacle is installed and mounted by one strap or yoke, it is considered two receptacles. A branch circuit supplying only a duplex receptacle and no other device is not an individual branch circuit. … The load calculation for a duplex receptacle is 180 volt-amperes.

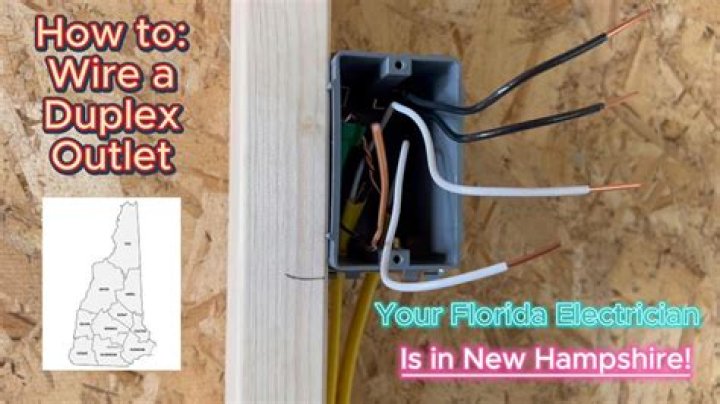

How is a duplex outlet wired?

Wiring a duplex receptacle at circuit end Just attach incoming wires directly to the receptacle as shown in the photo at far right. As with pigtail wiring, connect the ground wire first, then the neutral, then the hot wire. The preferred way to wire a mid-circuit receptacle.

What does duplex mean on an outlet?

A split outlet is a duplex outlet, or receptacle, with one half of the outlet that has power all the time and one half that is controlled by a switch. If you have a bedroom that has no overhead light, chances are at least one of the receptacles in the room is a split receptacle.

How can a duplex receptacle be converted to a split wired receptacle?

Wiring at the Receptacle Box Make sure the duplex receptacle has been “split” by breaking or removing the bonding strip on the hot side of the receptacle. This effectively severs the receptacle into two independent halves. Do not sever the bonding strip on the neutral side of the receptacle.

Where are electrical receptacles not permitted to be located?

For example, a sun-room in a dwelling has no wall space because of floor-to-ceiling windows. Receptacles are not usually installed in the ceiling because receptacles located more than 5.5 feet (1.7 meters) above the floor cannot be counted as required receptacles.

What does half hot outlet mean?

A half-hot (or switched) outlet is a duplex outlet that has one half permanently “on” or ready to provide electricity while the other half can be turned off and on via an ordinary wall switch.

What is the highest you can install a duplex receptacle and have it count as a receptacle for wall space?

Receptacles must be installed so that no point measured horizontally along the floor line in any wall space is more than 6 feet or 1.8 meters from an outlet in that space.

How many receptacles make up a duplex receptacle?

Since each duplex is 180 VA it can also be counted as 180 * 6 = 1080 VA. The long power strips that you are used to with 10 or 12 outlets is commonly called plugmold. In the NEC it is referred to as a fixed multioutlet assembly.

Is a duplex receptacle considered a single receptacle?

Since a duplex receptacle contains two contact devices, it is a multiple receptacle, not a single one.

Article first time published on

What's the difference between a duplex outlet and a regular outlet?

Single electric outlets can work for both a 120V single outlet for small appliances, such as a power tool, or 220V outlet to connect an AC unit. A duplex outlet has two receptacles to use for power. A duplex receptacle outlet is very similar to a single outlet where it can be TR, WR, or both!

Is a duplex receptacle two contact devices on a single yoke?

A duplex receptacle is a single contact device with no other contact device on the same yoke or strap.

Why is there a red wire in my outlet?

In a three-conductor cable, the extra wire is red, and it’s almost always used as a hot wire. When you see a red wire in a 120-volt duplex outlet box, it’s usually because one of the outlets is operated by a wall switch, while the other is always on. The red wire is for the light switch.

When wiring an outlet which side is hot?

White (neutral) goes on the side allocated for the larger prong. Black (Hot) goes on the smaller prong side or white to silver screws, black to gold screws. Ground (bare wire) to green.

What happens if you wire an outlet backwards?

In a correctly wired outlet, electricity will flow to the switch; with reversed polarity, it will be present in the item itself even when it is not turned on. In either case, the item will not function until the switch is flipped to close the circuit.

What does double pole mean?

Double pole switches are connected to two separate electric circuits. … They essentially contain 2 switches which are linked together and can complete the circuit either simultaneously or staggered.

Can you turn a single light into a double?

A single light switch that controls two fixtures, such as two lights or a light and a bathroom or ceiling fan, can be converted to a double light switch that allows you to operate each fixture independently. … You’ll need a screwdriver, a pair of wire strippers, a double switch plate and a voltage tester.

Does the hot wire go on the top or bottom of a switch?

The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.

Why does an outlet have 4 screws?

Duplex receptacles have (4) screws for termination points along with a green screw dedicated for ground. … The hot side of the circuit (black wire) should be wired to the brass screws while the neutral side of the circuit (white wire) should be wired to the silver screws.

What is the purpose of the break off tabs between the terminals on a duplex receptacle?

A thin, metal break-off tab connects these screws. This tab enables you to attach a single wire to either screw and feed electricity to both outlets of the receptacle. If the tab is broken off, you can connect the upper and lower outlets to separate wires and control them independently.

What is a multiwire circuit?

A multiwire branch circuit is a branch circuit with a shared neutral. This means there are two or more ungrounded (hot) phase or system conductors with a voltage between them and a shared neutral.

How do I keep an outlet hot all the time?

The easiest way to convert a half-hot duplex receptacle or a switched outlet to be hot all the time is really not that difficult. The wall switch simply has a loop of the hot wire going through it, so if the switch was removed and the wires were connected together then the wall outlet would be hot all the time.

Can I connect red and black wires together?

Red Electrical Wires These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

How far apart can receptacles be?

The maximum spacing between receptacles, according to the National Electric Code (NEC), has been set at 12-feet since 1956–with no point along a wall being more than 6-feet from a receptacle. The logic behind that number is that an appliance with a standard length cord could then be plugged-in anywhere along the wall.

How far should electrical outlets be spaced?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line.

How many outlets can be lighted on one branch?

Although there’s no limit on the number of lighting and/or receptacle outlets on dwelling general-purpose branch circuits, the NEC does require a minimum number of circuits to be installed for general-purpose receptacles and lighting outlets [210.11(A)].

How many duplexes can you have on a 20 amp circuit?

A duplex is 2 outlets for code purposes. Per the NEC: A1 For commercial occupancies, the NEC requires each receptacle outlet to be calculated at 180 VA [220.14(I)]. Therefore, the maximum number on a 20A circuit would be 13.

How many plugs can you run on a 20 amp breaker?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How many amps is a duplex outlet?

The most common electrical outlets are 15-amp duplex receptacles — 15-amp outlets are designed to accept standard plugs for most small appliances and lamps. If you want to replace an outlet, simply turn off the power to the outlet and remove it.

Should electrical boxes be flush with drywall?

When you install an electrical box, make sure it is flush with the surface of this drywall strip; this will ensure the boxes are at the proper depth when the walls are finished.

What is code for distance between outlets?

Wall receptacles serve spaces for 6 ft. on each side of receptacle. Therefore, max. spacing between wall receptacles is 12 ft.
